Lever citrus juicer „Santos“ #70 Evolution

Lever citrus juicer, 50 L/h

The „Santos“ #70 Evolution is a lever citrus juicer adapted to intensive use. It has an average output of 50 L/h and a 300 W motor.

What it is for

With one universal cone you squeeze oranges, lemons, limes and grapefruit, then serve the juice fresh or use it in fruit cocktails, punches and syrups.

The duty cycle is 5 minutes on and 5 minutes off (EN 60335-2-64) — the time it takes to squeeze the juice and then prepare and serve the drinks.

Lever, cone and high spout

You squeeze each fruit half in about five seconds: while you press the lever, a patented clutch couples the cone to the running motor, and when you release the lever the cone stops.

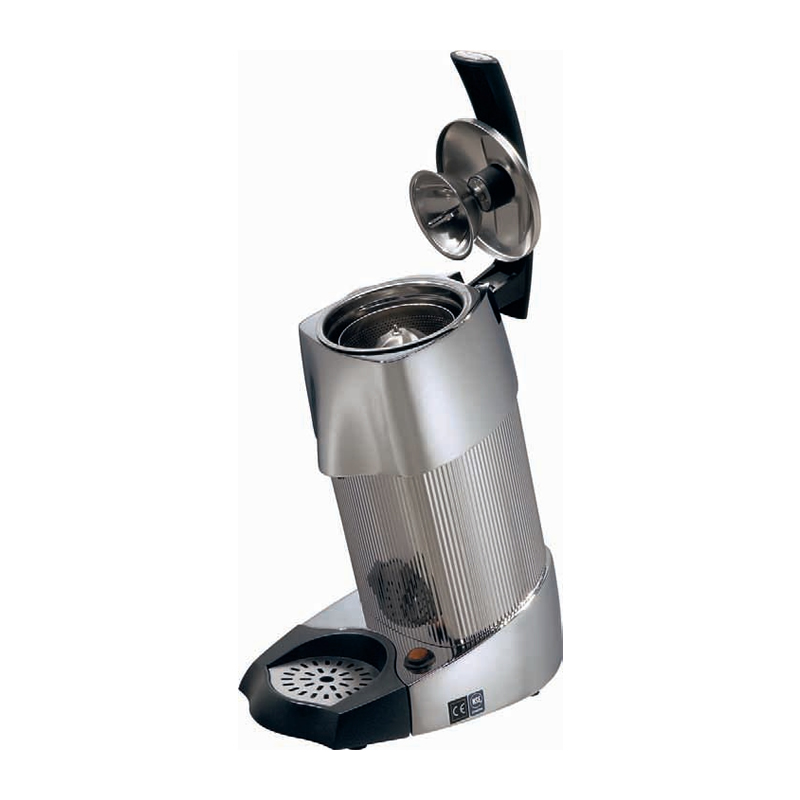

The pressing cup sits on an articulated, ergonomic lever and presses the fruit half onto the cone.

You squeeze straight into a glass or jug up to 220 mm tall, standing on a removable drip tray with a grid.

Stainless steel and quiet running

The juicer is quick to clean: the cone, pressing cup and bowl come off and are made of stainless steel. Materials in contact with food comply with Regulations (EC) No 1935/2004 and (EU) No 10/2011.

You squeeze juice at the bar, in front of your customers: the flexible splash guard on the lever dampens the noise, the seals reduce vibration, and the noise level is 65 dB(A) at 1 m.

The juicer is built to last: made in France, it carries the „Longtime®“ label for robustness and durability. The body is painted cast aluminium, the asynchronous motor has thermal and overload protection, and the waterproof switch has an indicator light.

Comparison

The #70 Evolution is our citrus juicer for larger volumes: 50 L/h on average, a cone that takes grapefruit and a spout high enough for jugs.

If 30 L/h and glasses up to 135 mm are enough, choose the „Santos“ #10; to squeeze pomegranates as well and start the motor with the lever itself, go for the „Bartscher“ CS1.

Installation and connections

• Power supply: single-phase 220–240 V, 50/60 Hz (it runs on either frequency), 300 W. The power cord and plug are fitted — plug the juicer into its own earthed socket on a circuit protected by a residual current device (RCD) and a 16 A fuse.
• Location: a bar counter or worktop indoors, away from sources of heat, sloping by up to 10°, with all the feet resting on it.
• Dimensions and weight: 240 × 400 × 490 mm, 13.4 kg.

Running and spare parts

The cone, pressing cup, bowl, drip tray and grid go in the dishwasher; the base and motor unit just need a wipe with a damp sponge. The bearings are lubricated for life.

Wear parts — the cone and the pressing cup — are replaceable. Spare parts are ordered by the manufacturer's part numbers: cone — 70200, drip tray with grid — 70710. Part numbers for everything else are in the spare parts diagram on the ‘Technical Data Sheet’ tab.

What’s in the box

The juicer comes with a universal cone, pressing cup, splash guard, bowl and drip tray with grid. A glass raiser is available to order separately.

Technical specifications
