Citrus juicer „Bartscher“ CS1

Lever citrus juicer that starts automatically

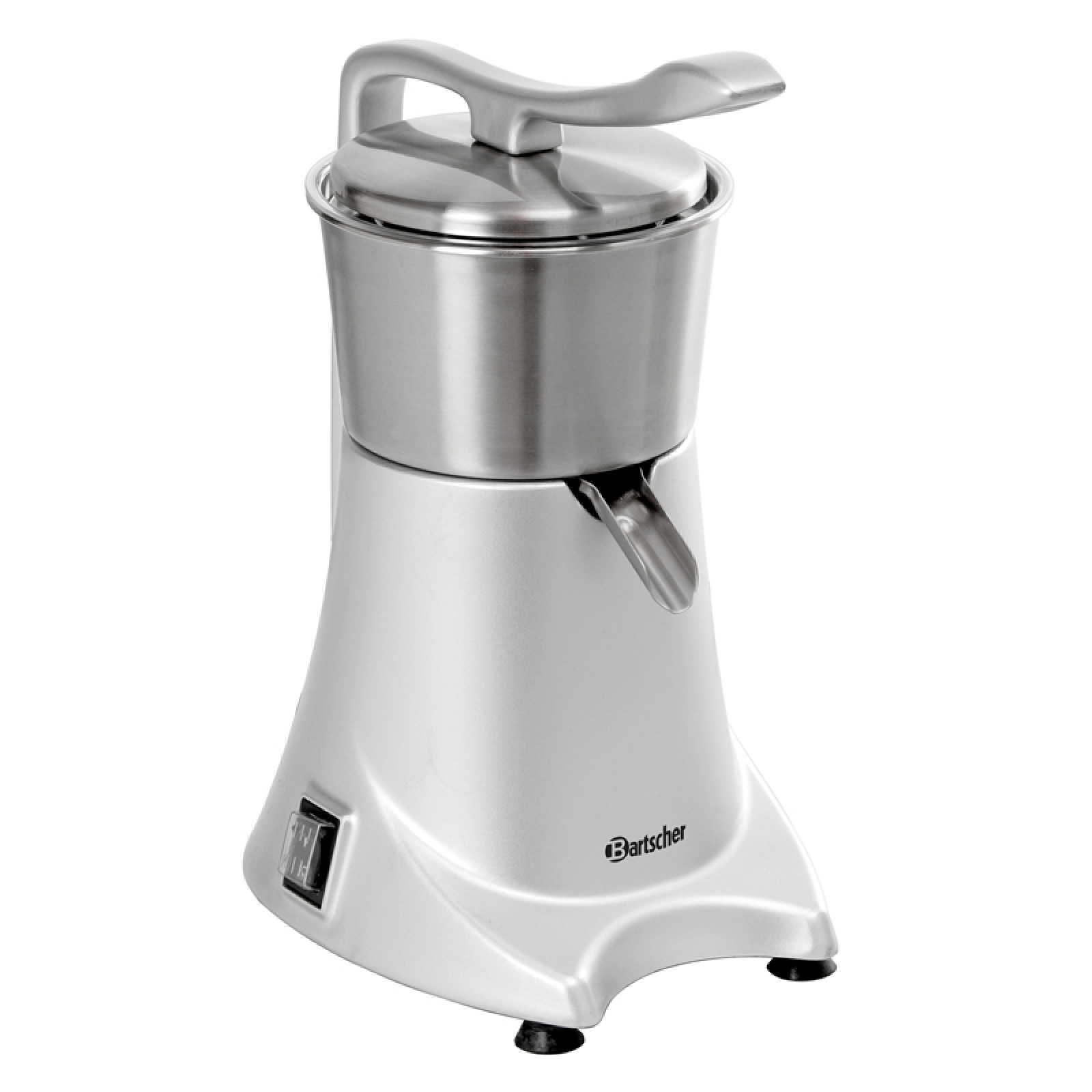

The „Bartscher“ CS1 is an electric citrus juicer with a lever that starts the motor itself. It has a 230 W motor, and the cone turns at up to 980 rpm.

What it is for

With one stainless steel cone, the CS1 squeezes oranges, grapefruit, pomegranates, lemons and limes. The compact juicer is at home at the bar or on the breakfast buffet.

The lever starts the motor

Lower the lever onto a fruit half and press slowly — the motor switches on automatically, and lifting the lever switches it off. The pressing cup on the lever covers the fruit half and presses it onto the cone, and the juice runs through the spout straight into a glass or jug.

A separate on/off switch guards against accidental starts, and a protective switch turns the motor off if it is overloaded.

Cone, bowl and strainer

The juice comes out pulp-free and the counter stays clean: the strainer fitted in the stainless steel bowl holds back the pulp, and the splash guard on the bowl catches the splashes.

The body is silver cast aluminium, and suction feet hold the juicer firmly on the worktop.

Comparison

The CS1 is our juicer whose lever starts the motor itself, and its cone takes pomegranates too.

If you need a more powerful 300 W motor and 50 L/h, choose the „Santos“ #70 Evolution; for a chrome or grey body and a juicer that takes up less room on the bar (200 × 300 mm, 30 L/h), go for the „Santos“ #10.

Installation and connections

• Power supply: single-phase 230 V, 50/60 Hz, 230 W. Plug the juicer directly into its own earthed socket rather than a multi-way adapter or extension lead.
• Location: a level, stable, dry surface that resists water and heat, back from the edge of the table. Leave at least 15 cm on every side and room above for the lever to move freely, with the switch within easy reach.
• Dimensions and weight: 220 × 330 × 375 mm, 8.6 kg.

Running and spare parts

At the end of each working day the cone, strainer and bowl go in the dishwasher, the other removable parts are washed in warm water with a mild detergent, and the motor unit just needs a wipe with a damp cloth.

Spare parts are ordered by the manufacturer's part numbers: cone — 015014620, bowl — 015014616, and we sell the strainer (015014617) separately. Part numbers for everything else are in the spare parts diagram on the ‘Technical Data Sheet’ tab.

What’s in the box

The juicer comes with a stainless steel cone, a bowl with strainer and spout, a splash guard and the pressing cup on the lever.

Technical specifications
