Ice storage bin „Brema Ice“ Bin 200

Add to Cart
  • Ice storage bin „Brema Ice“ Bin 200
  • Ice storage bin „Brema Ice“ Bin 200
Brema Ice 2026Download PDF PDF · EN · 2.7 MB

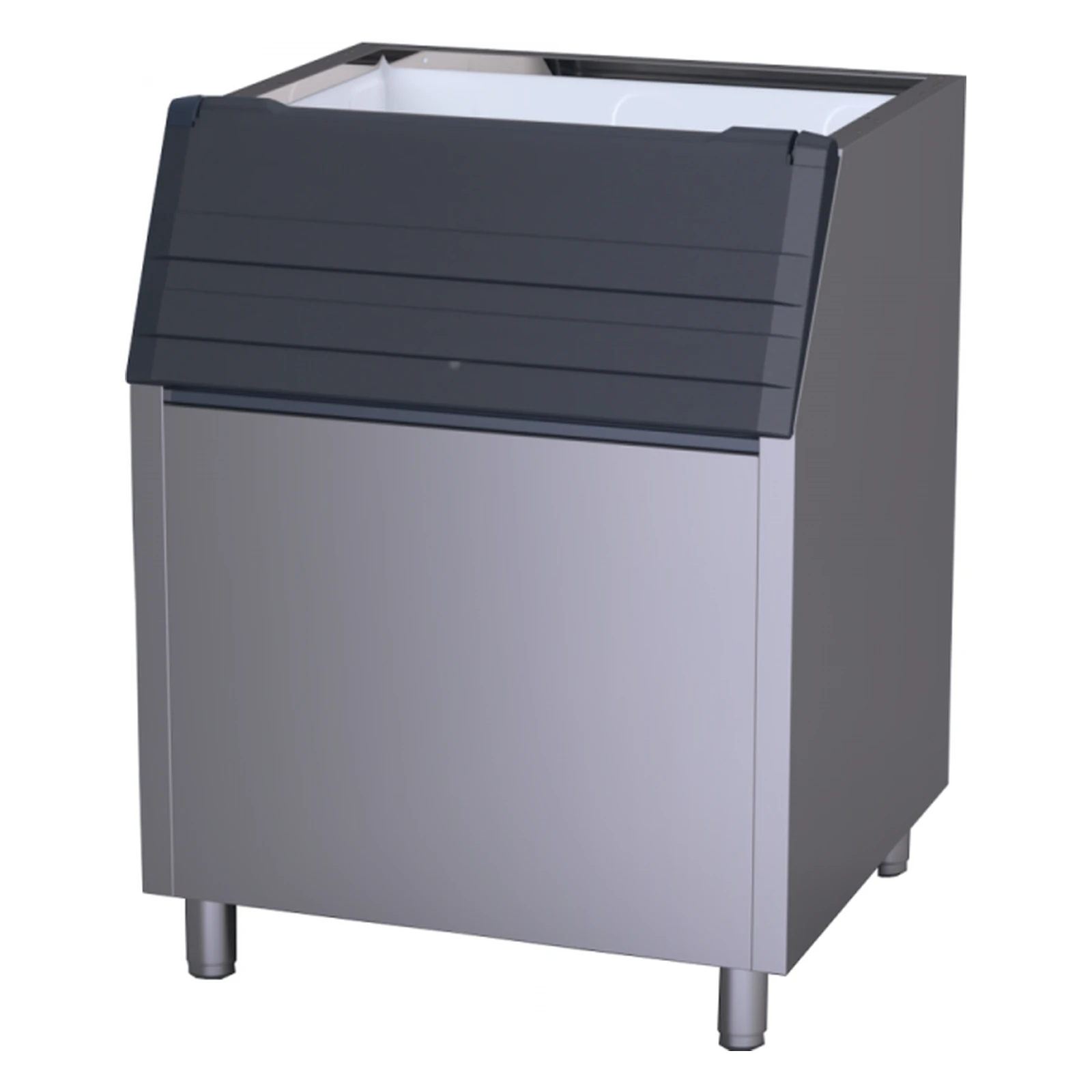

Ice storage bin „Brema Ice“ Bin 200 — 200 kg

„Brema Ice“ Bin 200 — 200 kg ice storage bin

The „Brema Ice“ Bin 200 is an ice storage bin for modular ice makers: the ice maker sits on top and the ice drops straight into the bin. It holds up to 200 kg of ice. The frame is 18/8 stainless steel with a „Scotch-Brite“ finish and the tank is polyethylene, suitable for contact with food and easy to clean. Good insulation keeps the ice from melting for a long time.

We sell the version of this bin for the „Brema Ice“ C 150 HC ice maker (Brema code BIN 200*C150). For other Brema modular ice makers — VM 350, VM 500/900, G 160/280/510, TM 140/250/450 and M 250 — Brema supplies separate versions of this bin, which we can offer on request.

„Brema Ice“ Bin 200 ice storage bin
01

Up to 200 kg of ice

More than the C 150 HC makes in a day (150 kg).

02

Steel and polyethylene

18/8 stainless steel frame, polyethylene tank.

03

Well insulated

The ice keeps for a long time.

04

100–160 mm feet

Adjustable, so the bin and ice maker can be levelled.

Comparison with the other bins

BinBin 240 PEBin 200
this bin		Bin 350
on request
Storage capacityup to 180 kgup to 200 kgup to 350 kg
Constructionmoulded polyethylene18/8 stainless steel frame, polyethylene tank18/8 stainless steel frame, polyethylene tank
Dimensions without feet (W × D × H), mm942 × 795 × 1 053870 × 815 × 1 0001 250 × 815 × 1 000
Adjustable feet100–160 mm100–160 mm100–160 mm
Height with the C 150 HC and feet, mm (our calculation)1 873–1 9331 820–1 8801 820–1 880
Net weight64 kg63 kg102 kg

The Bin 240 PE has a moulded polyethylene body and costs less, but holds less (180 kg) and is 72 mm wider and 53 mm taller. We can offer the Bin 350 (350 kg, 1 250 × 815 × 1 000 mm) on request.

Installation and care

  • Stand the bin on a level floor; once the ice maker is on top, level the unit with a spirit level by adjusting the feet (100–160 mm).
  • A qualified technician fits the ice maker’s thermostat probe into the bin’s probe holder, so that the ice maker stops when the bin is full.
  • Meltwater leaves through the bin’s drain hole, so the bin needs a drain, just like the ice maker. Do not use the bin to chill or store food or drinks: they can block the drain, and the bin then fills with water and overflows (C 150 HC manual).
  • With the C 150 HC and the feet, the whole unit is 1 820–1 880 mm high (our calculation from Brema’s dimensions).
  • The bin is cleaned and sanitised together with the ice maker at least once a month: washed with the vinegar solution and washing-up liquid, sanitised with a 200 mg/l sodium hypochlorite solution and rinsed thoroughly with cold water — a job for qualified staff (C 150 HC manual).

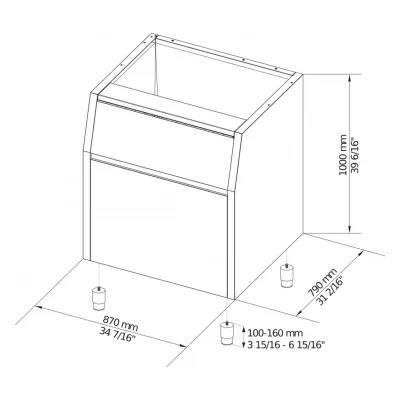

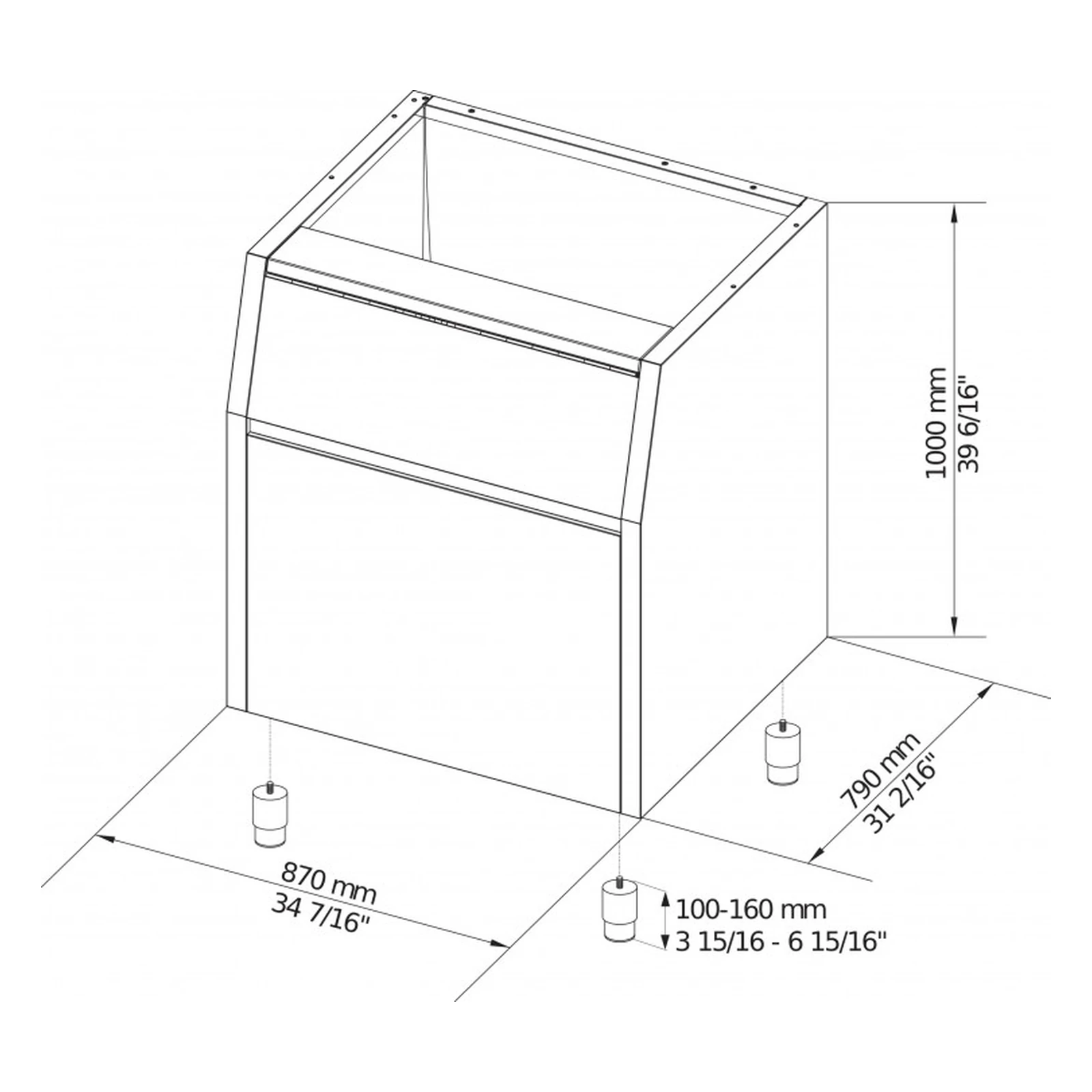

„Brema Ice“ Bin 200 dimensions

What’s in the box

Ice storage bin with adjustable feet. The ice maker is not included.

Technical specifications

ModelBin 200
ManufacturerBrema Ice
Manufacturer codeBIN 200*C150
TypeIce storage bin for modular ice makers
Storage capacityUp to 200 kg
Compatibility„Brema Ice“ C 150 HC (this version, code BIN 200*C150); other Brema modular ice makers — separate versions on request
Construction18/8 stainless steel frame, „Scotch-Brite“ finish; insulated polyethylene tank suitable for food contact
Dimensions (W × D × H)870 × 815 × 1 000 mm (without the adjustable 100–160 mm feet; depth at the base 790 mm)
Packed dimensions (W × D × H)920 × 850 × 1 175 mm
Net / gross weight63 kg / 78 kg
Ice maker
Machine type: Ice storage bin for modular ice makers
Storage capacity: Up to 200 kg
Cabinet: 18/8 stainless steel frame, „Scotch-Brite“ finish; insulated polyethylene tank suitable for food contact
Compatibility: „Brema Ice“ C 150 HC (this version, code BIN 200*C150); other Brema modular ice makers — separate versions on request
Dimensions
External Dimensions (width/depth/height): 870 × 815 × 1 000 mm (without the adjustable 100–160 mm feet; depth at the base 790 mm)
Package dimensions (width/depth/height): 920 × 850 × 1 175 mm
Weight
Gross Weight: 78 kg
Net Weight: 63 kg
Manufacturer product page: Open manufacturer page

Write your review

Manufacturer:
Brema Ice
Code:
Bin 200
1,186.00 € (Excl. VAT)

Similar products

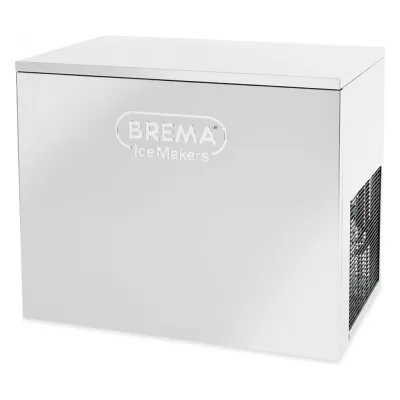

Modular ice maker „Brema Ice“ C 150 HC

Modular ice maker „Brema Ice“ C 150 HC

2,546.00 €

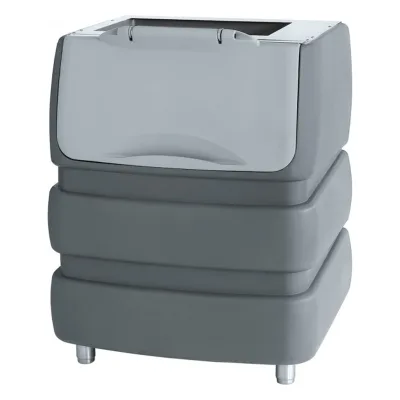

Ice storage bin „Brema Ice“ Bin 240 PE
