Dishwasher heating element „Zanussi“, 4500 W, 230 V

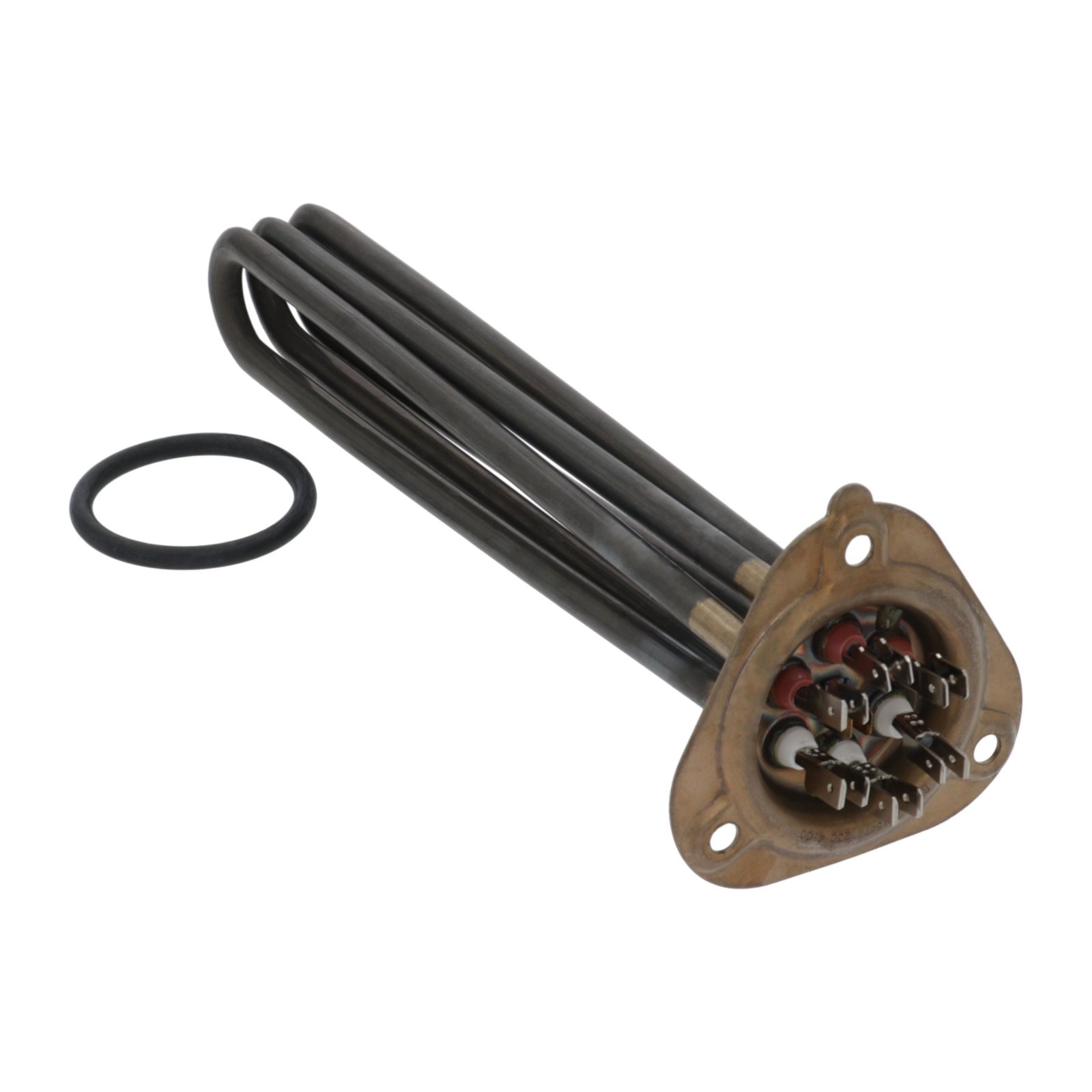

This 4500 W, 230 V heating element fits „Zanussi“ dishwashers. It has an immersed length of 265 mm and a flange with an outer diameter of 63 mm. If the element burns out, the dishwasher can no longer heat the water to the required temperature.
According to LF, the element corresponds to „Zanussi“ part number 0L2652 and fits the models listed below.
Technical specifications
| Equipment brand | „Zanussi“ |
|---|---|
| Equivalent part | „Zanussi“ 0L2652, „Whirlpool“ 149955 |
| LF code | 3755951 |
| GEV code | 1GEL7T278002 |
| Other codes | ATEL 27LS021, EPMS 416128 |
| Type | Immersion heating element |
| Power | 4500 W |
| Supply voltage | 230 V |
| Immersed length | 265 mm |
| Flange | Ø 63 mm (outer diameter) |
| Connection | Faston spade terminals |
| Country of origin | Italy |
Fits „Zanussi“ models
| „Zanussi“ — dishwashers | WT4 (400007), WT4B (400008), WT4D (400009), WT4DB (400015), WT46 (400016), WT4DG (400018), WT4WS1 (400019), WT4BWS (400027), WT4DWS1 (400028), WT4BDWS (400029), NUC3DD (400041), WT4D60 (400042), WT4DDG (400043), EUC1 (400055), EUC1DP (400056), EUC1WS (400057), EUC1DPWS (400058), EUC3 (400059), EUC3WS (400060), EUC3DP (400061), EUC3DPWS (400062), EUC1G (400063), EUC1DP60 (400064), EUC3DD (400065), ZUCADDROW (400066), ZUCADDROW6 (400067), EUCADD60 (400068), LS5/1 (400100), LS5/1DP (400102), LS5/1WS (400103), LS5/1WSDP (400110), LS5/3 (400112), LS5/3DP (400113), LS5/3WS (400114), LS5/3WSDP (400115), FUCA3DD (400116), LS5/3WSDPD (400117), LB5DPG (400119), NUC1DPP (400120), NUC1DUK (400122), NUC1DDUK (400123), LS5/1DP60 (400124), LS5/1DPAUS (400125), LS5/1DPCS (400126), KUC3 (400127), KUC3DP (400128), NUC1DDRUKP (400130), NUCA1GRUK (400131), NUC1D (400133), NUC1DD (400134), EUCA1DP (400137), NUC1GMS (400138), EUC3DPCAG (400139), NUC1 (400140), NUC1DP (400141), NUC1WS (400142), NUC1DPWS (400143), NUC3 (400144), NUC3WS (400145), NUC3DP (400146), NUC3DPWS (400147), NUC3DDWS (400148), NUC1DP60 (400149), NUC1DPA (400150), ZUCA1 (400151), ZUCA3 (400152), EUCADDROW (400153), EUCADDROW6 (400154), NUC1DPDD (400155), FL5 (690004), FL5DP (690005), LV5 (690006), LV5DP (690007), LV5/3WSDP (690008), FL5/3WSDP (690009), UC5DP (690010), UC5WSDP (690011), LD5DP (690013), LD5 (690014), UC5/1 (690017), UC5/1DP (690018), FL5DDG (690027), NUC1G (690028), NUCA1DDG (698005), NUCA1DPDDG (698049) |
|---|
According to LF, the same element is also used in some „Electrolux Professional“, „Whirlpool“ and „Alpeninox“ dishwashers.
Check the dimensions before ordering. „Zanussi“ dishwashers also use other 4500 W, 230 V elements — for example, one with a 255 mm immersed length. Measure the immersed length and flange diameter of your old element, or check whether your dishwasher’s parts list includes part number 0L2652.
| Spare part | |
| Manufacturer code | „Zanussi“ 0L2652, „Whirlpool“ 149955 |
| Type | Immersion heating element |
| Connection | Faston spade terminals |
| Dimensions | Immersed length 265 mm, outer flange diameter 63 mm |
| Power | 4500 W |
| Supply voltage | 230 V |
| Fits | „Zanussi“, „Electrolux Professional“, „Whirlpool“ and „Alpeninox“ dishwashers („Zanussi“ model list in the description) |
