Dishwasher heating element, 3000 W, 230 V

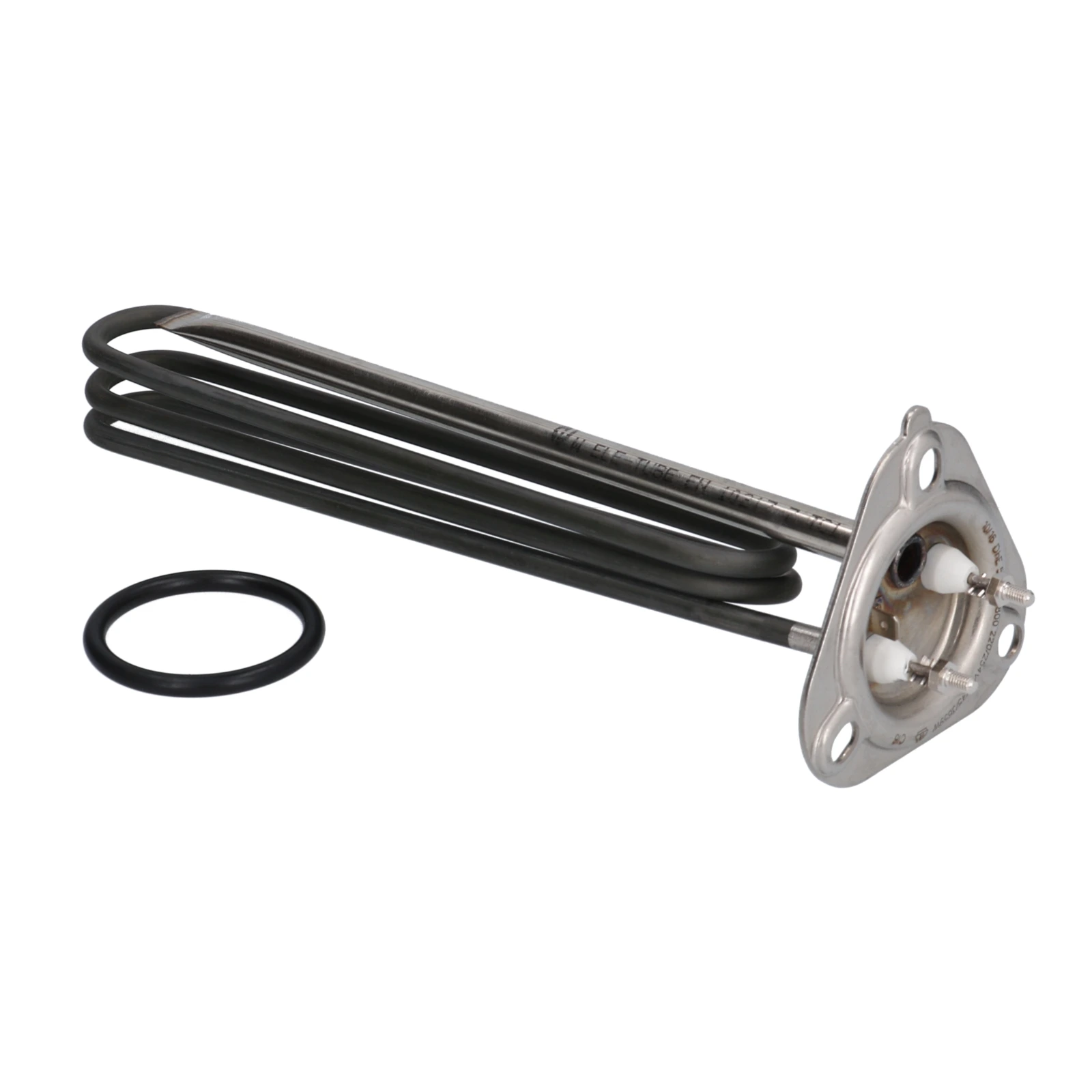

This 3000 W, 230 V heating element fits dishwashers and glasswashers from „Mach“, „Modular“, „Project Systems“ and other manufacturers. It has an immersed length of 260 mm, a flange with an outer diameter of 63 mm and a pocket for the thermostat probe. A Ø 58 mm O-ring is included.
According to LF, the element fits the models listed below; the corresponding „Lasa“, „Mach“, „Marels“ and „Modular“ part numbers are given in the specifications.
Technical specifications
| Equivalent part | „Lasa“ 3202500, „Mach“ 512019800, „Marels“ / „Modular“ 465.011.00 |
|---|---|
| LF code | 3755002 |
| Other codes | ATEL 27LS068 |
| Type | Immersion heating element with thermostat probe pocket |
| Power | 3000 W |
| Supply voltage | 230 V |
| Immersed length | 260 mm |
| Flange | Ø 63 mm (outer diameter) |
| Tube diameter | 6.2 mm |
| Connection | M4 screw terminals |
| Included | Ø 58 mm O-ring |
| Country of origin | Italy |
Fits models
| „Eurofrance“ — dishwashers | GALAXY |
|---|---|
| „Mach“ — dishwashers | GL250, MS350, MS351, MS353, MS400E, MS450, MS450E, MS451, MS453, MS500E, MS500PPB, MS500T, MS700E, MS9351, MS9353, MS9401, MS9451, MS9453, MS9501 |
| „Mach“ — hood-type dishwashers | MS905 |
| „Mach“ — glasswashers | GL220, MB235LI, MB240LI, MB510, MB510E, MB510ER, MB520, MB530, MB535, MB630, MB920, MB920E, MB920ER, MB930, MB930T, MGL40 |
| „Marels“ — dishwashers | ECO4, ECO5, L45, OPT 40, OPT 445A |
| „Modular“ — dishwashers | DW50, DW50DT, DW51, DW51DT, DWD45, DWD45DT, DWD51, DWD51DT, DWD59, DWD59DT, ECO41, ECO42, ECO43A, ECO45, ECO46, ECO47A, ECO51, ECO51-2, ECO51T, ECO51T-2, ECO52, ECO52-2, ECO52T, ECO52T-2, ECO56A, ECO56A-2, ECO56AT, ECO56AT-2, GW35, GW40, GW41, GWD40, GWD40DT, GWD41, GWD41DT, L451, L451-2, L452, L452-2, L456A, L456A-2, OPT410A, OPT412A, OPT430, OPT445A, OPT470 |
| „Modular“ — glasswashers | OPT412, OPT415A |
| „Project Systems“ — dishwashers | E50, G50, JET350, JET500 PLUS, JET500P PLUS, S50, T50, T80, UNICA35, UNICA35X, UNICA40, UNICA50 |
| „Project Systems“ — glasswashers | ALPHA35, ALPHA40, ALPHA50, ALPHA50P, E35, E40, G35, G40, S35, S40, T35, T35S, T40 |
According to LF, the same element is also used in some „Lasa“ and „SAB Italia“ dishwashers.
Check the dimensions before ordering. „Mach“ dishwashers also use other 3000 W, 230 V elements — for example, one with a shorter, 210 mm immersed length. Measure the immersed length and flange diameter of your old element, or check whether your machine’s parts list includes one of the part numbers given in the specifications.
| Spare part | |
| Manufacturer code | „Lasa“ 3202500, „Mach“ 512019800, „Marels“ / „Modular“ 465.011.00 |
| Type | Immersion heating element with thermostat probe pocket |
| Connection | M4 screw terminals |
| Dimensions | Immersed length 260 mm, outer flange diameter 63 mm, tube diameter 6.2 mm |
| Power | 3000 W |
| Supply voltage | 230 V |
| Fits | „Eurofrance“, „Lasa“, „Mach“, „Marels“, „Modular“, „Project Systems“ and „SAB Italia“ dishwashers and glasswashers (model list in the description) |
