Pebble ice maker „Brema Ice“ TB 551 HC — 57 kg per day

„Brema Ice“ TB 551 HC — pebble ice maker for undercounter installation

The „Brema Ice“ TB 551 HC is a compact self-contained pebble ice maker („Ice Pebbles“) with a built-in storage bin, made to fit under a counter. At 21 °C air and 15 °C water temperature it makes 57 kg of ice pebbles a day and keeps up to 10 kg in the bin. When the bin is full, production stops; when you take ice out, it restarts automatically.

The machine is available air- or water-cooled. It uses the natural refrigerant R290 and has electromechanical controls. Choose the cooling in the ‘Version’ field.

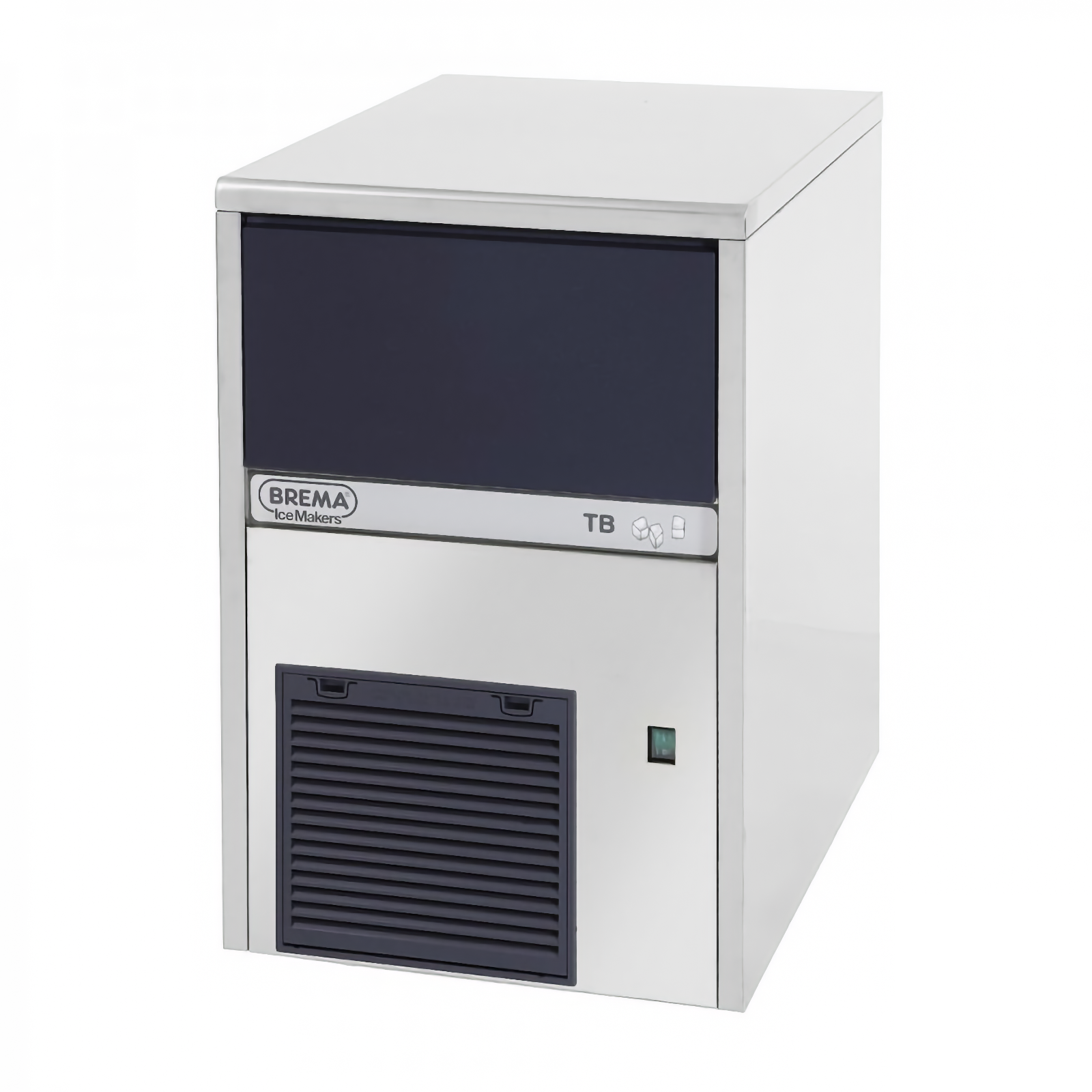

„Brema Ice“ TB 551 HC stainless steel pebble ice maker

Who it is for

Brema lists bars, nightclubs, fast-food restaurants, hotels, supermarkets, medical and spa facilities, and industry as the sectors this model is intended for. How much ice it makes in 24 hours depends on the room and mains water temperature (manufacturer’s figures):

  • in a cool room (air 10 °C, water 7 °C) — up to 66 kg;
  • under standard conditions (air 21 °C, water 15 °C) — 57 kg;
  • in a hot room (air 32 °C, water 21 °C) — 46 kg.

The bin holds up to 10 kg of ice pebbles.

„Brema“ ice pebbles („Ice Pebbles“)
01

57 kg a day

Under standard conditions; up to 66 kg in a cool room.

02

10 kg bin

Insulated, with a door that slides up into the cabinet.

03

8 × 16 × 7 mm pebbles

Compressed ice, 91 % dry.

04

1 l of water — 1 kg of ice

Water use of the air-cooled version.

05

Removable air filter

The condenser filter can be taken out and cleaned.

06

AISI 304 steel

Stainless steel cabinet and evaporator.

Ice pebbles („Ice Pebbles“)

TB-series machines make ice pebbles of about 8 × 16 × 7 mm rather than cubes. This is compressed ice with a low water content: Brema states 91 % dryness (GB-series ice flakes are 80–82 %).

According to Brema, this ice cools quickly and effectively, keeps cooling for longer and is easy to store, handle and portion. It is particularly suited to muddled cocktails.

„Brema“ ice pebbles

Build and controls

The cabinet is made of AISI 304 stainless steel with a „Scotch-Brite“ finish, and the evaporator is AISI 304 stainless steel too. The bin is insulated with HCFC-free material and the internal surfaces are rounded, so they are easy to clean. The water basin is dust-proof, and the condenser air filter can be removed and cleaned.

The controls are electromechanical: the machine is switched on with an ON / OFF rocker switch, water is topped up automatically, and a thermostat stops production when the ice in the bin reaches its probe and restarts it when ice is taken out.

„Brema“ GB and TB series details: steel cabinet, air filter, evaporator, water basin and door

Which model to choose

  • TB 551 HC — ice pebbles under the counter: 57 kg a day, a 10 kg bin, 450 × 620 × 680 mm.
  • For more storage under the counter — the TB 852 HC and TB 853 HC (on request): 90 kg a day each, with 20 and 30 kg bins respectively (800–840 and 910–950 mm high on their feet).
  • For high demand — the freestanding TB 1405 HC: 146 kg a day, 50 kg bin, also available with a drain pump.
  • For ice flakes — the same-sized GB 601 HC (67 kg a day, 9 kg bin).
ModelTB 551 HC
this model		TB 1405 HCGB 601 HC
Ice typepebbles 8 × 16 × 7 mmpebbles 8 × 16 × 7 mmgranular (flakes)
Production per 24 h (air 21 °C, water 15 °C)57 kg146 kg67 kg
Maximum production per 24 h66 kg158 kg73 kg
Production per 24 h (air 32 °C, water 21 °C)46 kg130 kg53 kg
Bin capacity10 kg50 kg9 kg
Dimensions without feet (W × D × H), mm450 × 620 × 680738 × 690 × 1 020450 × 620 × 680
Feet5 mm110–150 mm5 mm
Installation typeundercounterfreestandingundercounter
Average power consumption410 W720 W400 W
Water consumption, water-cooled5 l/kg9 l/kg5 l/kg
Available versionsair- or water-cooledair- or water-cooled, drain pumpair- or water-cooled, drain pump

Installation and connections

  • Power: 220–240 V, 50 Hz, 10 A fuse. Connect the machine to an earthed supply through an all-pole circuit breaker with fuses and a residual current device (RCD); the supply must be able to handle the maximum power shown on the rating plate.
  • Water: connects to the cold drinking-water mains (not reverse-osmosis or deionised water), 1–6 bar pressure, 3/4″ connection. A shut-off tap is needed. If the water contains sand or other solid particles, Brema advises fitting a mechanical filter.
  • Drain: gravity drain into an outlet below the machine — a hose with a 22 mm internal diameter along its whole length and a fall of at least 15 %, ideally into an open trap.
  • Location: a clean room at 10–43 °C (the machine performs best with air at 10–35 °C and water at 3–25 °C), away from heat sources and direct sunlight, with at least 5 cm of clearance all round.
  • Dimensions: 450 × 620 × 680 mm (W × D × H, excluding the 5 mm feet); packed — 505 × 675 × 850 mm, 64 kg.

The machine must be connected to the water and electricity supply by a qualified technician — this is a manufacturer requirement.

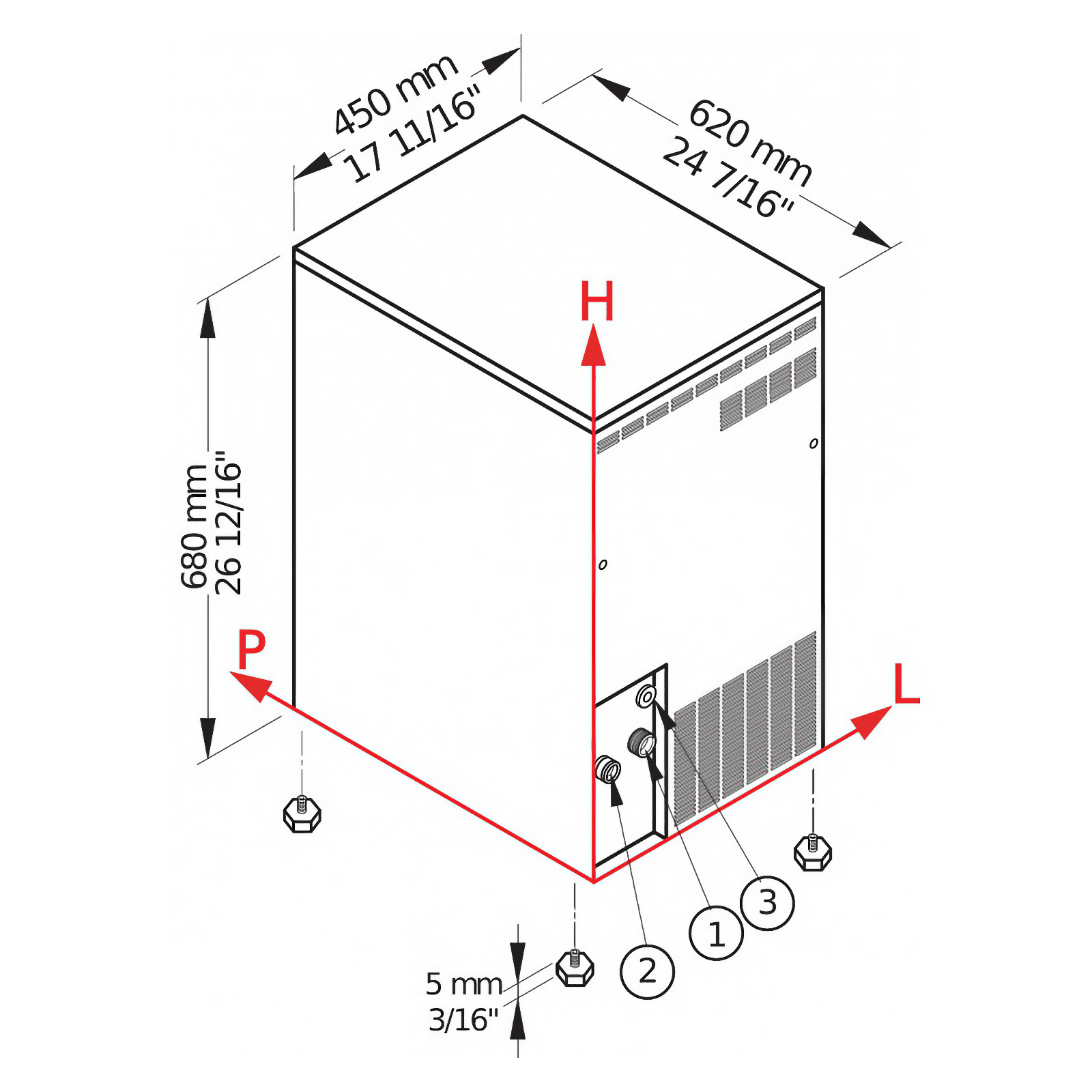

„Brema Ice“ TB 551 HC dimensions and connection points

Running costs and maintenance

Consumption. Electricity — 20 kWh per 100 kg of ice (measured at 32 °C ambient). Water — 1 l/kg of ice when air-cooled (all the water is turned into ice) and 5 l/kg when water-cooled, five times as much; at 57 kg a day that is about 57 l and 285 l. Daily figures are our calculation from Brema’s data.

  • Maintenance schedule: cleaning (with a 25 % white vinegar solution) and sanitising — monthly; water inlet filter — every two months; on air-cooled versions, the condenser air filter — monthly, and the condenser — every two months (by an authorised service centre). The full procedure is in the user manual.
  • Where the water is particularly hard, Brema recommends a multi-purpose cartridge filter. For such water our shop offers the „Everpure“ 4FC-S cartridge with a QL3 head.

What’s in the box

Ice maker, feet, water supply hose with seals, user manual and cleaning and sanitising manual.

Technical specifications

ModelTB 551 HC
ManufacturerBrema Ice
Machine typePebble ice maker with built-in bin
ControlsElectromechanical, ON / OFF rocker switch
Ice-making systemPebble system
Production per 24 h (air 21 °C, water 15 °C)57 kg
Maximum production per 24 h (air 10 °C, water 7 °C)66 kg
Production per 24 h (air 32 °C, water 21 °C)46 kg
Bin capacityUp to 10 kg
Ice typeIce pebbles („Ice Pebbles“), about 8 × 16 × 7 mm, 91 % dry
Cooling systemAir (A) or water (W)
RefrigerantR290
Ambient temperature10–43 °C
Water temperature3–32 °C
Water pressure1–6 bar
Power supply220–240 V, 50 Hz
Average power consumption410 W (at 43 °C ambient)
Electricity consumption20 kWh / 100 kg of ice (at 32 °C ambient)
Fuse10 A
Water consumption1 l/kg air-cooled, 5 l/kg water-cooled
Water inlet3/4″
Drain outletØ 24 mm (hose internal diameter 22 mm)
Dimensions (W × D × H)450 × 620 × 680 mm (without the 5 mm feet)
Packed dimensions (W × D × H)505 × 675 × 850 mm
Net / gross weight56 kg / 64 kg
CabinetAISI 304 (18/8) stainless steel, „Scotch-Brite“ finish
Noise levelBelow 70 dB(A)
Installation typeUndercounter
ApplicationsBars, nightclubs, fast-food outlets, hotels, supermarkets, medical and spa facilities, industry
Electric connection
Power in watts (W): 410 W (average, at 43 °C ambient)
Voltage in volts (V): 220–240 V, 50 Hz
Ice maker
Machine type: Pebble ice maker with built-in bin
Controls: Electromechanical, ON / OFF rocker switch
Ice type: Ice pebbles („Ice Pebbles“), about 8 × 16 × 7 mm, 91 % dry
Ice-making system: Pebble system
Production per 24 hours: Up to 66 kg (air 10 °C, water 7 °C)
Production at standard conditions: 57 kg (air 21 °C, water 15 °C)
Production in a hot room: 46 kg (air 32 °C, water 21 °C)
Storage capacity: Up to 10 kg
Cooling system: Air (A) or water (W)
Refrigerant: R290
Water consumption: 1 l/kg air-cooled, 5 l/kg water-cooled
Water inlet: 3/4″
Water outlet: Ø 24 mm (hose internal diameter 22 mm)
Ambient temperature: 10–43 °C
Water pressure: 1–6 bar
Water temperature: 3–32 °C
Fuse: 10 A
Cabinet: AISI 304 (18/8) stainless steel, „Scotch-Brite“ finish
Installation type: Undercounter
Applications: Bars, nightclubs, fast-food outlets, hotels, supermarkets, medical and spa facilities, industry
Consumption
Electricity consumption: 20 kWh / 100 kg of ice (at 32 °C ambient)
Dimensions
External Dimensions (width/depth/height): 450 × 620 × 680 mm (without the 5 mm feet)
Package dimensions (width/depth/height): 505 × 675 × 850 mm
Weight
Gross Weight: 64 kg
Net Weight: 56 kg
Manufacturer product page: Open manufacturer page

Write your review

Brema certificates

Official Brema Group documents related to this model’s manufacturer and, where applicable, its ice type.

Manufacturer management certificates

Documents are provided from the official Brema Group documentation area.

Manufacturer:
Brema Ice
Code:
TB 551 HC
2,273.87 € (Excl. VAT)
Version

Similar products

Granular ice flaker „Brema Ice“ GB 601 HC

Granular ice flaker „Brema Ice“ GB 601 HC

2,253.93 €

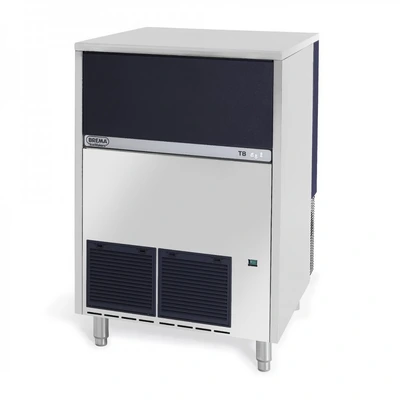

Pebble ice maker „Brema Ice“ TB 1405 HC
