Ice maker „Brema Ice“ CB 1265 HC

Integrated Drain Pump

Brema Drain Pump is Brema's DP solution for ice makers that cannot be conveniently connected to a floor drain below the machine. The integrated pump moves drain water to a more practical discharge point and gives more freedom when planning a bar, kitchen or buffet area.

Brema presents it as its proprietary DP System technology and design: the pump is installed inside the machine, the standard water and drain connection points remain unchanged, and the ice maker's footprint does not increase.

Main advantages

What makes Brema DP System different?

In its official description, Brema presents the DP System as a reliable pressurized drainage solution for ice makers. Water level is controlled without a float switch, and the sensor is not directly exposed to mineral buildup in the drain water. This matters in professional kitchens and bars where equipment runs every day and unplanned downtime disrupts work.

When should you choose the DP version?

The DP version is worth choosing when the ice maker must stand under a counter, on an island, against a wall or in another position where traditional gravity drainage restricts installation. Brema also notes that such a machine is easier to reposition within the same bar or kitchen even after commissioning if the workflow layout changes.

Drain Pump brochure Download PDF → Official Brema leaflet about the integrated drain pump solution.

Brema Drain Pump pageOpen manufacturer information →

„Brema Ice“ CB 1265 HC — freestanding ice maker

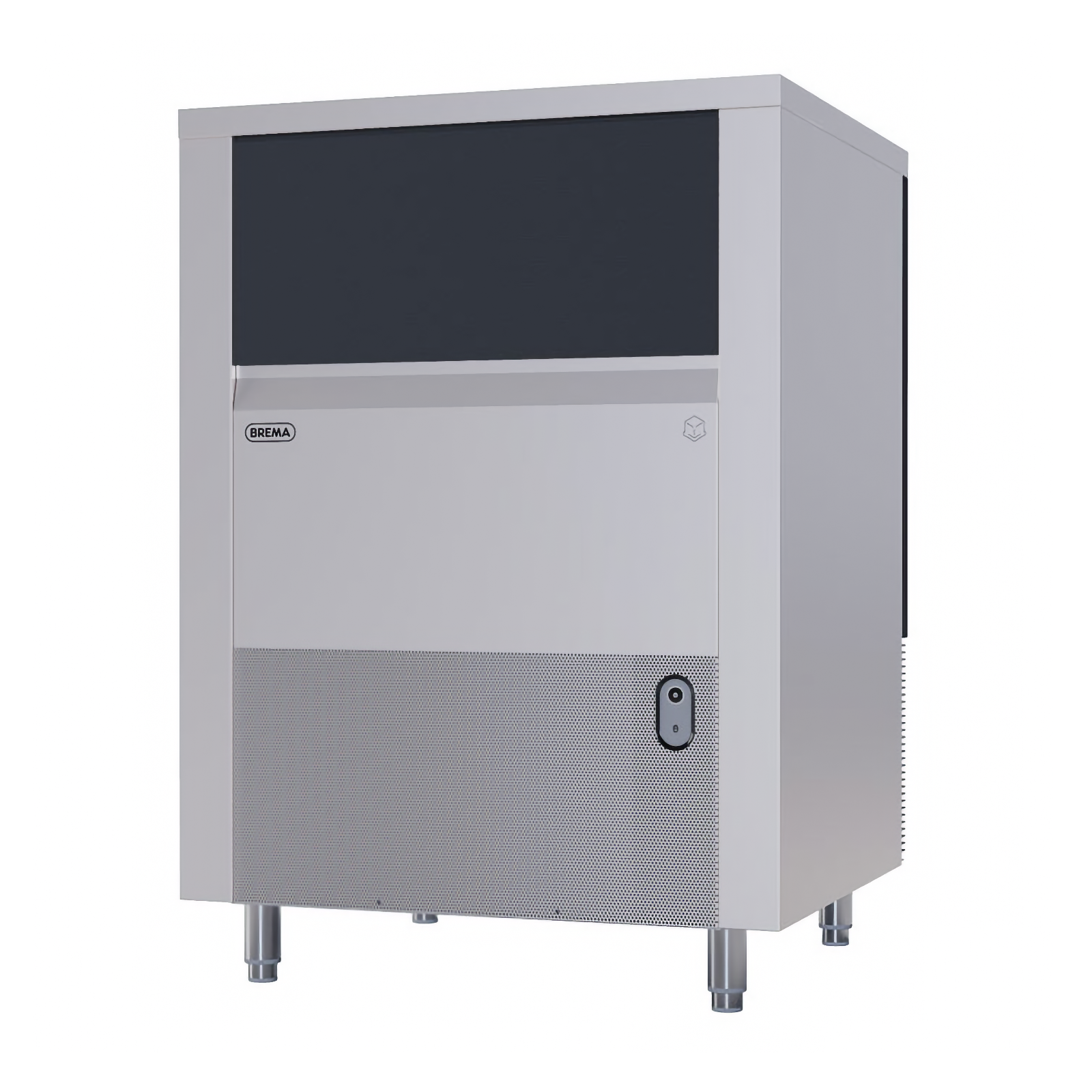

The „Brema Ice“ CB 1265 HC is a freestanding self-contained ice maker with a built-in storage bin. At 21 °C air and 15 °C water temperature it makes 134 kg of clear ice cubes a day and keeps up to 65 kg in the bin. When the bin is full, production stops; when you take ice out, it restarts automatically.

The model comes in two versions: AWS 1.0 and AWS 2.0 Wi, which has a built-in Wi-Fi module and connects to the „Brema Connect“ app. Both have the Automatic Washing System (AWS), use the natural refrigerant R290 and are made air- or water-cooled; the air-cooled machine can also be ordered with a built-in drain pump. In the ‘Version’ field choose the cooling and, if needed, the drain pump or Wi-Fi (the ‘Wi-Fi’ options are the AWS 2.0 Wi version); choose the cube size in the ‘Ice cube size’ field.

Who it is for

Brema lists bars, nightclubs, hotels and restaurants as the sectors this model is intended for. How much ice it makes in 24 hours depends on the room and mains water temperature (manufacturer’s figures for the standard 18 g cube):

• in a cool room (air 10 °C, water 7 °C) — up to 140 kg;
• under standard conditions (air 21 °C, water 15 °C) — 134 kg;
• in a hot room (air 32 °C, water 21 °C) — 122 kg.

The bin holds up to 65 kg of ice — about 3 600 standard 18 g cubes (our calculation from the manufacturer’s data).

Cube size — chosen when ordering

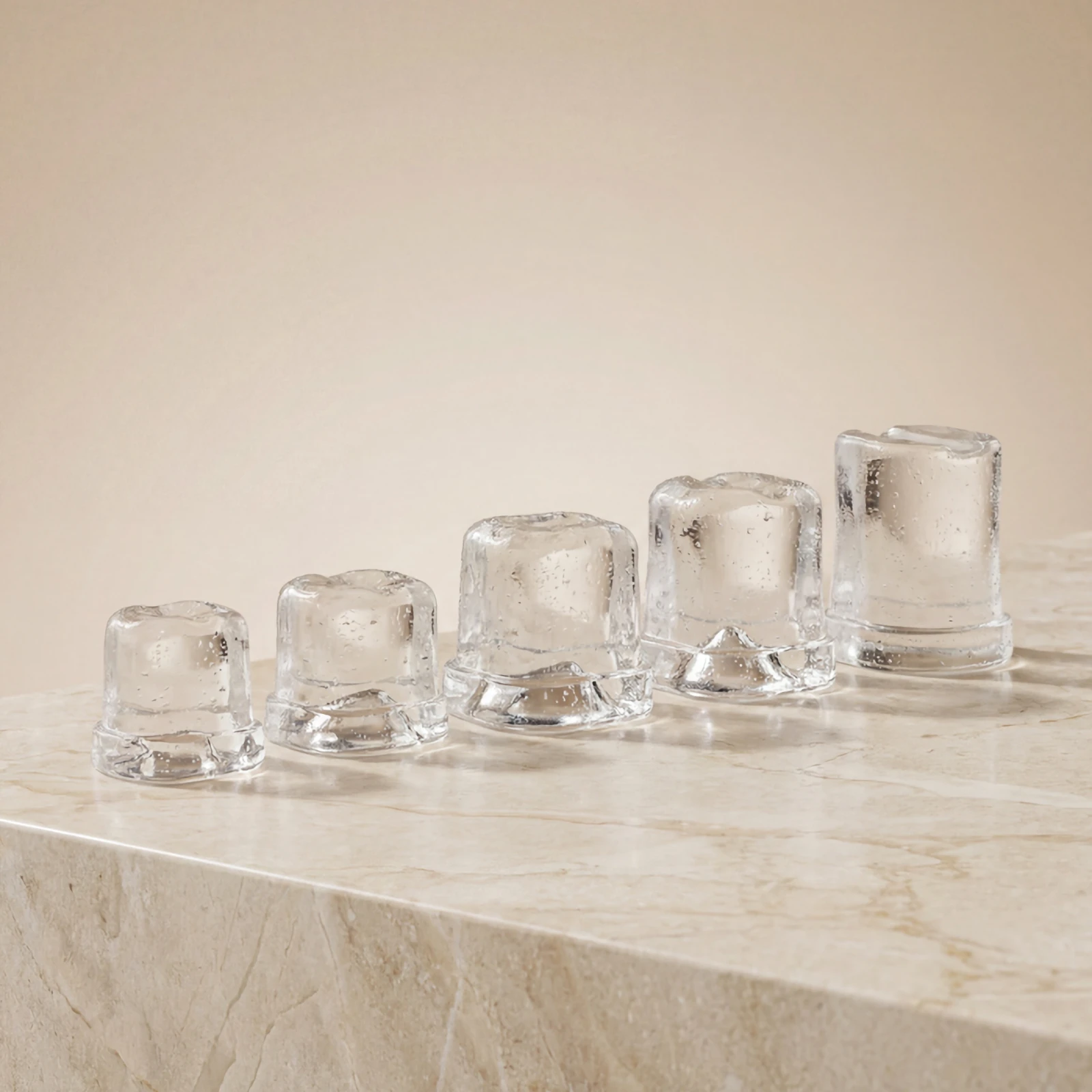

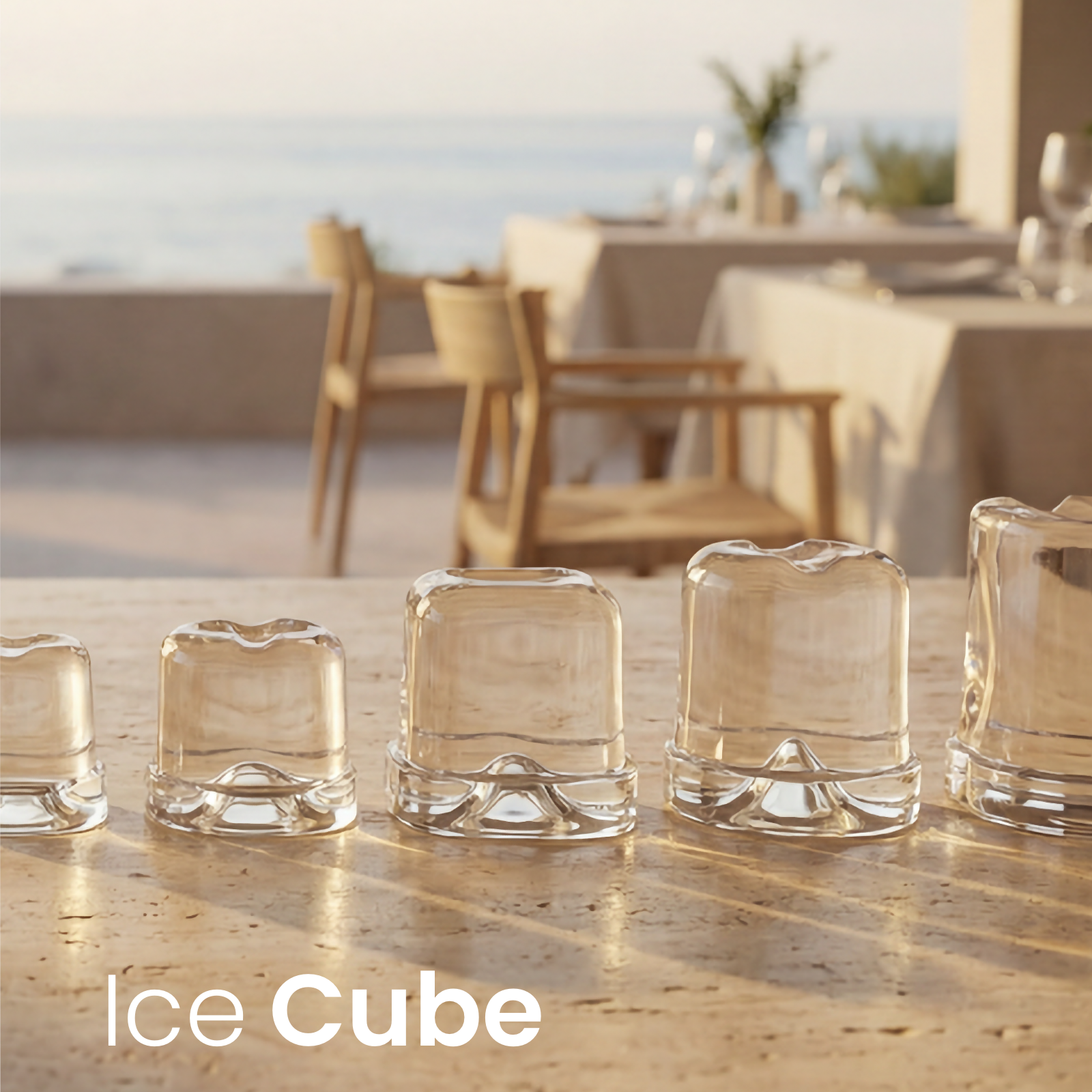

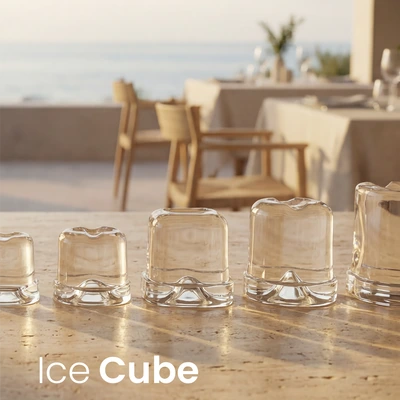

The CB 1265 HC makes solid cubes („Ice Cube“) shaped like a truncated cone with slightly flattened sides. They are clear and dense, so they chill a drink with little dilution, and the different sizes suit different glasses.

Five sizes are available: D — 13 g, A — 18 g (standard), C — 33 g, E — 42 g and B — 60 g. The machine makes cubes in the size you choose when ordering. The 23 g „B-Qube“ cube is made by a separate model, the CB 1265 HC „B-Qube“.

AWS 1.0 or AWS 2.0 Wi — how the versions differ

Both versions have the same output, dimensions and automatic washing system. The difference is in the controls:

• AWS 1.0 — the base version, with electromechanical controls and automatic washing.
• AWS 2.0 Wi — temperatures are measured by electronic probes, and a built-in Wi-Fi module connects the machine to the „Brema Connect“ app („iOS“ and „Android“) and a web portal.

The app shows the machine’s status, temperatures, production cycles and alarms. Depending on the access rights given to end users and technicians, you can use it to switch the machine on or off, start a washing or defrost cycle and schedule switch-on, switch-off and cleaning times. It reminds you when cleaning or maintenance is due and alerts you to faults. Technicians and dealers can see the activity and alarm history on the web portal, so a fault can be diagnosed faster and more accurately.

AWS 1.0 costs less; choose AWS 2.0 Wi if you want to monitor and control the machine from your phone.

Which model to choose

• CB 1265 HC — 134 kg a day and 65 kg in the bin, the largest bin in the CB range.
• For more ice a day in the same cabinet — the CB 1565 HC: 152 kg a day (145 kg in a hot room).

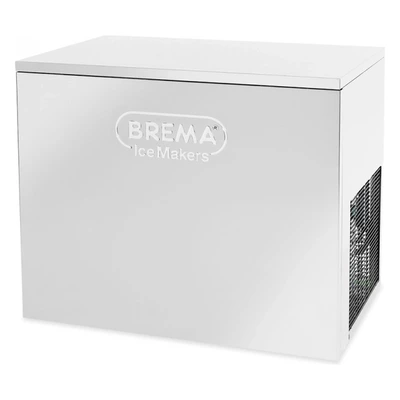

• For more than 65 kg of stored ice — the modular C 150 HC on a separate bin: 150 kg a day, with up to 180 kg in the Bin 240 PE or up to 200 kg in the Bin 200.
• When 55 kg of stored ice is enough — the CB 955 HC: smaller (735 × 610 × 1 009 mm), 95 kg a day, a 10 A fuse.

Installation and connections

• Power: 220–240 V, 50 Hz, 16 A fuse. Connect the machine to an earthed supply through an all-pole circuit breaker with a residual current device (RCD); the supply must be able to handle the maximum power shown on the rating plate.
• Water: connects to the cold drinking-water mains (not reverse-osmosis or deionised water), 1–6 bar pressure, 3/4″ connection. A shut-off tap is needed.
• Drain: gravity drain into an outlet below the machine — a hose with a 22 mm internal diameter and a fall of at least 15 %, ideally into an open trap. If the drain is higher than the machine, choose the drain pump version.
• Location: a clean room at 10–43 °C (the machine performs best with air at 10–35 °C and water at 3–25 °C), away from heat sources and direct sunlight; at least 5 cm of clearance all round.

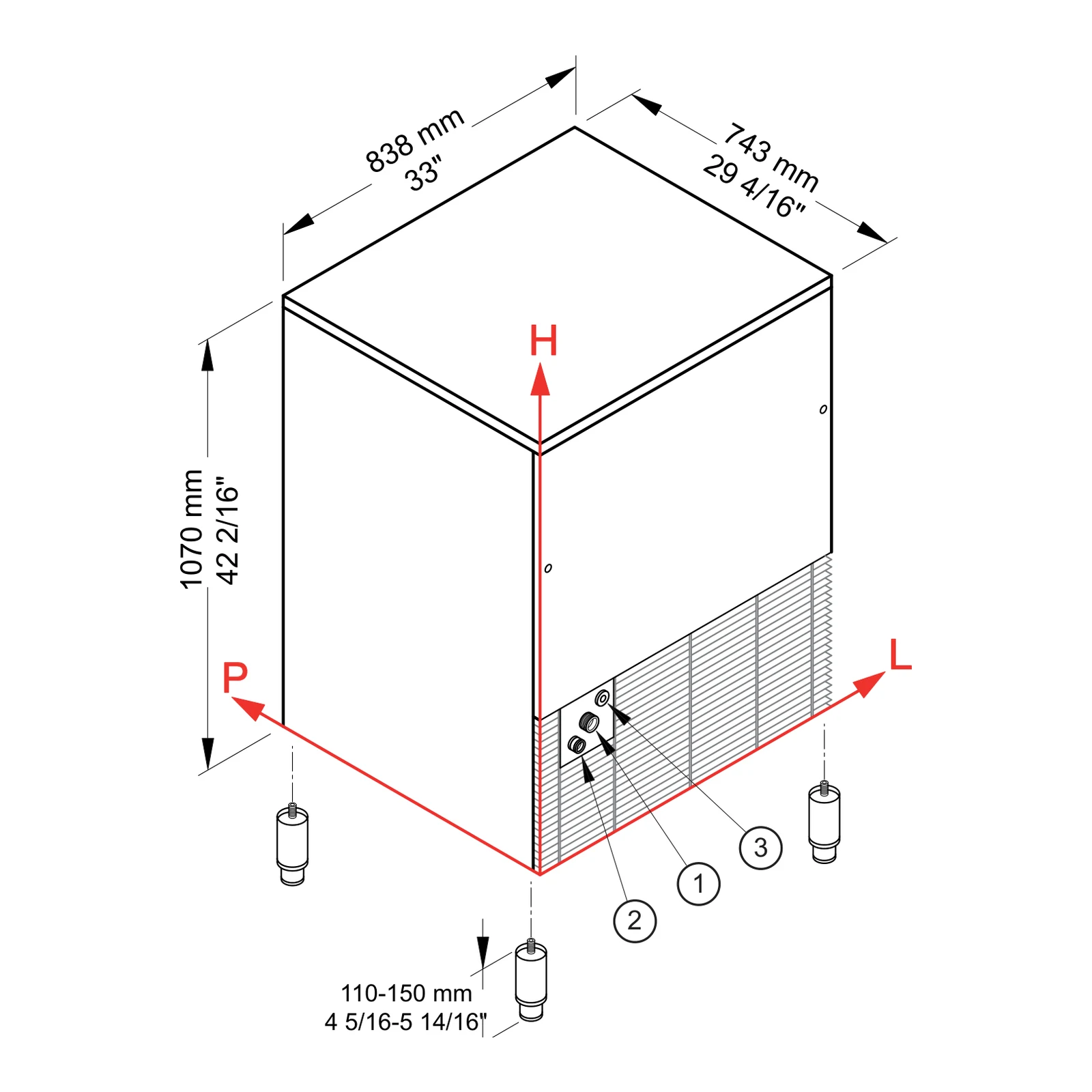

• Dimensions: 838 × 743 × 1 070 mm (W × D × H, excluding the adjustable 110–150 mm feet; 1 180–1 220 mm high on the feet); packed — 880 × 785 × 1 245 mm, 133 kg.
• AWS 2.0 Wi: a Wi-Fi network with internet access.

The machine must be connected to the water and electricity supply by a qualified technician — this is a manufacturer requirement.

Running costs and maintenance

Consumption. Electricity — 23 kWh per 100 kg of ice (measured at 32 °C ambient). Water — 2 l/kg of ice when air-cooled and 17 l/kg when water-cooled, 8.5 times as much; at 134 kg a day that is about 268 l and 2 280 l. Daily figures are our calculation from Brema’s data.

• Automatic washing: on both versions; on the AWS 2.0 Wi version the wash cycle can also be started from the app, depending on access rights.
• Maintenance schedule: cleaning (with a 25 % white vinegar solution or the „Brema“ cleaning kit) and sanitising — monthly, more often with hard water; water inlet filter — every two months; on air-cooled versions, the condenser — every two months (by an authorised service centre). The „Brema Ice“ Kit Cleaner (24 sachets of 55 g) is sold separately in our shop.
• Where the water is particularly hard, Brema recommends a multi-purpose cartridge filter. For such water our shop offers the „Everpure“ 4FC-S cartridge with a QL3 head.

What’s in the box

Ice maker, water supply hose with seals and user manual.

Technical specifications

Integrated Drain Pump

Brema Drain Pump is Brema's DP solution for ice makers that cannot be conveniently connected to a floor drain below the machine. The integrated pump moves drain water to a more practical discharge point and gives more freedom when planning a bar, kitchen or buffet area.

Brema presents it as its proprietary DP System technology and design: the pump is installed inside the machine, the standard water and drain connection points remain unchanged, and the ice maker's footprint does not increase.

Main advantages

What makes Brema DP System different?

In its official description, Brema presents the DP System as a reliable pressurized drainage solution for ice makers. Water level is controlled without a float switch, and the sensor is not directly exposed to mineral buildup in the drain water. This matters in professional kitchens and bars where equipment runs every day and unplanned downtime disrupts work.

When should you choose the DP version?

The DP version is worth choosing when the ice maker must stand under a counter, on an island, against a wall or in another position where traditional gravity drainage restricts installation. Brema also notes that such a machine is easier to reposition within the same bar or kitchen even after commissioning if the workflow layout changes.

Drain Pump brochure Download PDF → Official Brema leaflet about the integrated drain pump solution.

Brema Drain Pump pageOpen manufacturer information →
