Gastronorm trolley „Bartscher“ 7 × GN 1/1

Trolley for seven GN 1/1 containers

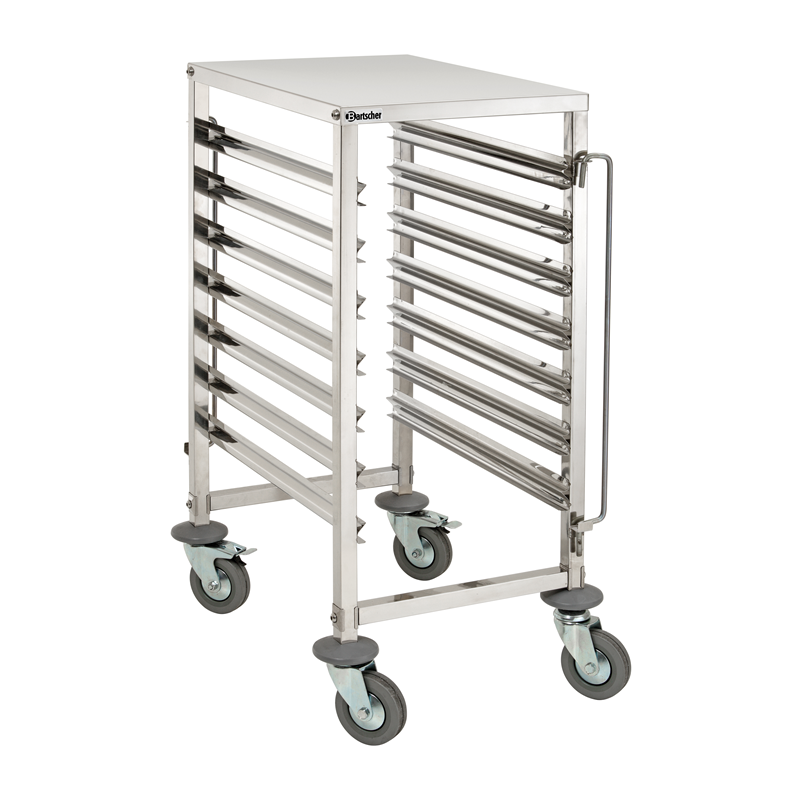

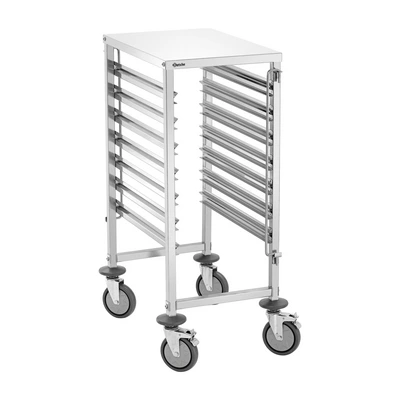

The „Bartscher“ 300192 is a stainless steel trolley with seven levels for GN containers and a shelf on top.

You use it to transport and clear away food in GN containers. The levels are 80 mm apart, and the runners take GN 1/1, 1/2, 1/3 and 2/3 containers up to 65 mm deep. Each level carries up to 8 kg and the trolley as a whole up to 60 kg.

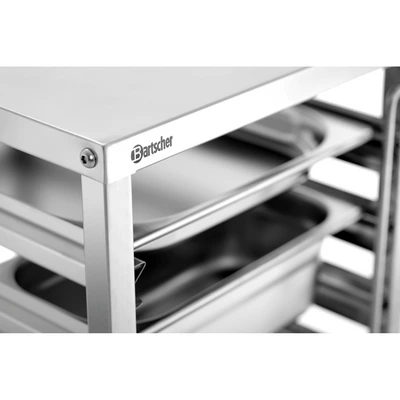

The frame is made from 25 × 25 mm square stainless steel tubing. On top there is a 390 × 555 mm shelf that takes up to 5 kg.

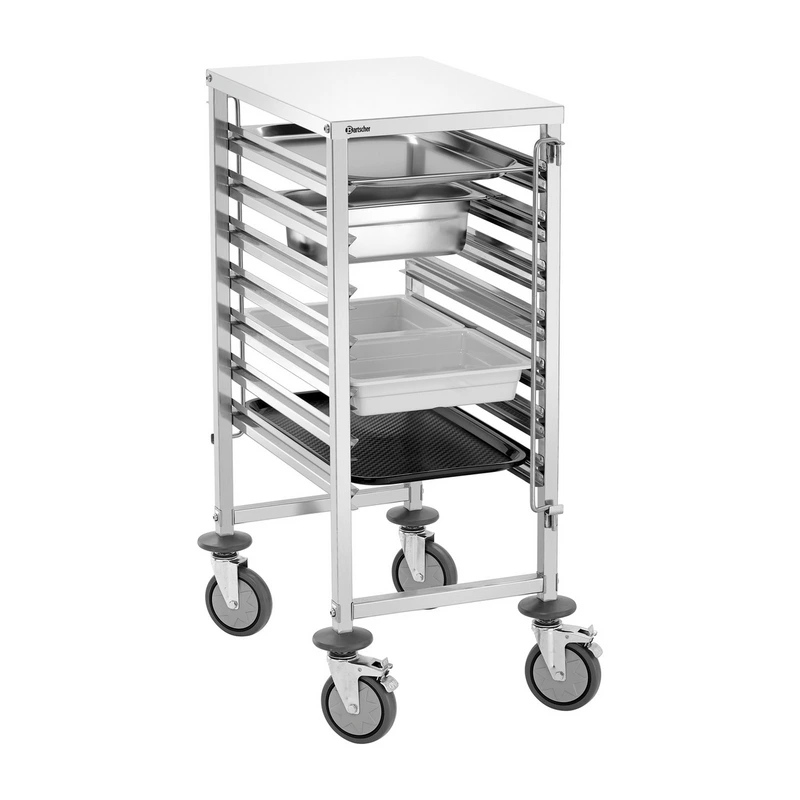

„Bartscher“ 7 × GN 1/1 gastronorm trolley with containers

Container locks

Containers stay in place in transit: there is a container lock at the front and another at the rear, and once the containers are in, you pull each lock up and fold it across them. The trolley loads from either end.

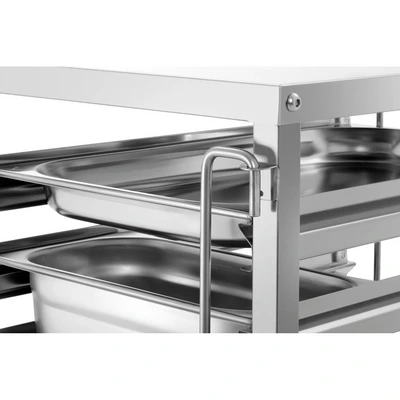

Container lock on the „Bartscher“ 300192 trolley

Castors

The trolley runs on four Ø 125 mm swivel castors, and the two braked castors hold it firmly in place. You level the trolley by screwing the castors in or out.

Four plastic buffers fitted to the corners of the frame above the castors protect walls and furniture.

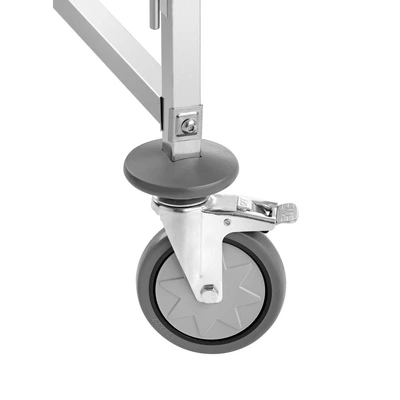

Braked castor with plastic buffer on the „Bartscher“ 300192 trolley

Comparison

If you need more levels, choose the 18 × GN 1/1 trolley: it holds eighteen containers and up to 80 kg in total on almost the same footprint.

Model	7 × GN 1/1 this model	18 × GN 1/1
Number of levels	7	18
Max. load	8 kg per level, 60 kg in total	10 kg per level, 80 kg in total
Top shelf	390 × 555 mm, up to 5 kg	—
Frame	25 × 25 mm tubing	26 × 26 mm tubing
Dimensions (W × D × H)	450 × 670 × 1,000 mm	445 × 670 × 1,890 mm
Weight	12.1 kg	21.3 kg

What’s included and assembly

The trolley is delivered flat-packed and is easy to assemble. The kit contains two side frames with the runners and container locks already fitted, the top shelf, two cross members, four castors (two with brakes), four buffers, screws with washers and an Allen key.

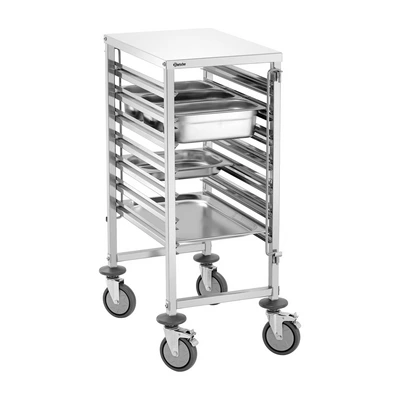

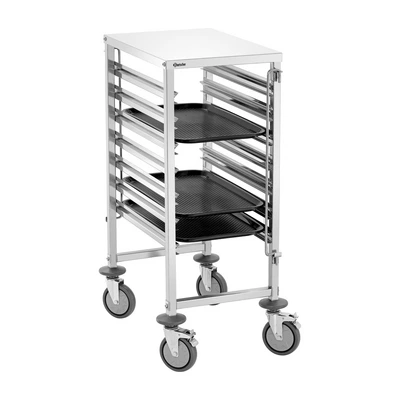

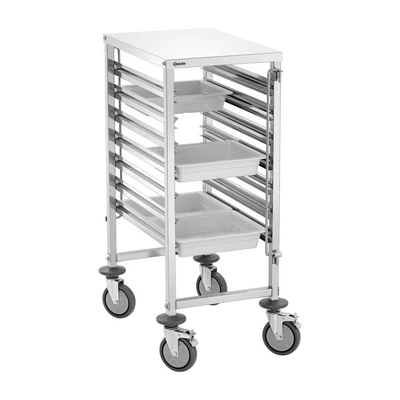

GN containers, trays and grids are available separately, for example GN 1/1, 20 mm, GN 1/1, 40 mm, perforated GN 1/1, 40 mm and GN 1/1, 65 mm. The photos show the trolley with containers and trays of this kind.

Dimensions and weight

The trolley is 450 mm wide, 670 mm deep and 1,000 mm high, and it weighs 12.1 kg.

Technical specifications

Manufacturer	„Bartscher“
Manufacturer code	300192
Suitable for	GN 1/1, 1/2, 1/3 and 2/3 containers
Number of levels	7
Distance between levels	80 mm
Max. container depth	65 mm
Max. load	8 kg per level, 60 kg in total
Top shelf	390 × 555 mm, up to 5 kg
Container locks	front and rear
Loading	from front and rear
Frame	25 × 25 mm square tubing
Material	stainless steel
Castors	4 swivel castors, Ø 125 mm, 2 with brakes
Castor buffers	plastic, 4 pcs
Supplied	flat-packed, easy to assemble
Dimensions (W × D × H)	450 × 670 × 1,000 mm
Weight	12.1 kg
Optional extras	GN containers, trays, grids

Transport trolley
Manufacturer	„Bartscher“
Manufacturer code	300192
Suitable for	GN 1/1, 1/2, 1/3 and 2/3 containers
Number of levels	7
Distance between levels	80 mm
Max. container depth	65 mm
Max. load	8 kg per level, 60 kg in total
Top shelf	390 × 555 mm, up to 5 kg
Container locks	front and rear
Loading	from front and rear
Frame	25 × 25 mm square tubing
Material	stainless steel
Castors	4 swivel castors, Ø 125 mm, 2 with brakes
Castor buffers	plastic, 4 pcs
Supplied	flat-packed, easy to assemble
Dimensions (W × D × H)	450 × 670 × 1,000 mm
Weight	12.1 kg
Optional extras	GN containers, trays, grids
