Gastronorm trolley „Bartscher“ 7 × GN 1/1

Trolley for seven GN 1/1 containers

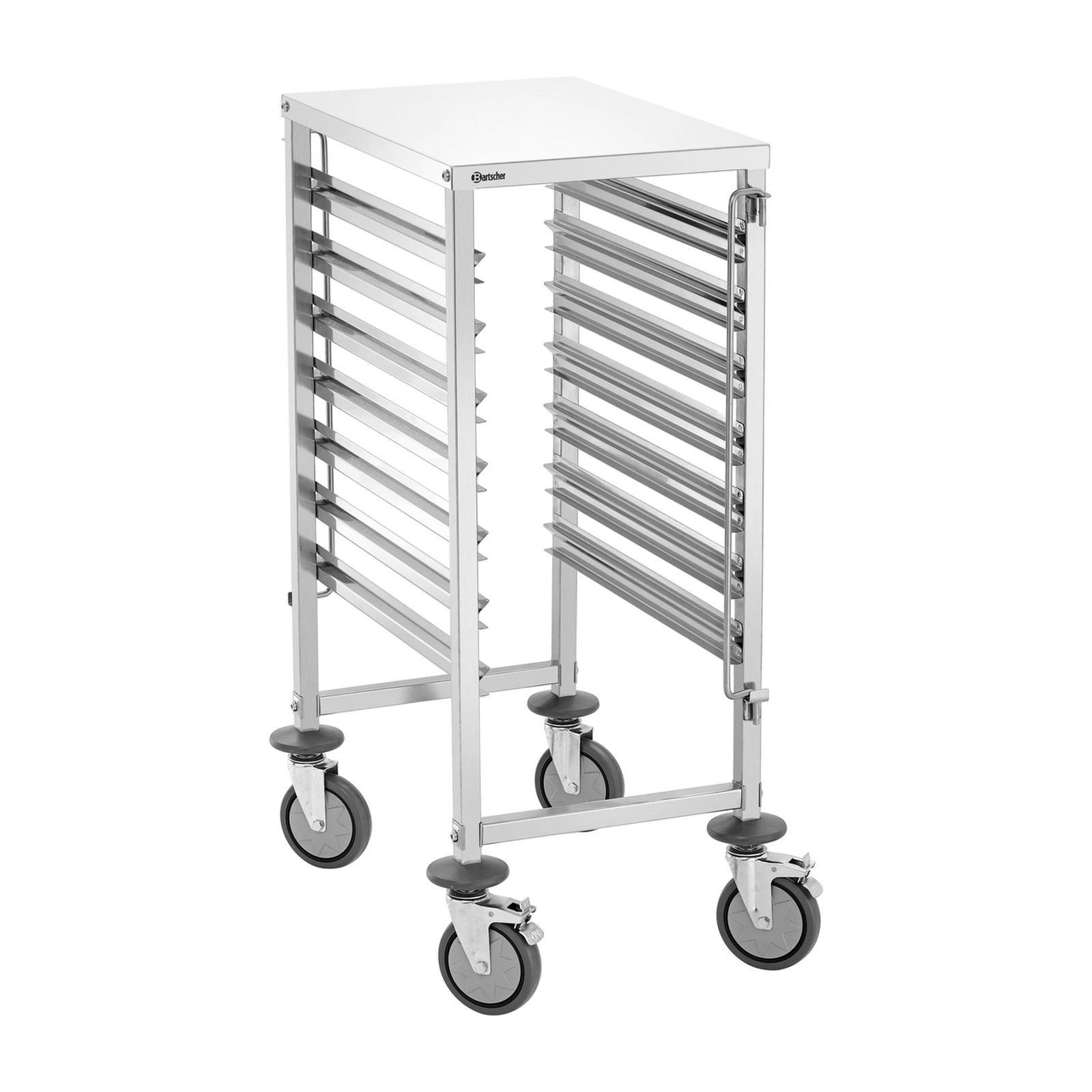

The „Bartscher“ 300192 is a stainless steel trolley with seven levels for GN containers and a shelf on top.

According to the manual, it is intended for clearing away and transporting food in suitable containers. The levels are 80 mm apart, and the runners take GN 1/1, 1/2, 1/3 and 2/3 containers up to 65 mm deep. Each level carries up to 8 kg and the trolley as a whole up to 60 kg.

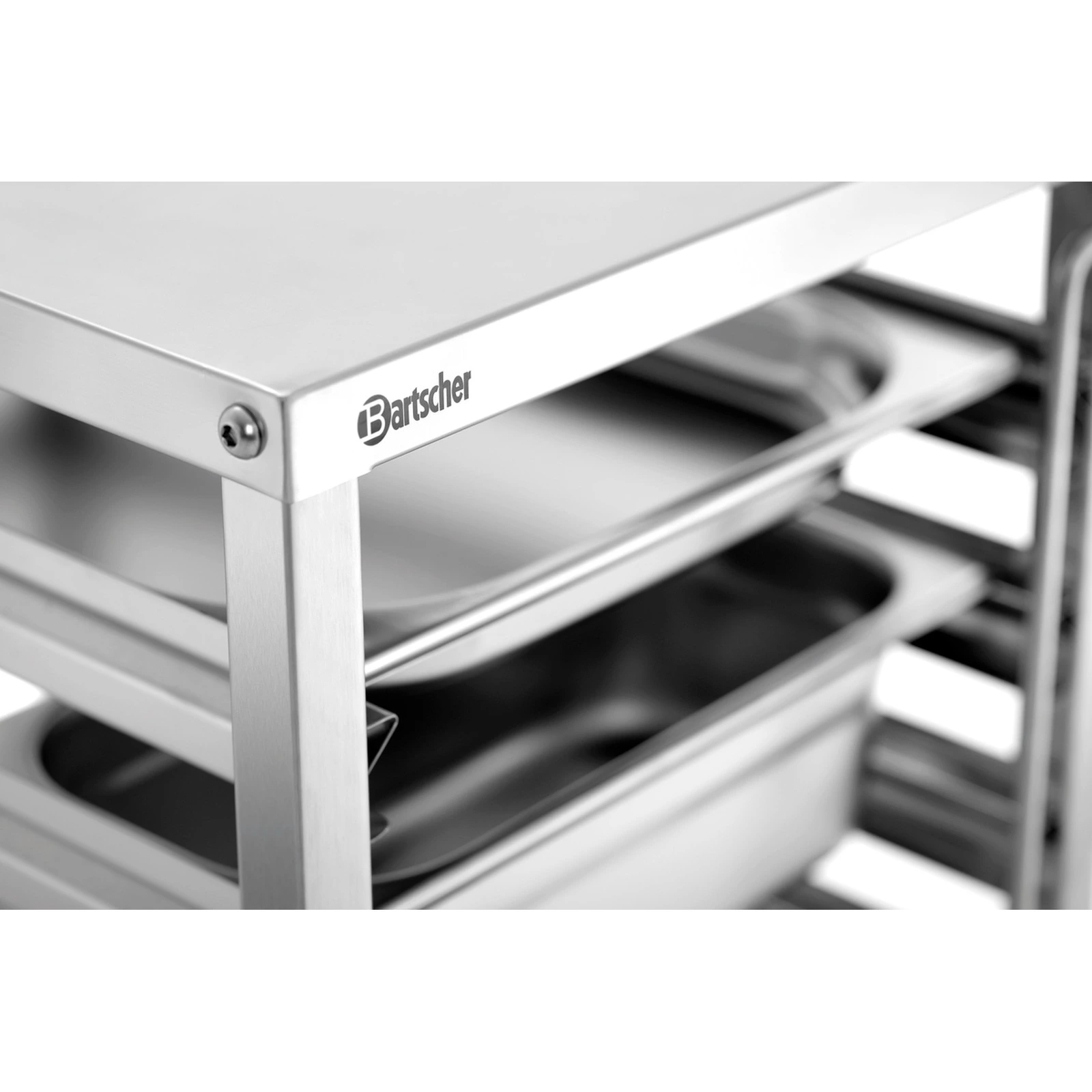

The frame is made from 25 × 25 mm square stainless steel tubing. On top there is a 390 × 555 mm shelf that takes up to 5 kg.

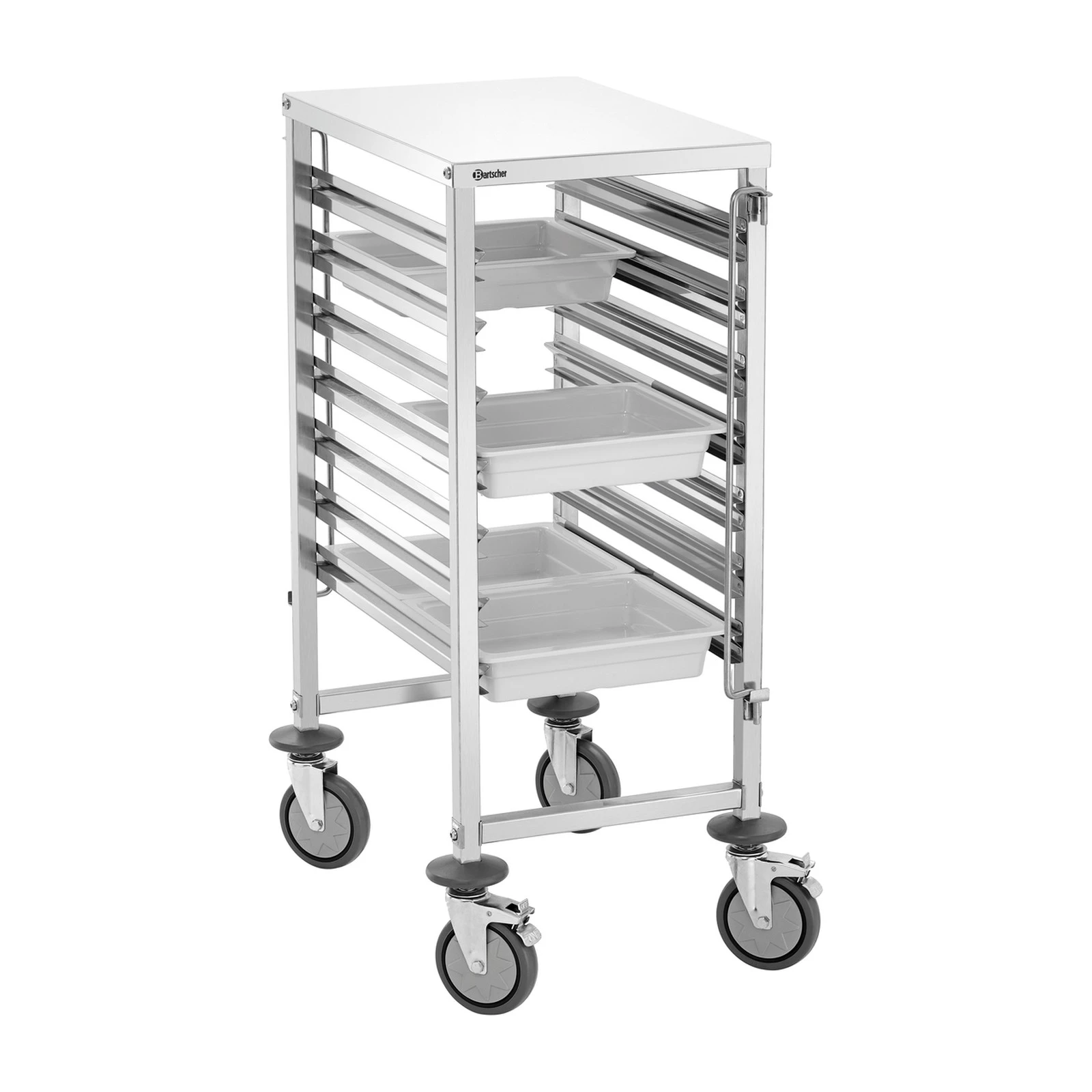

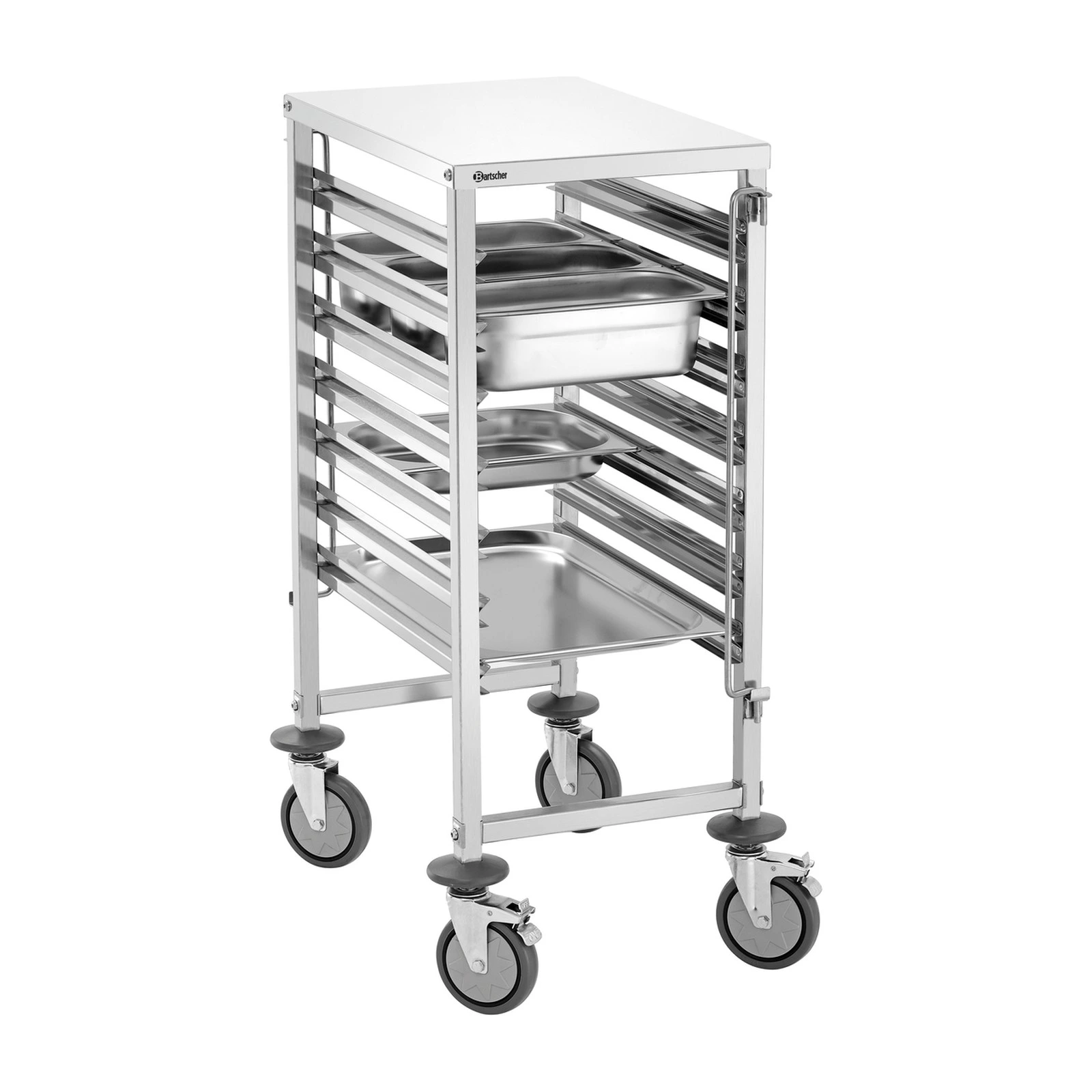

„Bartscher“ 7 × GN 1/1 gastronorm trolley with containers

Container locks

The trolley can be loaded from either end, and there is a container lock at the front and another at the rear. Once the containers are in, pull each lock up and fold it across the containers to stop them sliding out in transit.

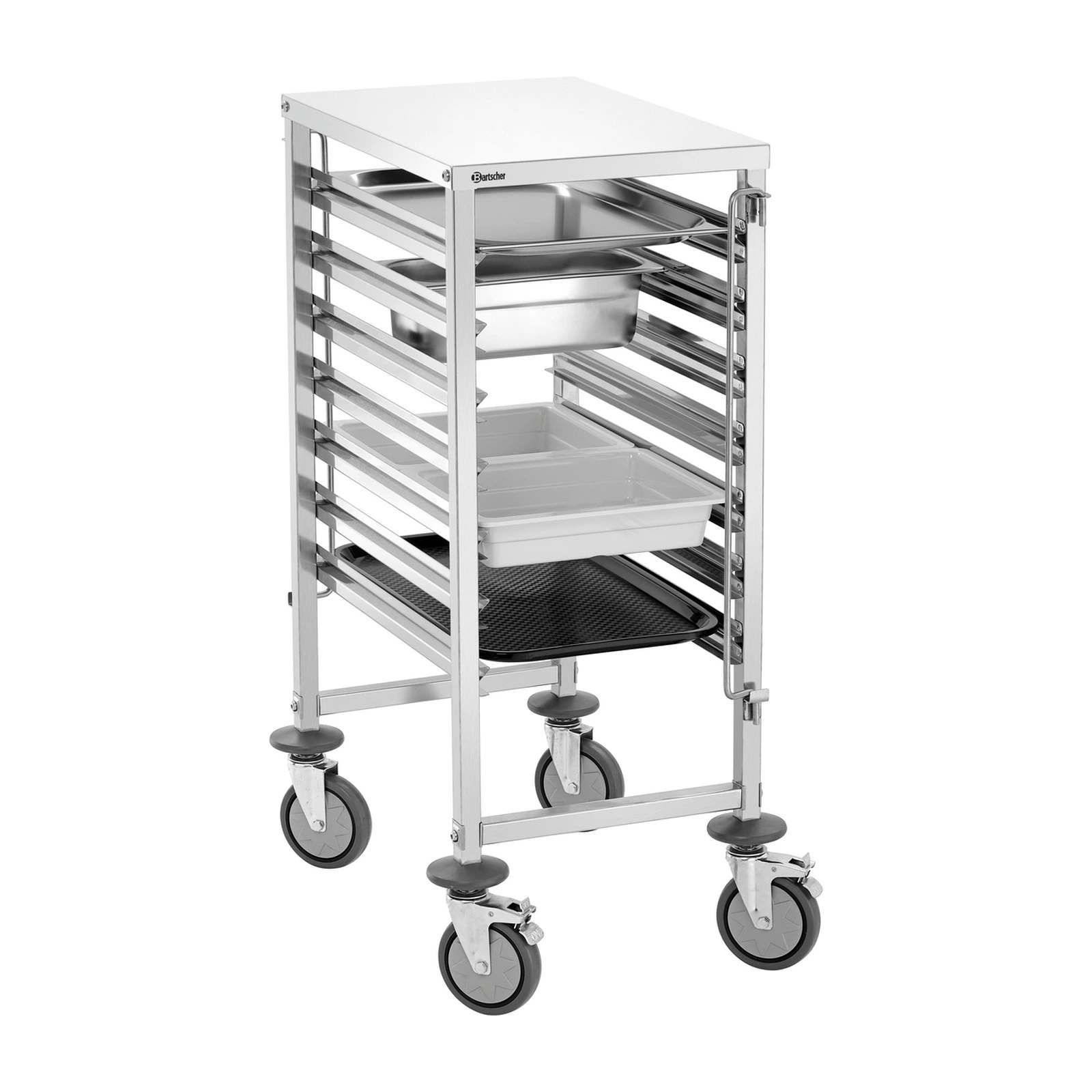

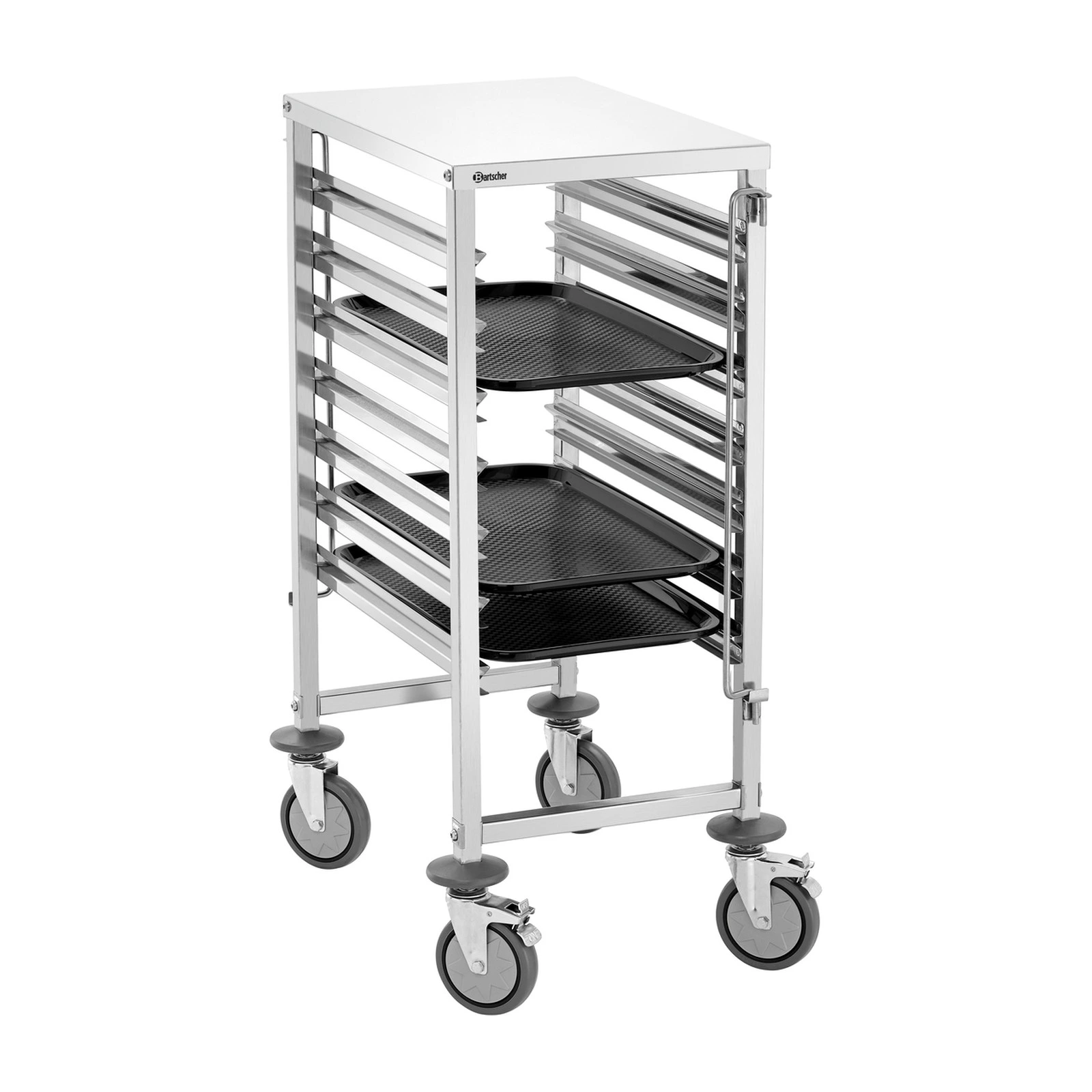

The GN containers and trays shown in the photos are not included and are sold separately.

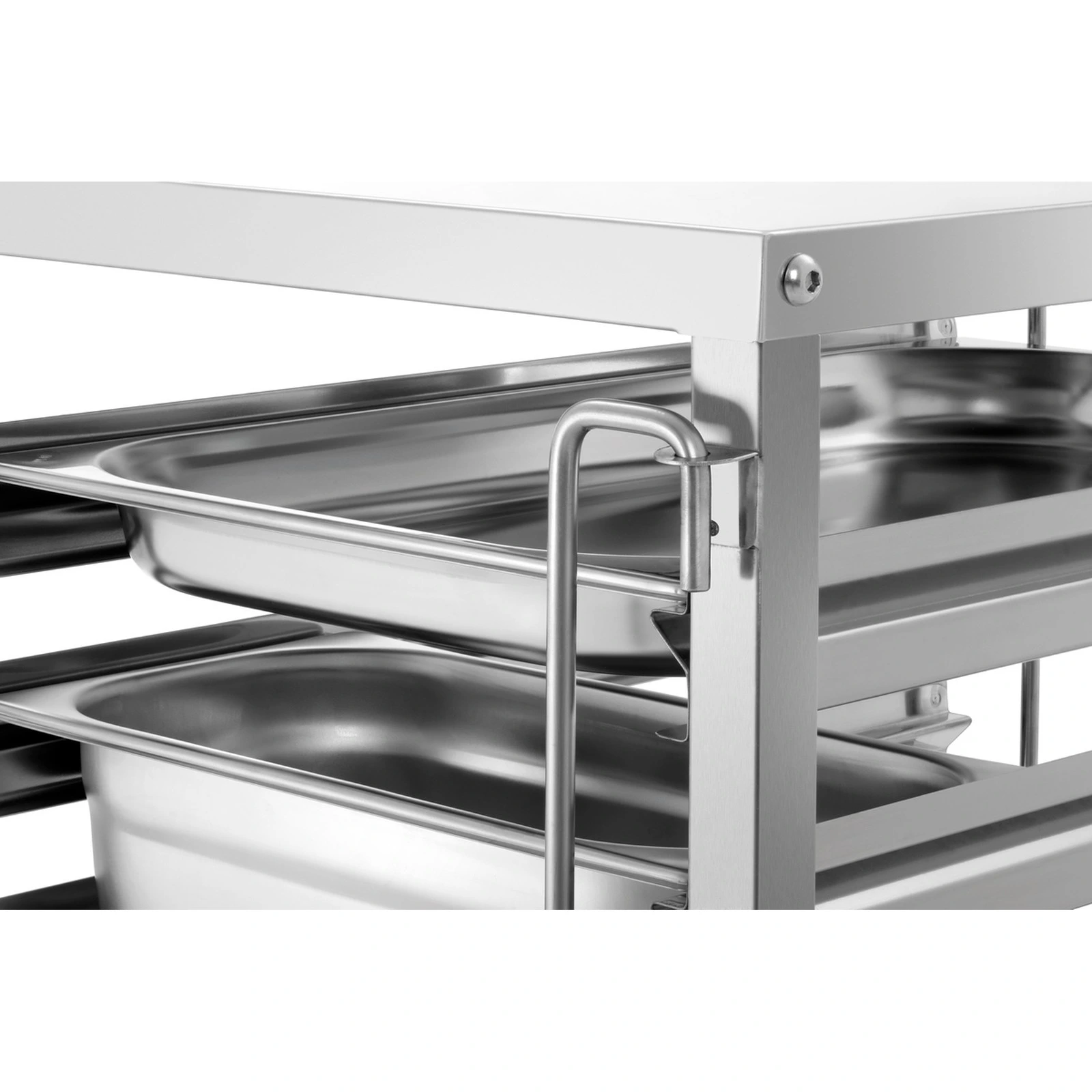

Container lock on the „Bartscher“ 300192 trolley

Castors

The trolley runs on four Ø 125 mm swivel castors, two of them with brakes. The trolley can be levelled by screwing the castors in or out. Once it is in place, apply the brakes so that it cannot be moved or tipped over by accident.

Four plastic buffers fitted to the corners of the frame above the castors protect walls and furniture.

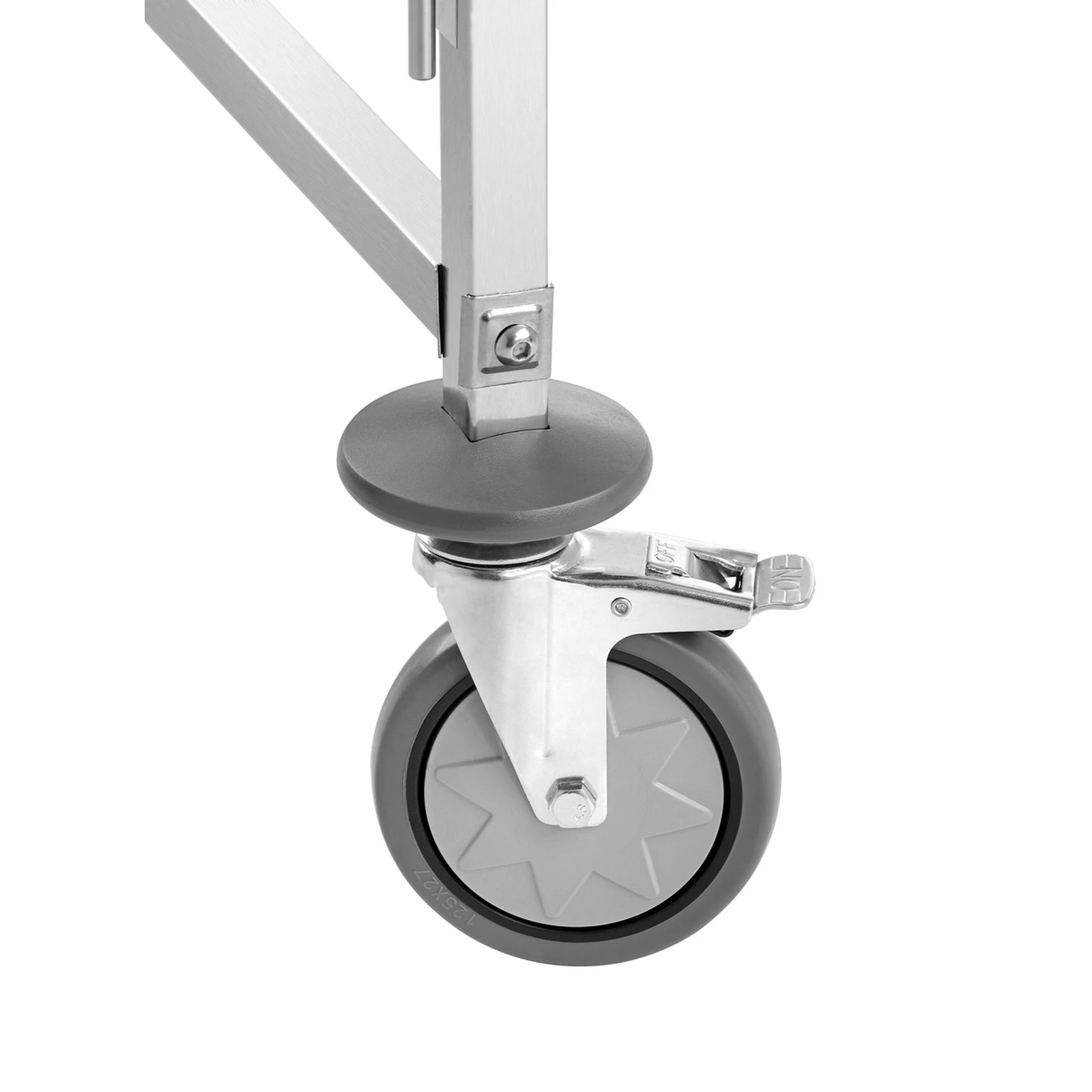

Braked castor with plastic buffer on the „Bartscher“ 300192 trolley

Assembly and care

The trolley is delivered flat-packed. The kit contains two side frames with the runners and container locks already fitted, the top shelf, two cross members, four castors (two with brakes), four buffers, screws with washers and an Allen key. The manual illustrates each assembly step. Fit the two braked castors at one end and the other two at the opposite end.

Clean the trolley regularly with warm water and a soft damp cloth, using a mild detergent if needed, then dry it. Use only cleaners suitable for stainless steel: abrasive, solvent-based or caustic products can damage the surface.

Dimensions and weight

The trolley is 450 mm wide, 670 mm deep and 1,000 mm high, and it weighs 12.1 kg. GN containers, trays and grids are not included.

Technical specifications

Manufacturer„Bartscher“
Manufacturer code300192
Suitable forGN 1/1, 1/2, 1/3 and 2/3 containers
Number of levels7
Distance between levels80 mm
Max. container depth65 mm
Max. load8 kg per level, 60 kg in total
Top shelf390 × 555 mm, up to 5 kg
Container locksfront and rear
Loadingfrom front and rear
Frame25 × 25 mm square tubing
Materialstainless steel
Castors4 swivel castors, Ø 125 mm, 2 with brakes
Castor buffersplastic, 4 pcs
Handlesnone
Suppliedflat-packed, easy to assemble
Dimensions (W × D × H)450 × 670 × 1,000 mm
Weight12.1 kg
Not includedGN containers, trays, grids
Transport trolley
Manufacturer „Bartscher“
Manufacturer code 300192
Suitable for GN 1/1, 1/2, 1/3 and 2/3 containers
Number of levels 7
Distance between levels 80 mm
Max. container depth 65 mm
Max. load 8 kg per level, 60 kg in total
Top shelf 390 × 555 mm, up to 5 kg
Container locks front and rear
Loading from front and rear
Frame 25 × 25 mm square tubing
Material stainless steel
Castors 4 swivel castors, Ø 125 mm, 2 with brakes
Castor buffers plastic, 4 pcs
Handles none
Supplied flat-packed, easy to assemble
Dimensions (W × D × H) 450 × 670 × 1,000 mm
Weight 12.1 kg
Not included GN containers, trays, grids
Manufacturer product page: Open manufacturer page

Write your review

Manufacturer:
Bartscher
Code:
300192
186.00 € (Excl. VAT)

Similar products

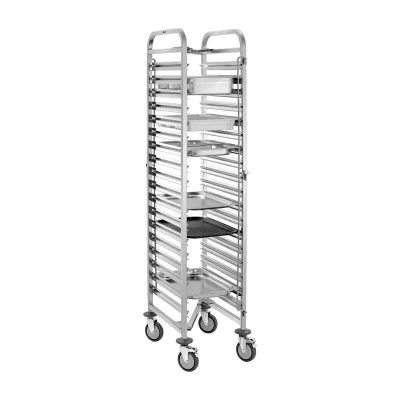

Gastronorm trolley „Bartscher“ 18 × GN 1/1
