Meat mixer „Sirman“ IP 20 M

Table-top meat mixer, 28 L

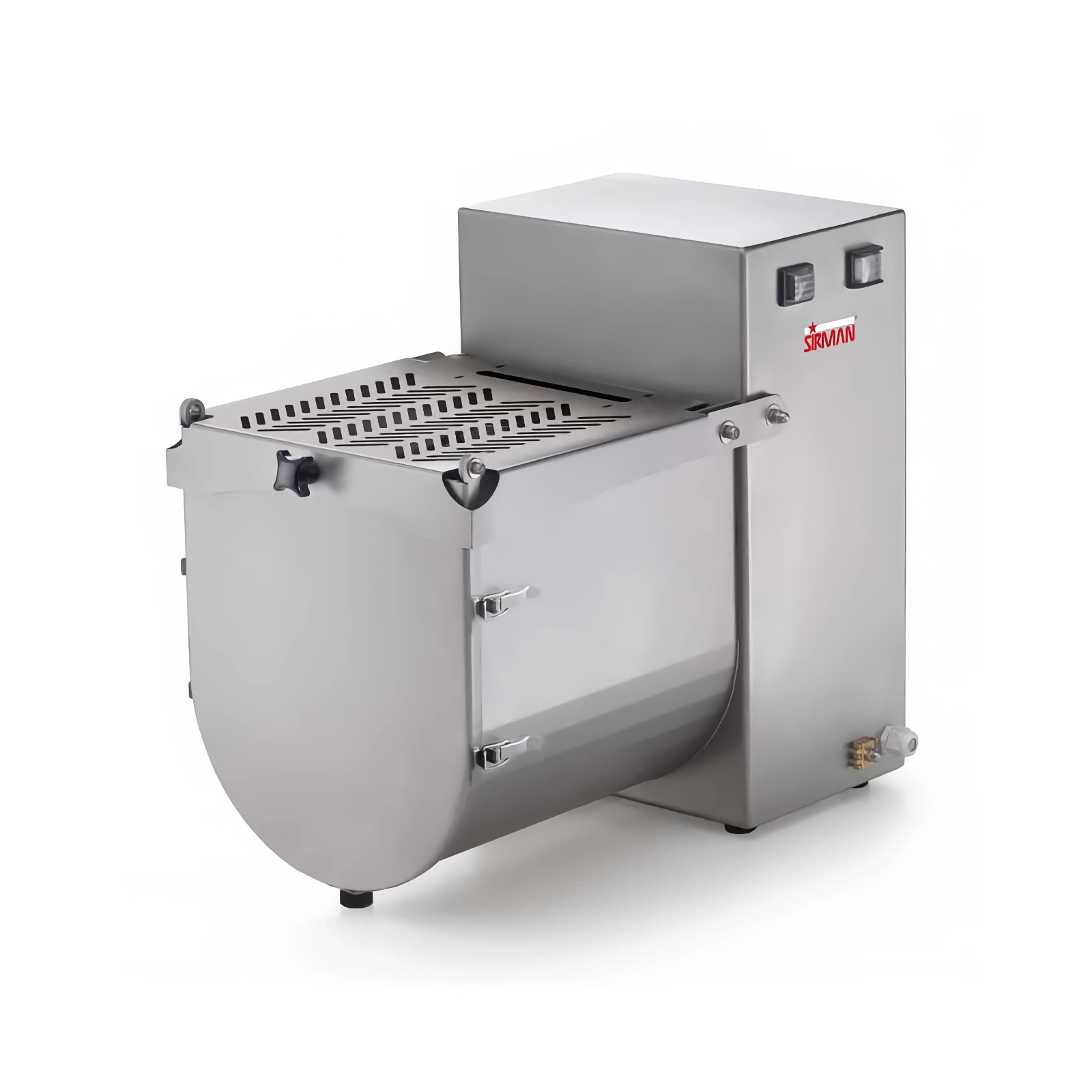

The IP 20 M is a compact „Sirman“ mixer that blends mince with salt, spices and other ingredients. Its 28 L bowl holds up to 20 kg of mince.

„Sirman“ designed it for butcher's shops and restaurants that mix mince in small batches. According to the manual, it is designed for mixing meat, for example sausage meat. It needs a sturdy worktop and a single-phase 230 V supply.

The body, mixing bowl, front cover, safety grille and mixing paddle are all made of AISI 304 stainless steel.

Mixing and controls

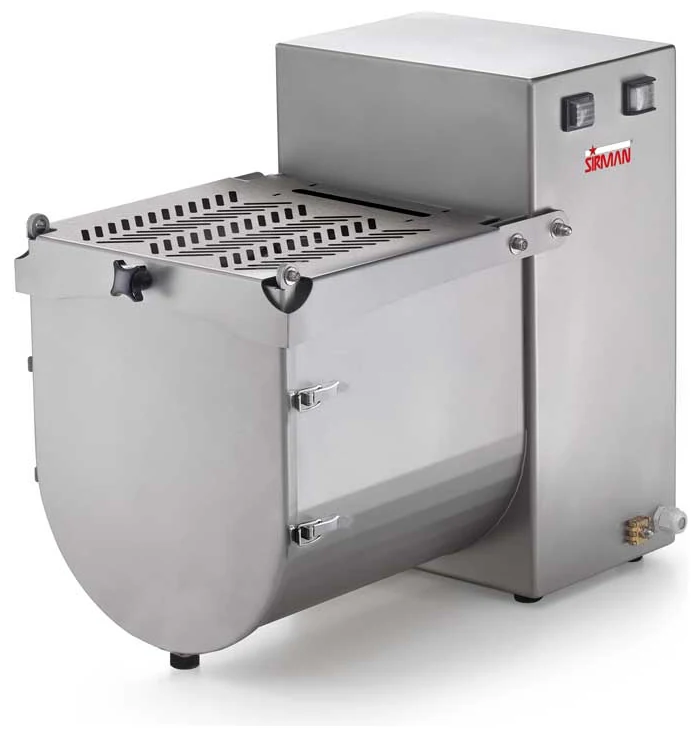

With the mixer switched off, load the mince into the bowl without heaping it above the rim. Close the safety grille and start the mixer with the white switch, which has a mains-on light. If the grille is raised, a microswitch stops the mixer automatically.

A 370 W (0.5 hp) fan-cooled asynchronous motor rated IPX5 drives the paddle through a gearbox with hardened and ground helical gears. The gearbox has a double oil seal, and its lubricant never needs changing.

The black reverse switch changes the paddle's direction of rotation: switch the mixer off, flip the reverse switch, then restart the mixer with the white switch. Both switches are rated IP54.

The mixer is not designed for continuous operation: after each mixing cycle, leave it switched off for a few minutes.

Unloading and cleaning

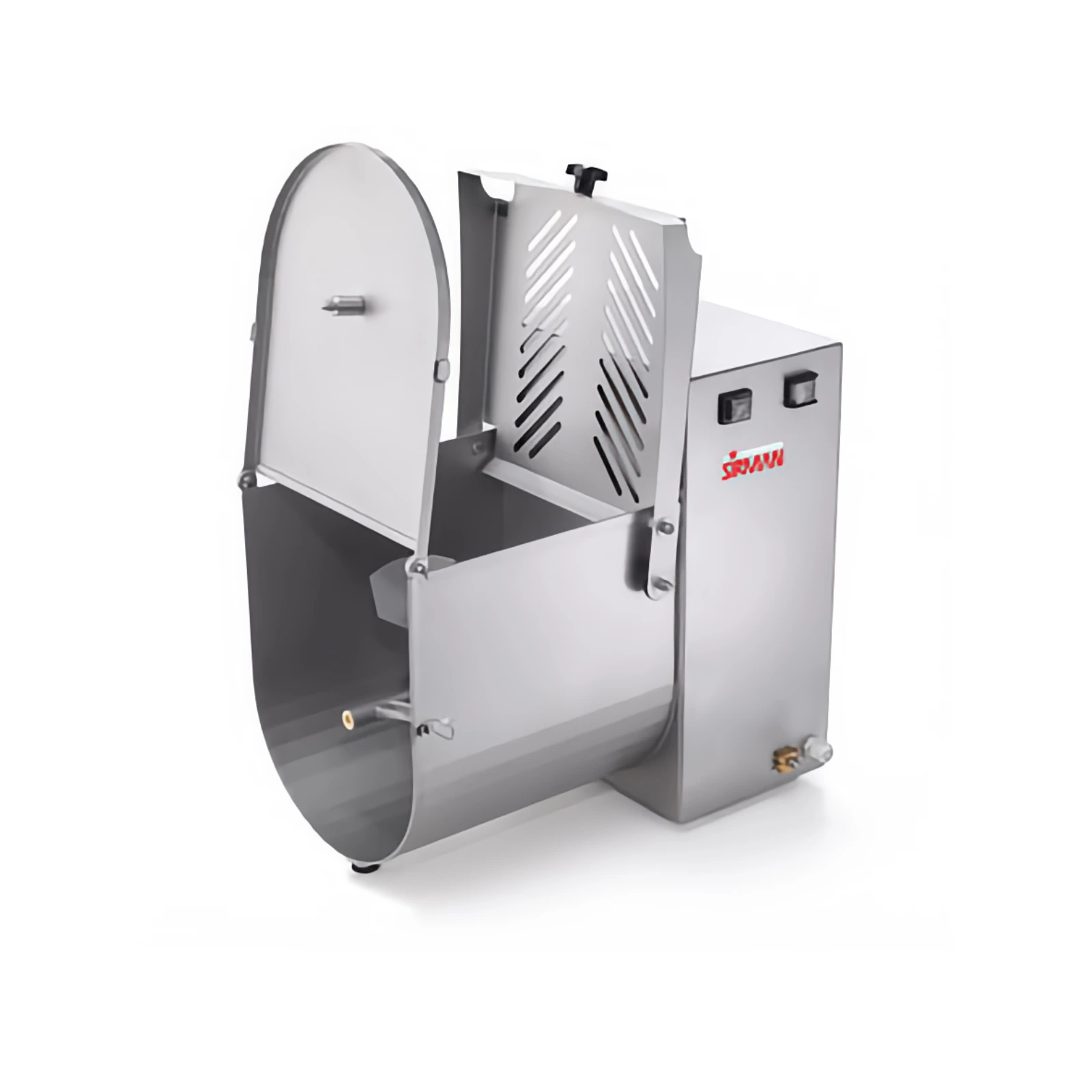

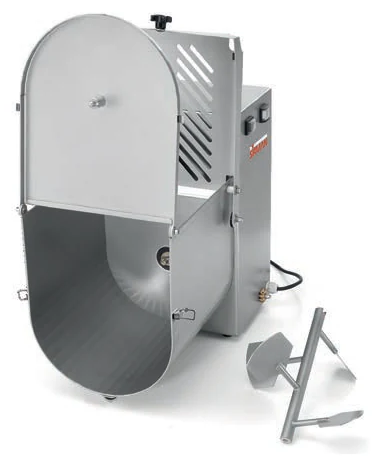

The mince comes out at the front: switch the mixer off and unplug it, raise the safety grille, undo the front cover catches and raise the cover.

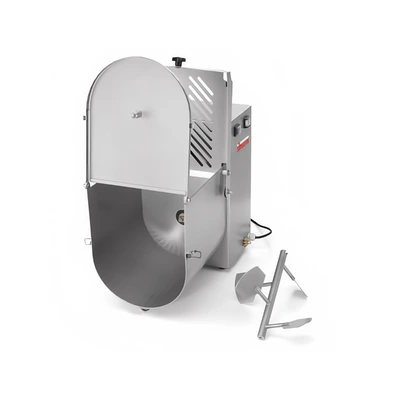

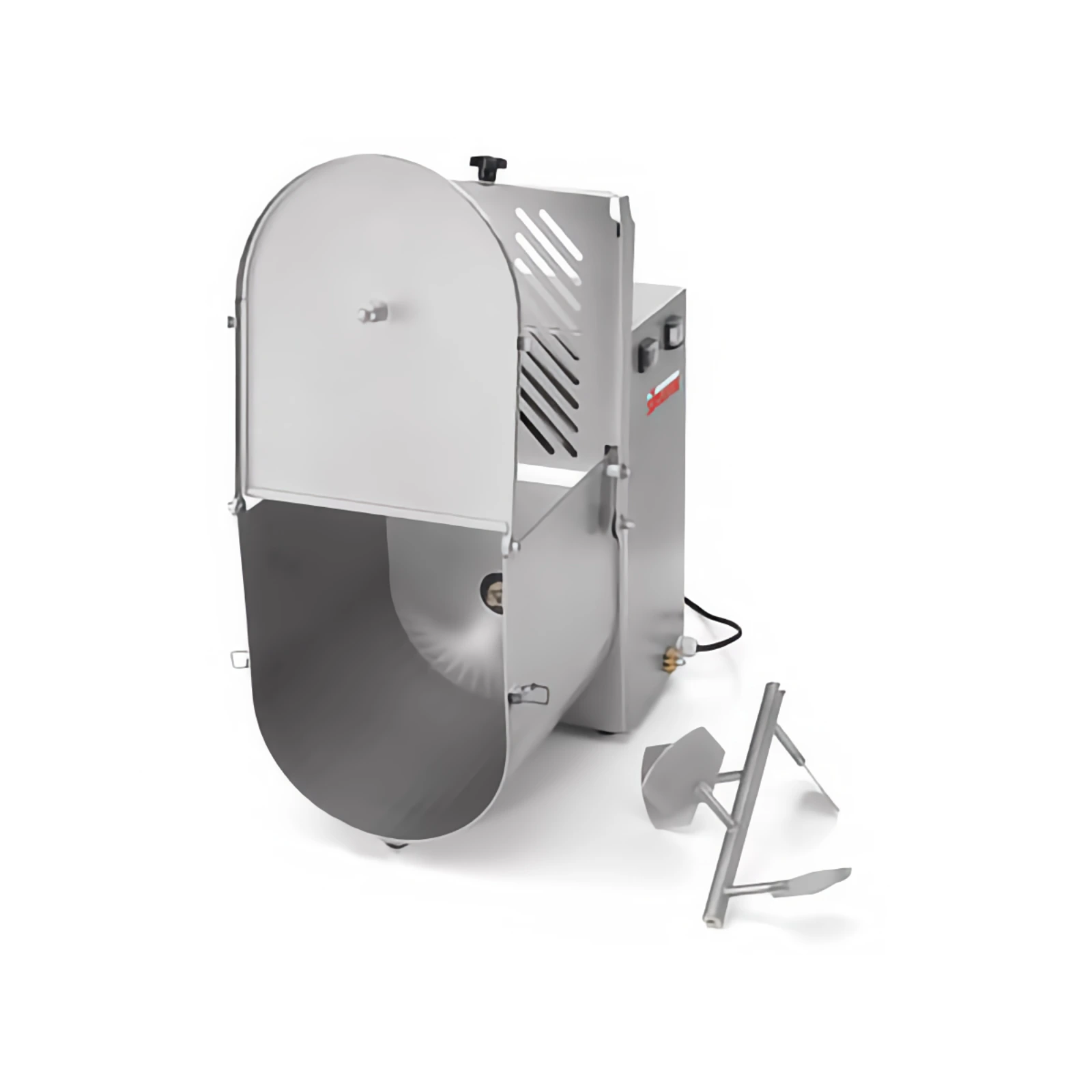

The mixing paddle comes out without tools — just grip it and pull — leaving a smooth bowl that is easy to clean. To refit the paddle, reverse the steps: push it back into place, lower the front cover and fasten the catches, then lower the grille.

At the end of every shift, unplug the mixer, then clean and sanitise it. Use a sponge, water and a neutral (pH 7), non-toxic, food-safe degreaser. Never use petrol, solvents or other flammable liquids.

Dimensions and installation

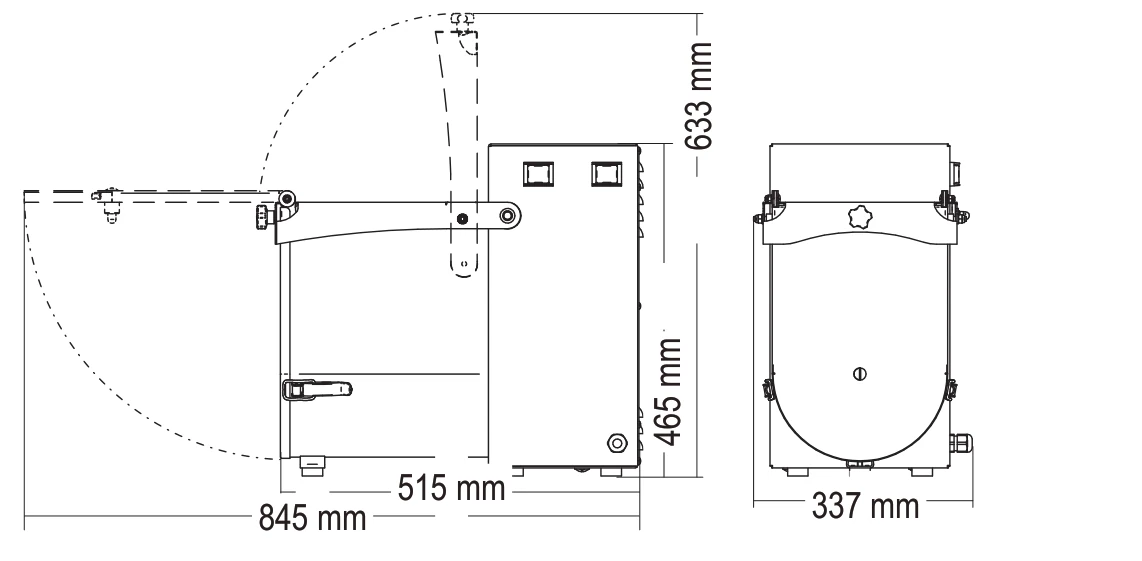

The mixer is 337 mm wide, 515 mm deep and 465 mm high. With the safety grille raised it is 633 mm high, and with the front cover raised it is 845 mm deep, so leave free space above and in front of it. It weighs 27 kg, so two people are needed to move it by hand.

The 370 W mixer connects to a single-phase 230 V, 50 Hz supply. The power cable is about 1.5 m long (3 × 1.5 mm²). The socket must be earthed, and the circuit must be protected by a residual current circuit breaker with overcurrent protection (RCBO). Place the mixer on a level, stable surface with enough room around it for work and servicing.

Supplied with

The mixer comes with its mixing paddle and a user manual. A special paddle for canederli (bread dumpling) mixture is available as an optional extra.
