Horizontal bowl cutter „Sirman“ Katana 6 (6 L)

Add to Cart
  • Horizontal bowl cutter „Sirman“ Katana 6 (6 L)
  • Horizontal bowl cutter „Sirman“ Katana 6 (6 L)
  • Horizontal bowl cutter „Sirman“ Katana 6 (6 L)
  • Horizontal bowl cutter „Sirman“ Katana 6 (6 L)
  • Horizontal bowl cutter „Sirman“ Katana 6 (6 L)

Horizontal bowl cutter „Sirman“ Katana 6 (6 L)

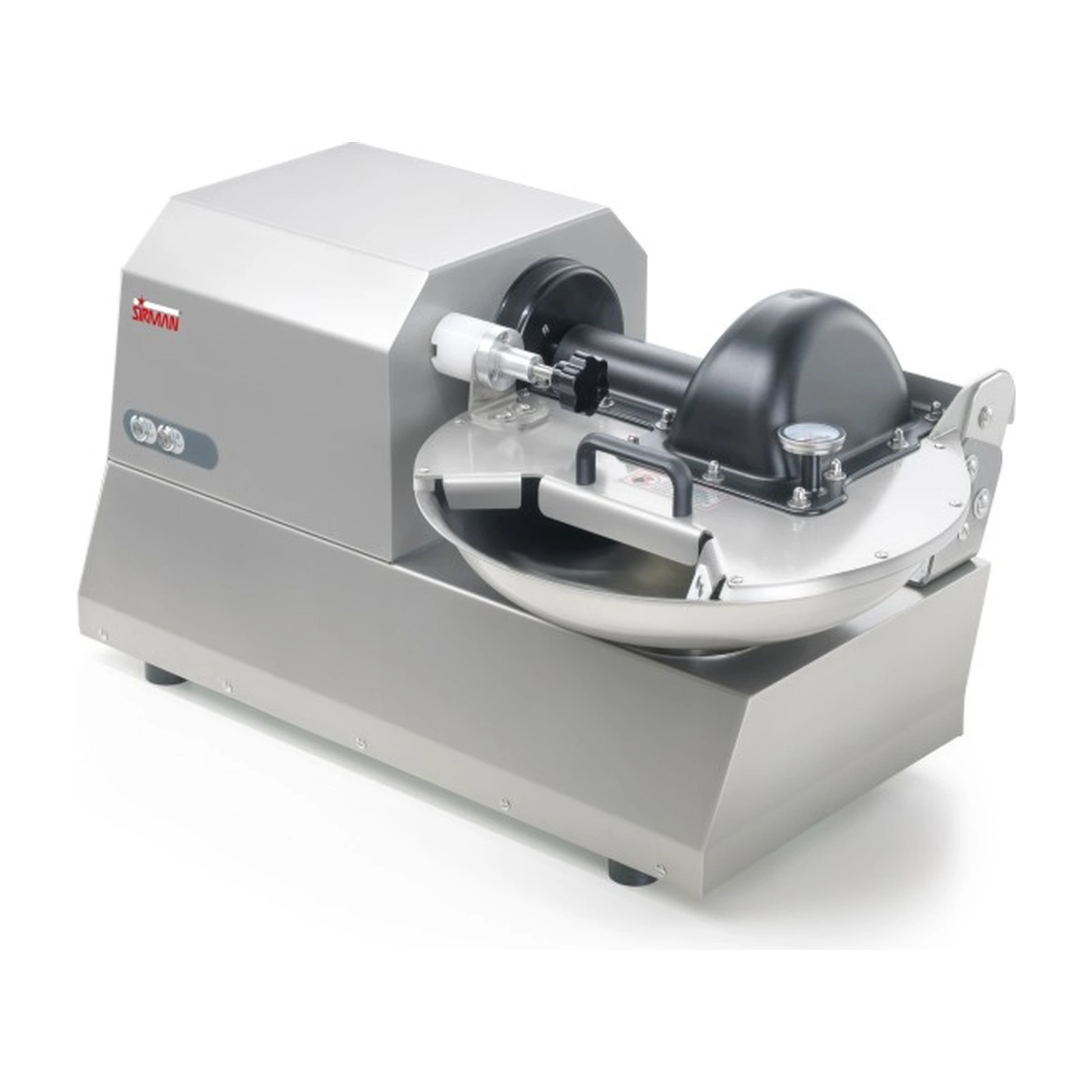

„Sirman“ Katana 6 — a horizontal bowl cutter for the meat room

A rotating 6 L bowl and three blades instead of a vertical jar.

The Katana works differently from a bench-top C-Tronic: the product lies in a rotating horizontal bowl and passes the blade hub many times over. The result is a more even texture without overheating — the classic technology for charcuterie, sausage and pâté.

A 6 L bowl and a 370 W asynchronous motor at 1,440 rpm suit a butchery, a restaurant production room or a delicatessen. The machine is available in single or three phase — choose in the cart.

It is not limited to meat: fish, vegetables, cheeses and many other products work just as well.

Horizontal bowl cutter „Sirman“ Katana 6

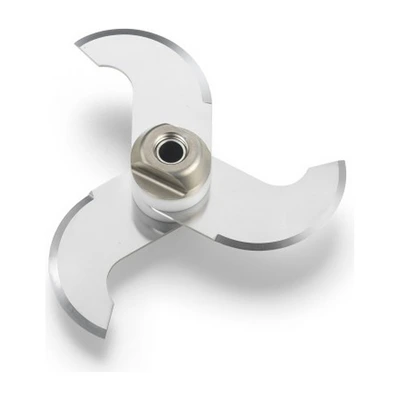

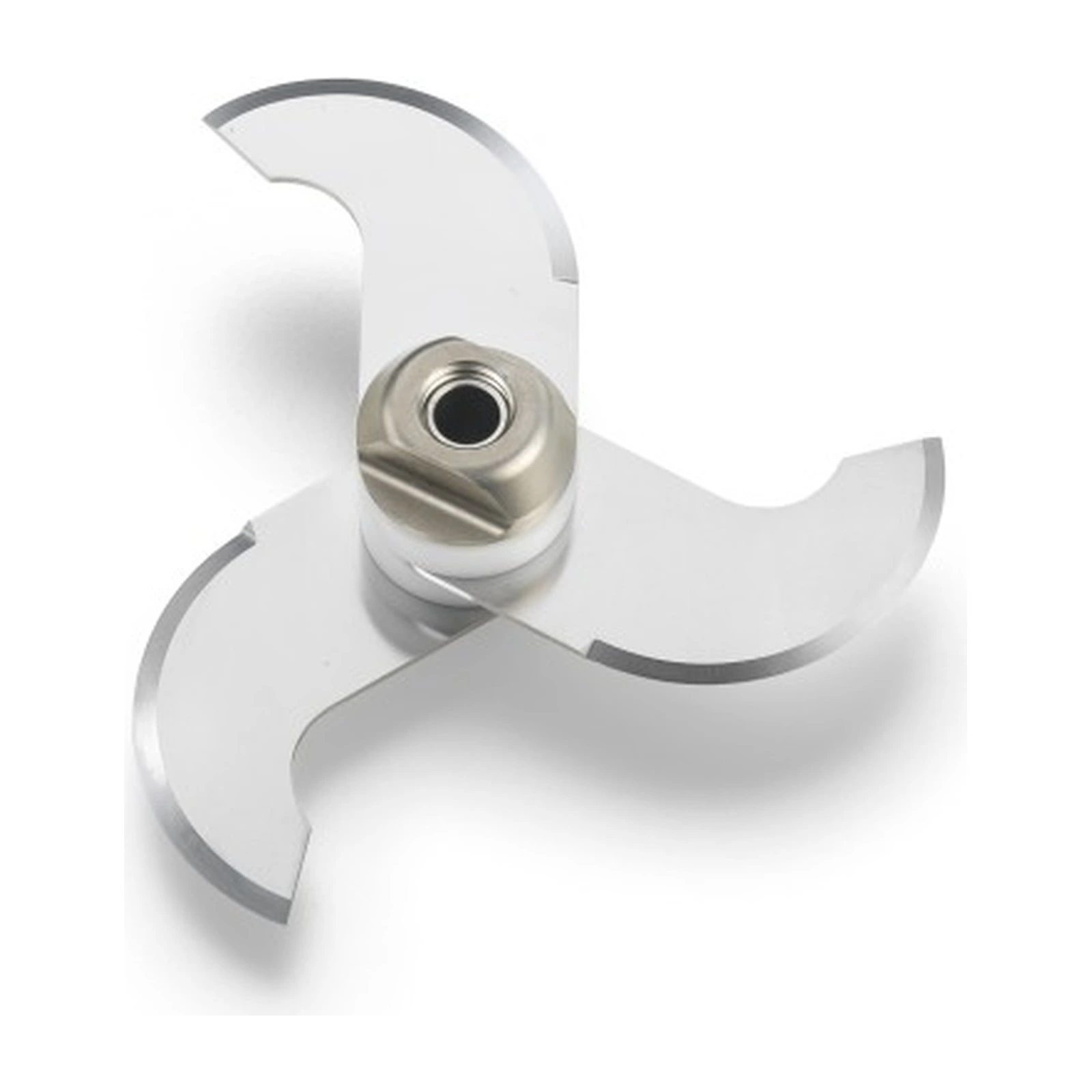

Three-blade hub, removable without tools

A three-blade hub is supplied as standard and can be reconfigured to two blades when a coarser texture is required. The hub comes off without tools, so changing blades and cleaning takes a minute.

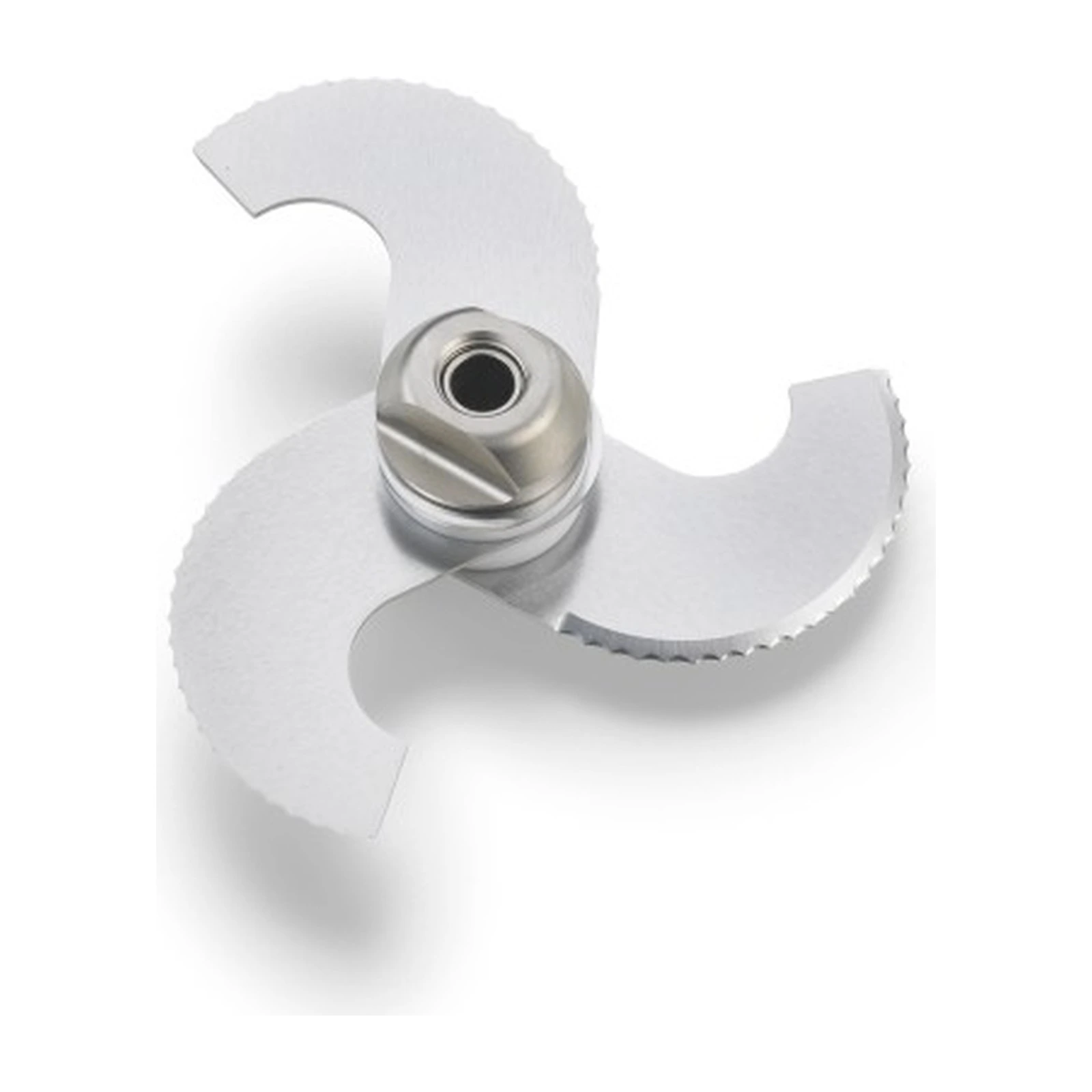

For special work the manufacturer offers hubs with blunted, serrated or unsharpened blades — from finely emulsified forcemeat to coarse chopping or plain mixing.

Three-blade hub, removable without tools

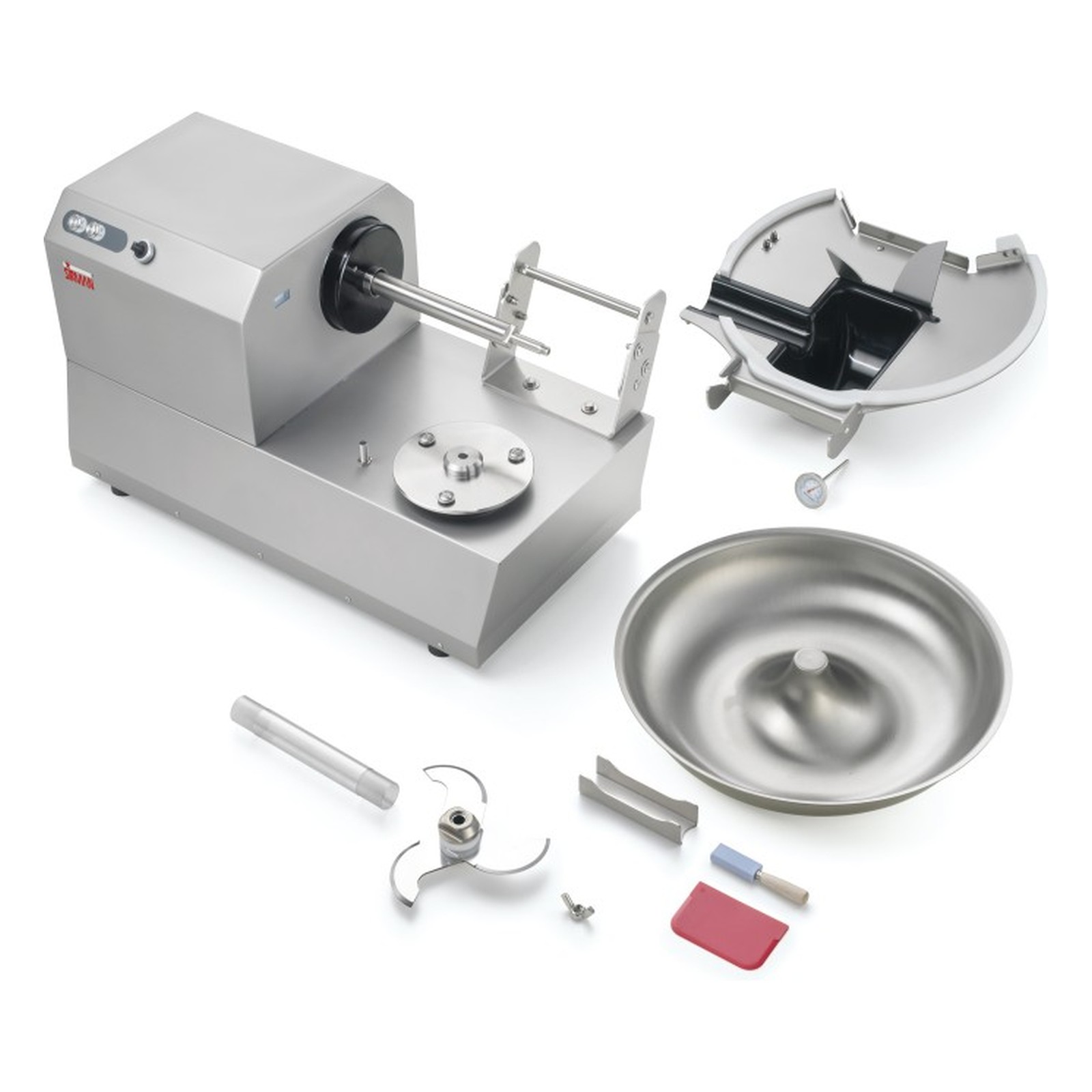

Entirely AISI 304 stainless steel

Body, bowl and lid are made of AISI 304 stainless steel — the material meat processing hygiene rules call for, and one that takes daily washdown with aggressive detergents without complaint.

Bowl and lid are removable without tools, and the shaft has reinforced protection against liquid infiltration — the assembly that fails most often on horizontal cutters. Controls are stainless steel buttons rated IP 67.

Entirely AISI 304 stainless steel

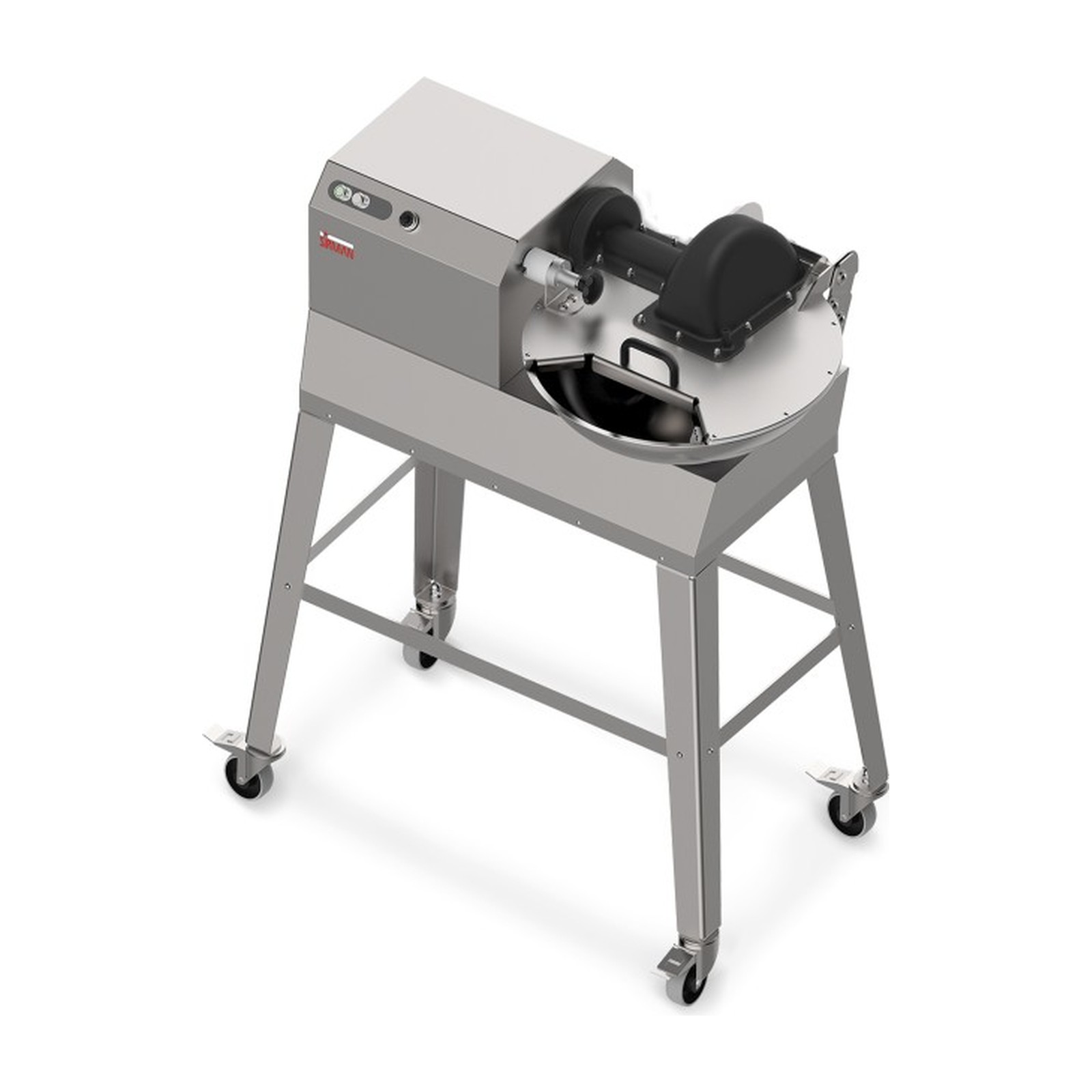

Installation options

The cutter sits on a worktop as standard. Adjustable feet or stainless steel legs with lockable wheels are available to order, turning the machine into a free-standing unit that is easy to roll aside for cleaning.

Wheeled legs are particularly useful in a production room where floors are washed daily and equipment has to be pulled away from the wall.

Installation options

Technical specifications

Power370 W (0.5 hp)
Voltage230 V single phase or 400 V three phase
Motorasynchronous, ventilated
Bowl capacity6 L
Blades3 (configurable to 2)
Speed1,440 rpm
Speed controlfixed speed
Dimensions (W × D × H)832 × 582 × 695 mm (height with lid raised)
Working height407 mm
Net weight60 kg
Gross weight79.5 kg
Shipping dimensions670 × 1,200 × 800 mm
BodyAISI 304 stainless steel
Bowlremovable, AISI 304 stainless steel
Lidstainless steel with high-resistance Kepital hood
Controlsstainless steel buttons, IP 67
Safetyinterlocking lid, reinforced shaft protection against liquids
Manufacturer code40793052
Made inItaly
Bowl cutter
Manufacturer Sirman
Model Katana 6
Manufacturer code 40793052 (230 V) / 40793053 (400 V)
Bowl capacity 6 L
Power 370 W (0.5 hp)
Voltage 230 V single phase or 400 V three phase
Speed 1,440 rpm
Blades 3 (configurable to 2)
Speed control fixed speed
Motor asynchronous, ventilated
Dimensions (W × D × H) 832 × 582 × 695 mm (height with lid raised)
Working height 407 mm
Net weight 60 kg
Body AISI 304 stainless steel
Bowl removable, AISI 304 stainless steel
Lid stainless steel with high-resistance Kepital hood
Controls stainless steel buttons, IP 67
Safety interlocking lid, reinforced shaft protection against liquids
Made in Italy
Manufacturer product page: Open manufacturer page

Write your review

Manufacturer:
Sirman
Code:
40793052
2,772.00 € (Excl. VAT)
Voltage
