Horizontal bowl cutter „Sirman“ Katana 20 VV (20 L)

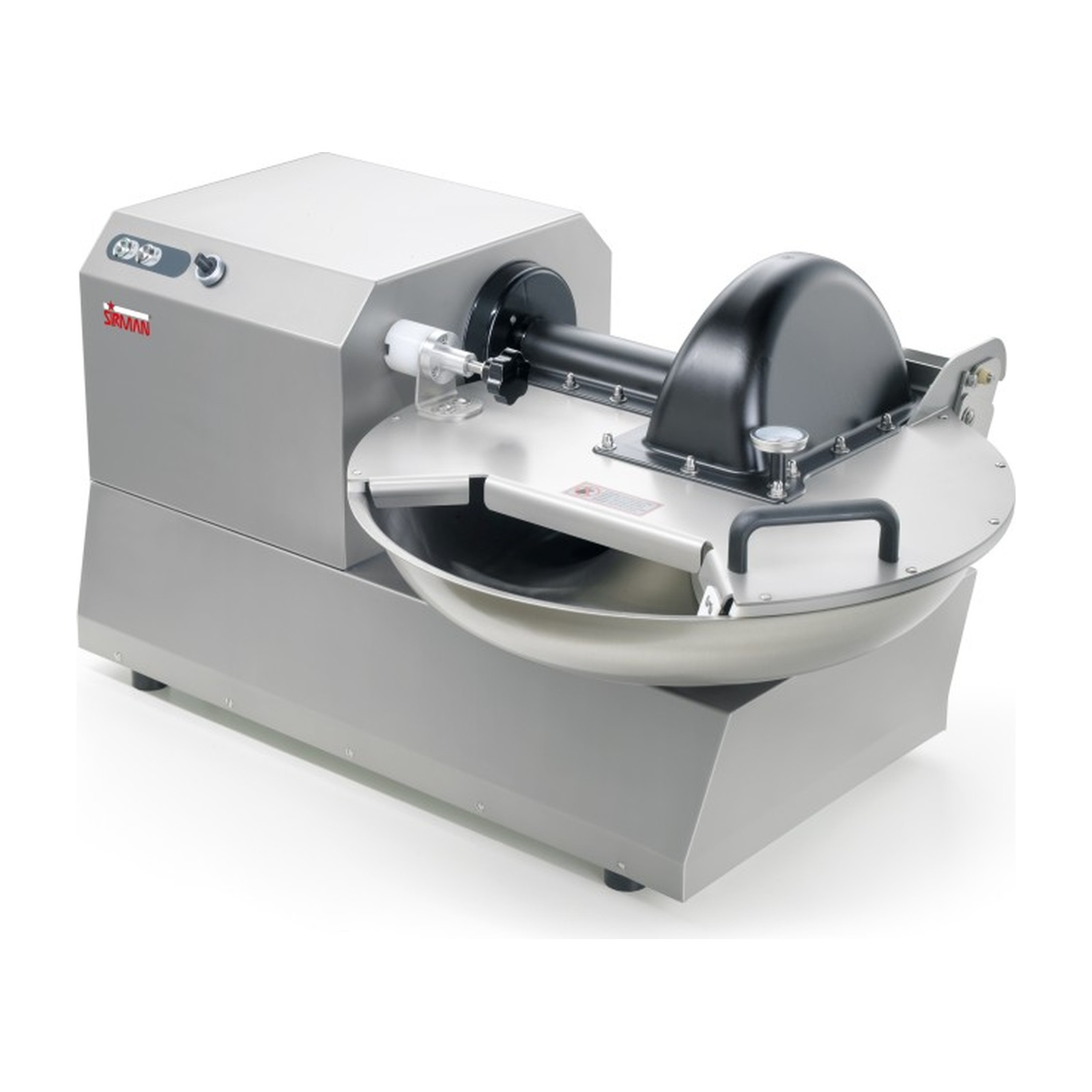

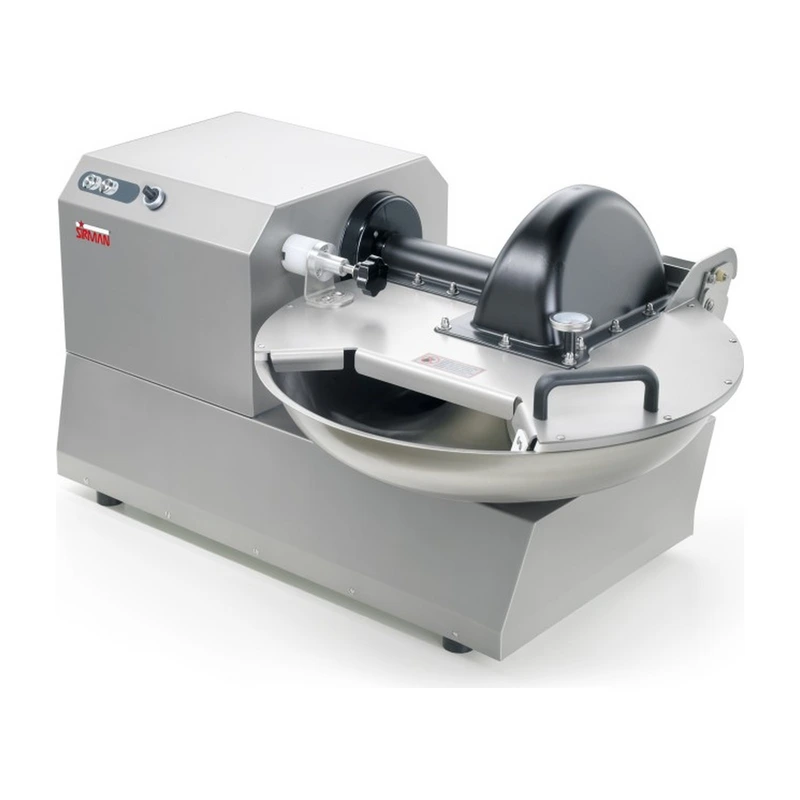

„Sirman“ Katana 20 VV — a 20 L horizontal cutter for production

The largest model in the range — production capacity with stepless speed control.

A 20 L rotating AISI 304 bowl and a 2,387 W motor are built for continuous production loads — a meat processing room, sausage production, high-volume catering.

The Katana 20 is supplied only as the VV version with an inverter: speed is steplessly variable across 600–2,600 rpm. At low speed you gently fold seasoning into a finished mass; at high speed you reach a fine emulsion. The same machine is also offered with the Industria 4.0 data interface (VV EL) for connecting it to production monitoring systems — choose the variant in the Model field.

Despite the 20 L bowl, the machine runs from an ordinary 230 V single-phase supply — no three-phase connection required.

Horizontal bowl cutter „Sirman“ Katana 20 VV

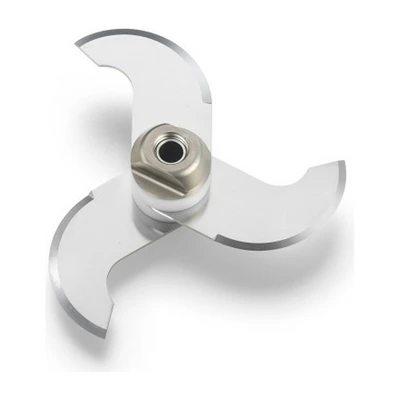

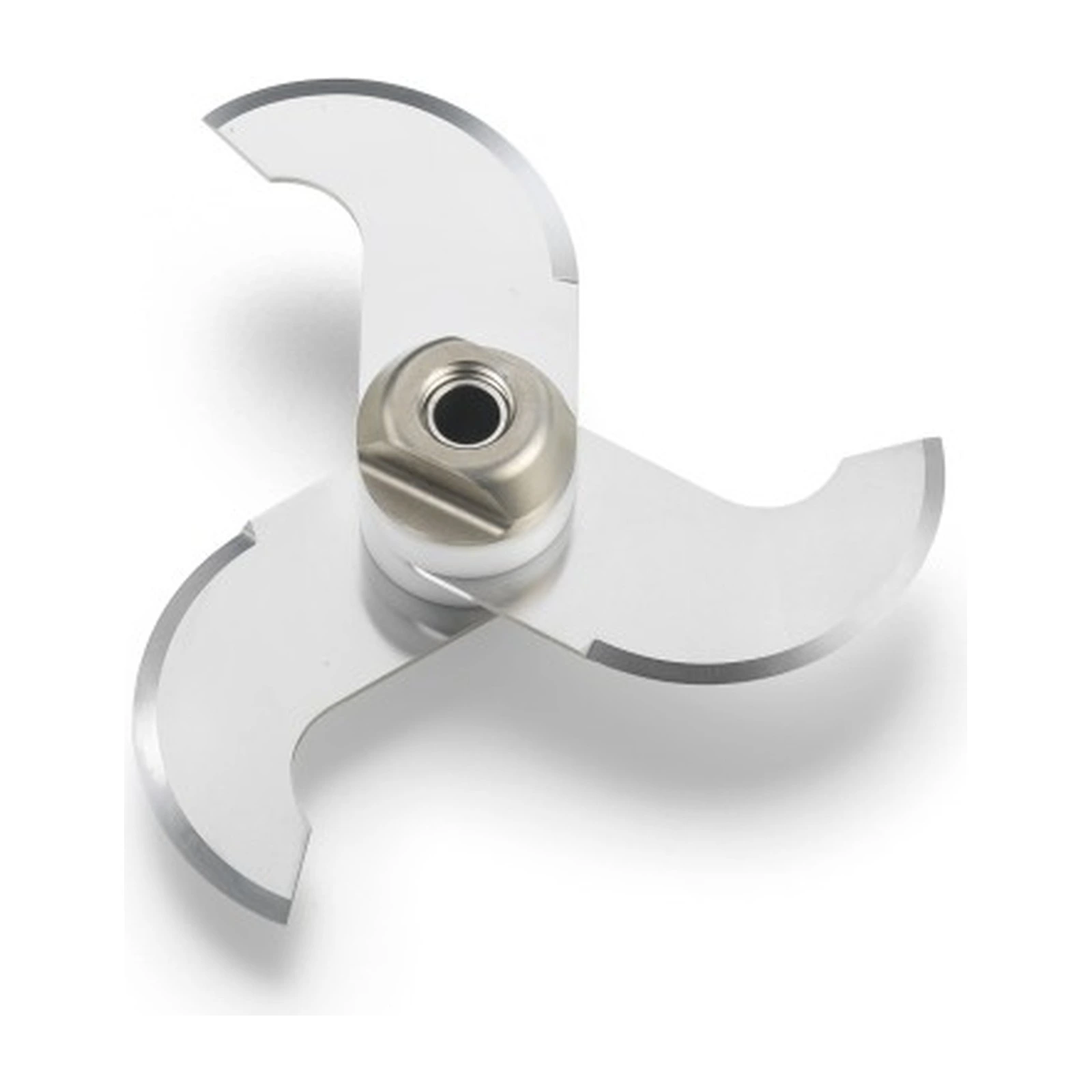

Three-blade hub, removable without tools

A three-blade hub is supplied as standard and can be reconfigured to two blades when a coarser texture is required. The hub comes off without tools, so changing blades and cleaning takes a minute.

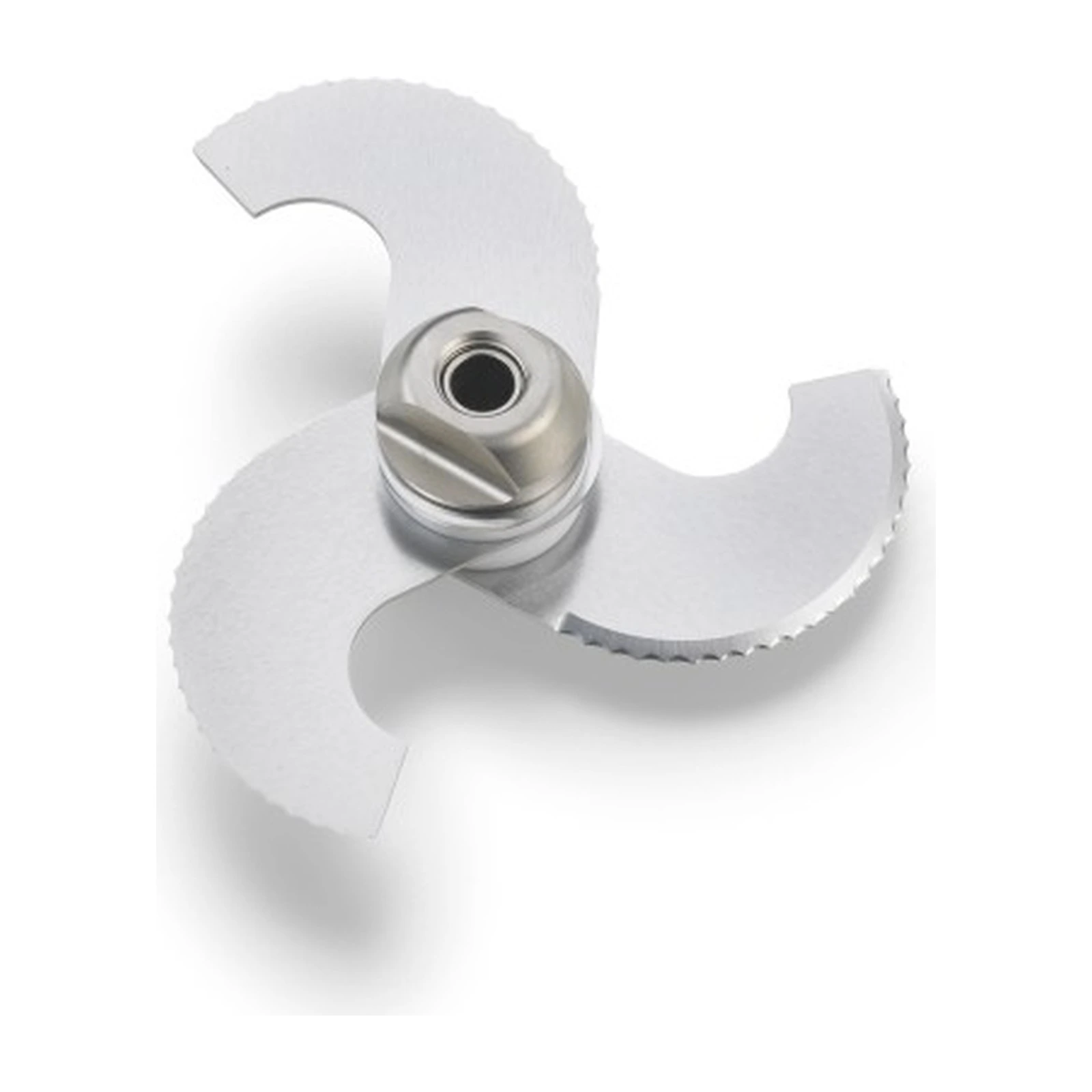

For special work the manufacturer offers hubs with blunted, serrated or unsharpened blades — from finely emulsified forcemeat to coarse chopping or plain mixing.

Three-blade hub, removable without tools

Entirely AISI 304 stainless steel

Body, bowl and lid are made of AISI 304 stainless steel — the material meat processing hygiene rules call for, and one that takes daily washdown with aggressive detergents without complaint.

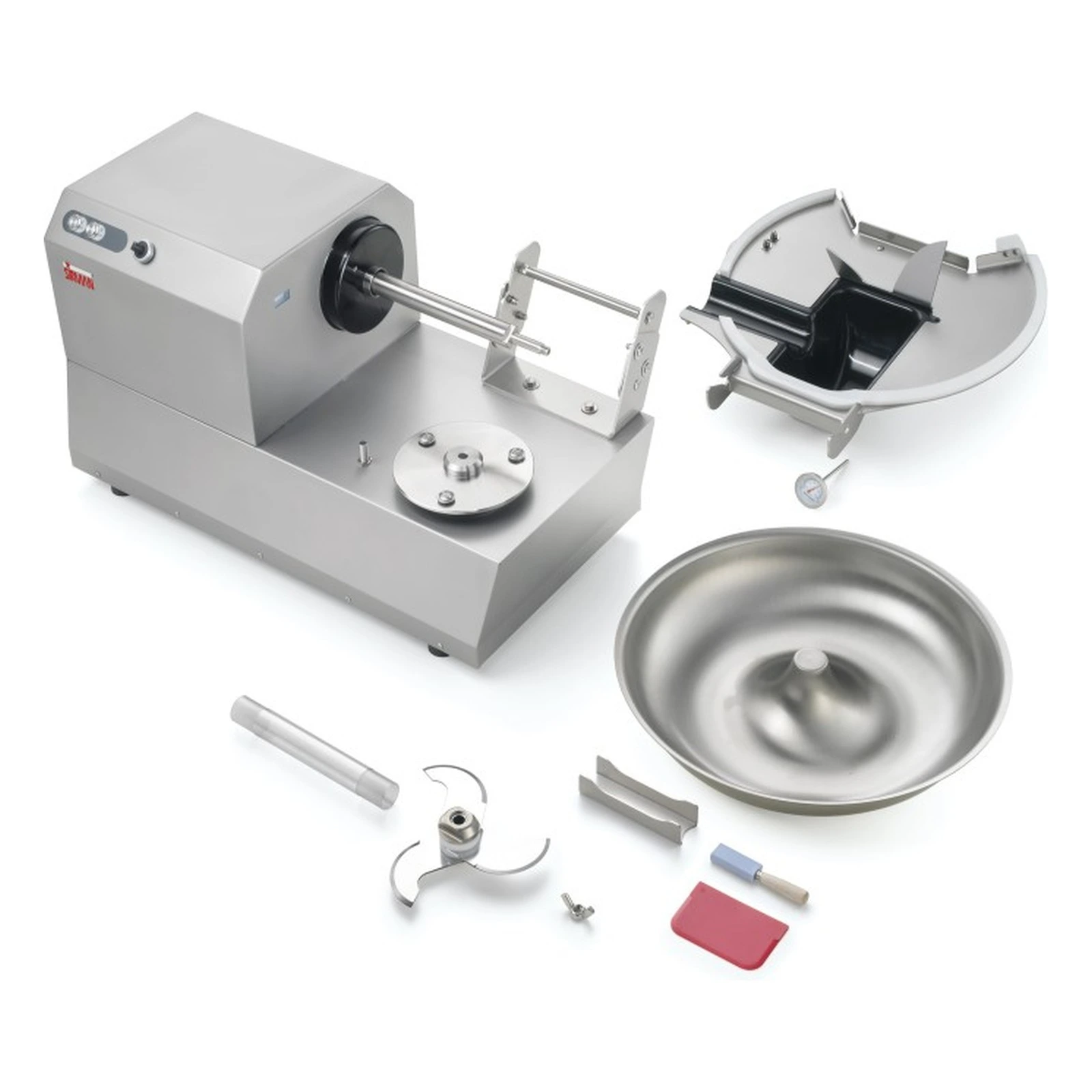

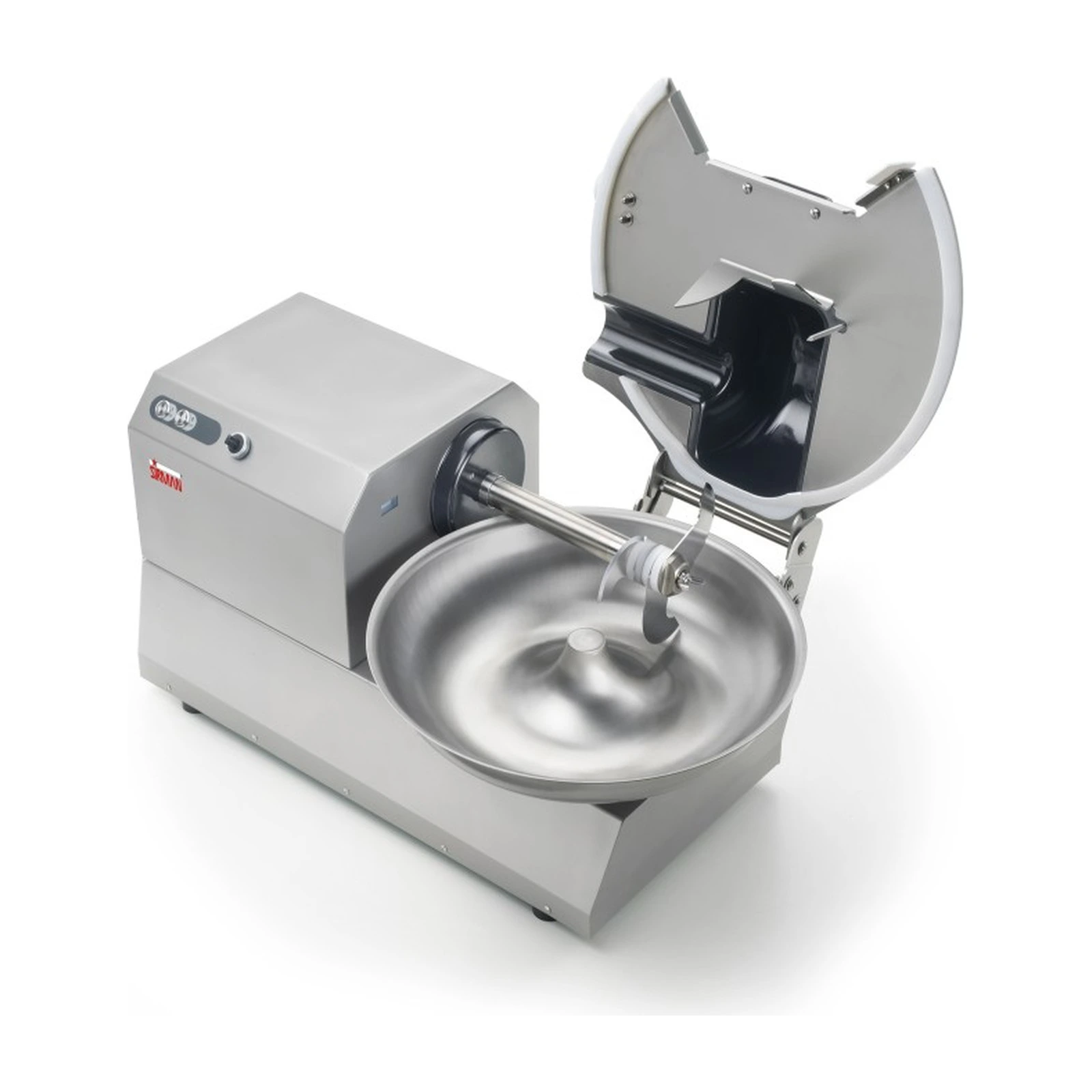

Bowl and lid are removable without tools, and the shaft has reinforced protection against liquid infiltration — the assembly that fails most often on horizontal cutters. Controls are stainless steel buttons rated IP 67.

Entirely AISI 304 stainless steel

Installation options

The cutter sits on a worktop as standard. Adjustable feet or stainless steel legs with lockable wheels are available to order, turning the machine into a free-standing unit that is easy to roll aside for cleaning.

Wheeled legs are particularly useful in a production room where floors are washed daily and equipment has to be pulled away from the wall.

Installation options

Technical specifications

Power2,387 W (3.25 hp)
Voltage230 V / 50 Hz, single phase
Motorasynchronous, ventilated
Bowl capacity20 L
Blades3 (configurable to 2)
Speed600–2,600 rpm (variable)
Speed controlstepless, inverter driven
Dimensions (W × D × H)1,013 × 822 × 945 mm (height with lid raised)
Working height507 mm
Net weight92 kg
Gross weight111.5 kg
Shipping dimensions1,000 × 1,200 × 800 mm
BodyAISI 304 stainless steel
Bowlremovable, AISI 304 stainless steel
Lidstainless steel with high-resistance Tritan hood
Controlsstainless steel buttons, IP 67
Safetyinterlocking lid, reinforced shaft protection against liquids
Manufacturer code40795152
Made inItaly
Bowl cutter
Manufacturer Sirman
Model Katana 20 VV / Katana 20 VV EL
Manufacturer code 40795152 (VV) / 40795162 (VV EL)
Bowl capacity 20 L
Power 2,387 W (3.25 hp)
Voltage 230 V / 50 Hz, single phase
Speed 600–2,600 rpm (variable)
Blades 3 (configurable to 2)
Speed control stepless, inverter driven
Motor asynchronous, ventilated
Dimensions (W × D × H) 1,013 × 822 × 945 mm (height with lid raised)
Working height 507 mm
Net weight 92 kg
Body AISI 304 stainless steel
Bowl removable, AISI 304 stainless steel
Lid stainless steel with high-resistance Tritan hood
Controls stainless steel buttons, IP 67
Safety interlocking lid, reinforced shaft protection against liquids
Made in Italy
