Countertop pitcher and glass rinser „Celli“ 300 × 180 × 30 mm

„Celli“ 62367 — countertop pitcher and glass rinser

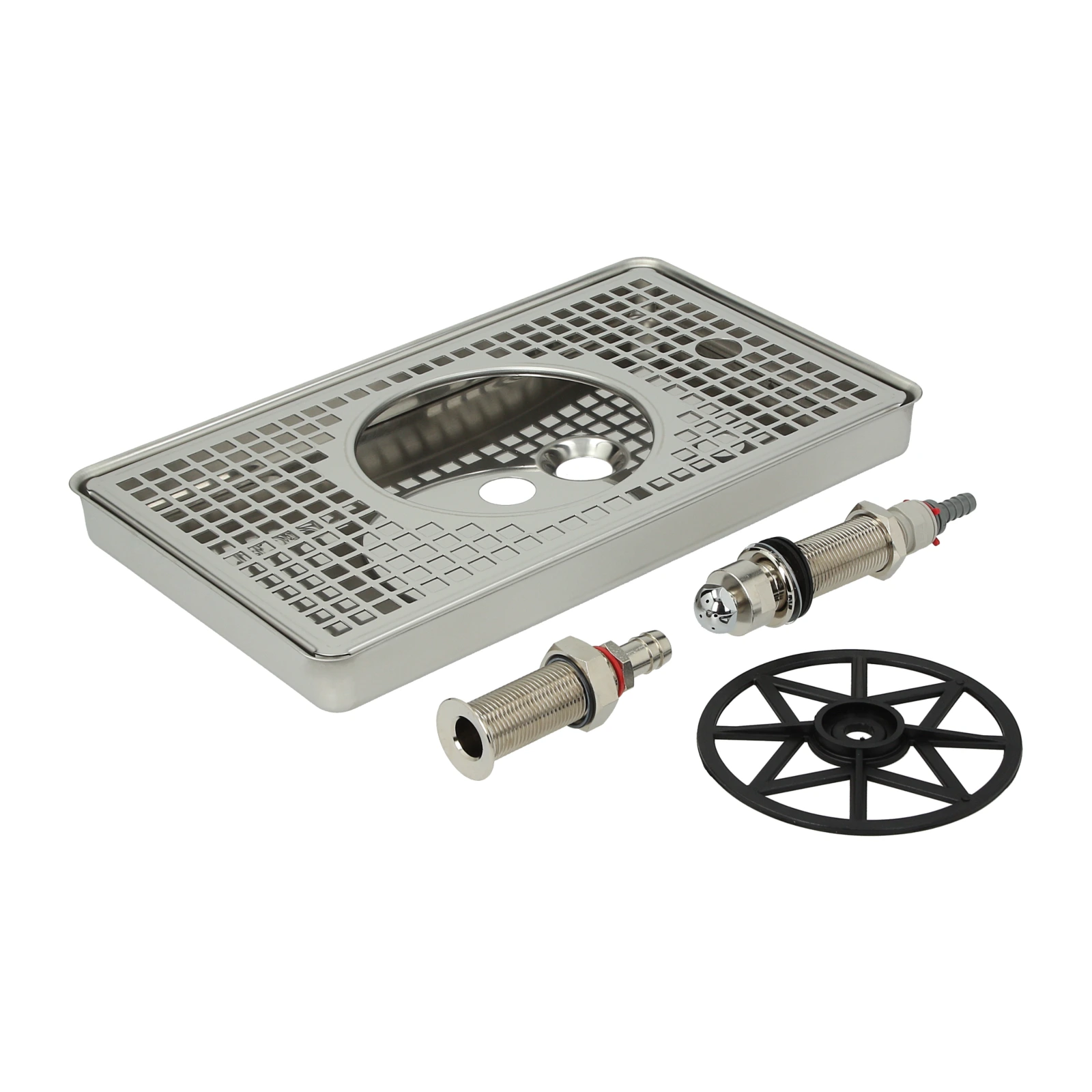

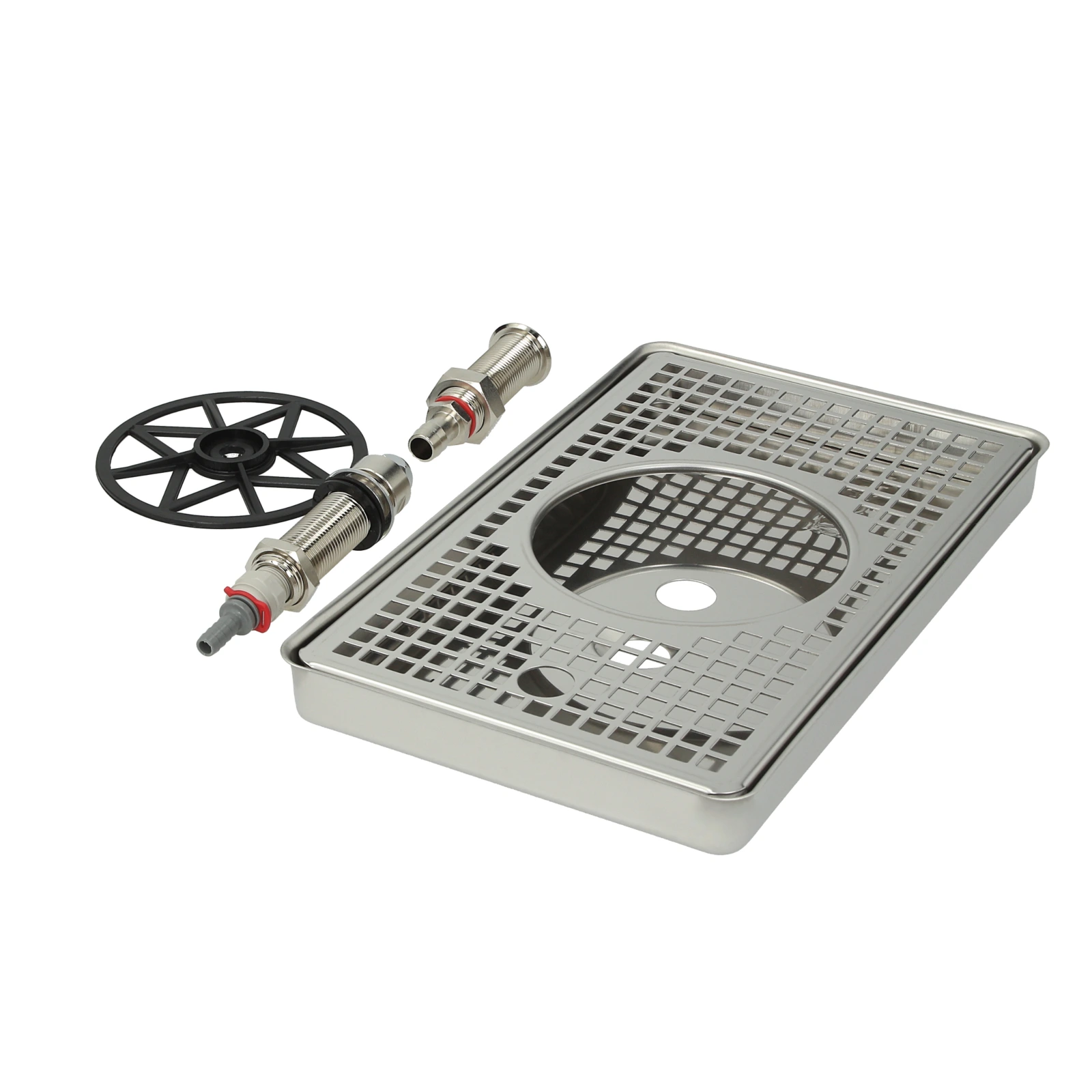

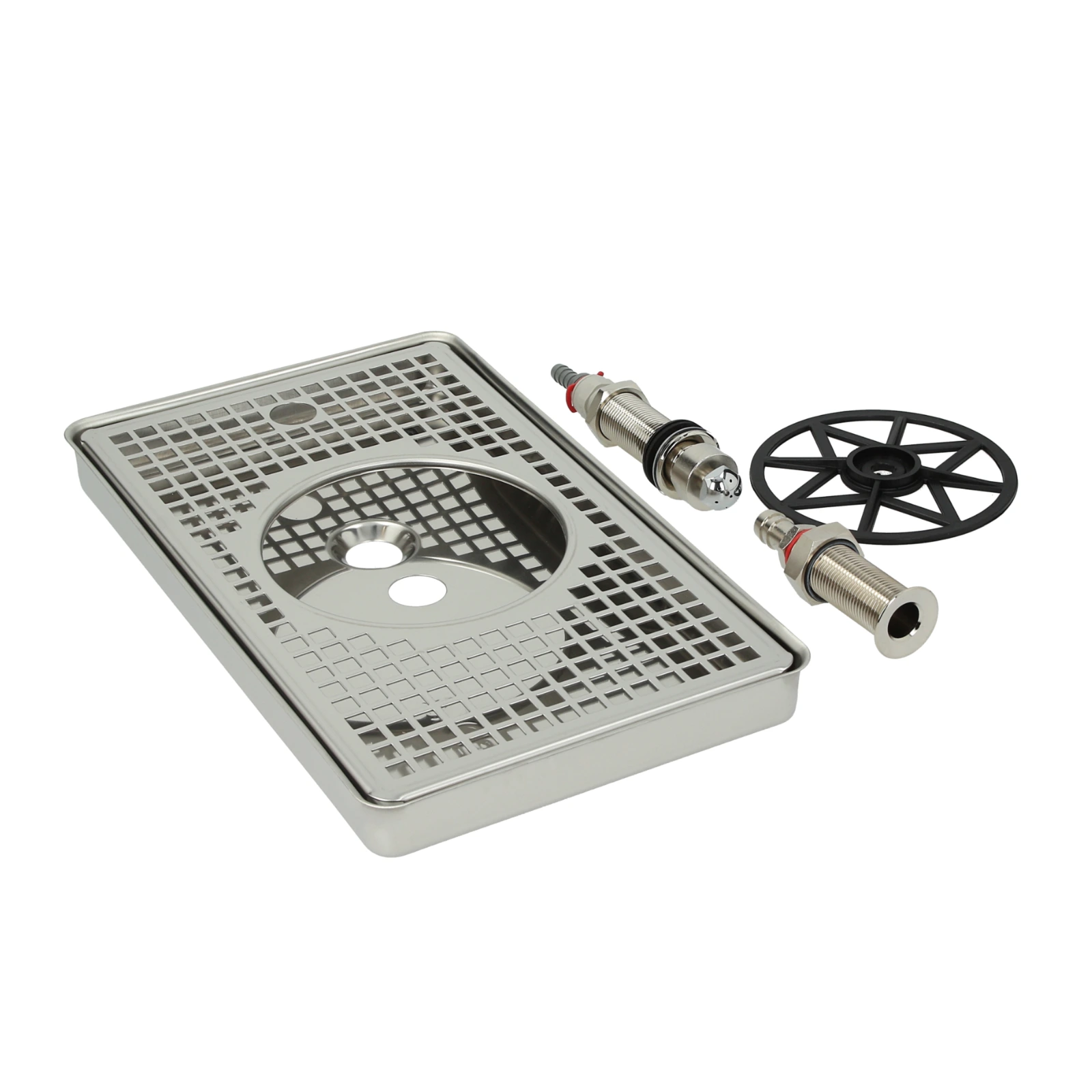

Stainless steel drip tray, 300 × 180 × 30 mm, with grid, glass fountain and drain fitting.

Turn a glass or milk pitcher upside down, set it on the fountain’s star-shaped holder and press lightly: a jet of water rinses the inside. A bartender wets and chills a glass just before pouring a beer; a barista rinses the milk pitcher between drinks. Lift the glass and the jet stops; the water runs through the drain fitting to the waste pipe.

Components

• Drip tray and grid — stainless steel. The tray collects drips and rinse water, and glasses can stand on the grid.

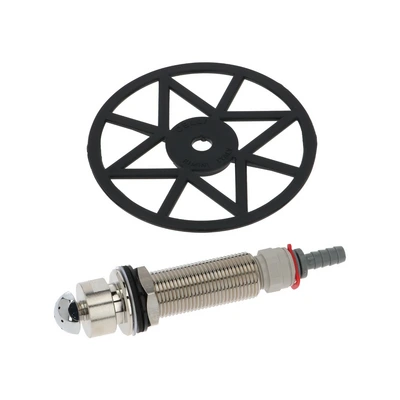

• Glass fountain „Celli“ 31402 — chrome-plated brass, in the centre of the tray. The glass rests on a star-shaped holder, 115 mm in diameter.

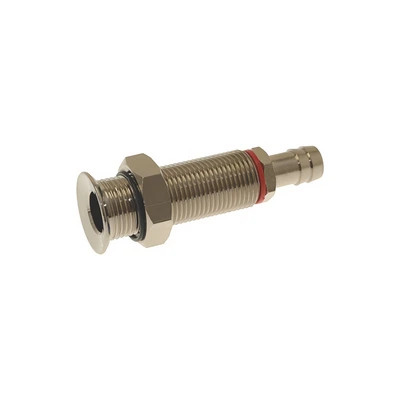

• Drain fitting „Celli“ 31004 — next to the fountain; the drain hose connects to it.

We also sell the fountain and the drain fitting separately as spare parts: glass fountain 31402 and drain fitting 31004.

Which rinser to choose

To set the tray into the worktop, choose the built-in „Celli“ 31578. Where space is tight, choose the built-in 175 × 162 mm milk pitcher rinser.

Connection and installation

• Water: the fountain is connected to the water supply with a hose pushed onto its 8.8 mm hose barb.
• Drain: a hose pushed onto the 14.5 mm barb of the drain fitting runs to the waste pipe.
• Worktop: the fountain and drain bodies (G 5/8″ thread) are fixed through the bottom of the tray and protrude below it, so the worktop needs holes under the tray for the bodies and hoses.

Technical specifications
