Built-in milk pitcher rinser 175 × 162 × 115 mm

Built-in milk pitcher rinser

A drop-in bowl with a glass fountain for a 155 × 140 mm worktop cut-out.

Turn a milk pitcher upside down, set it on the glass fountain and press lightly: a jet of water rinses the inside and runs to the drain. Baristas rinse the pitcher this way before the next drink.

Components

• Bowl — with a 175 × 162 mm rim that rests on the worktop.

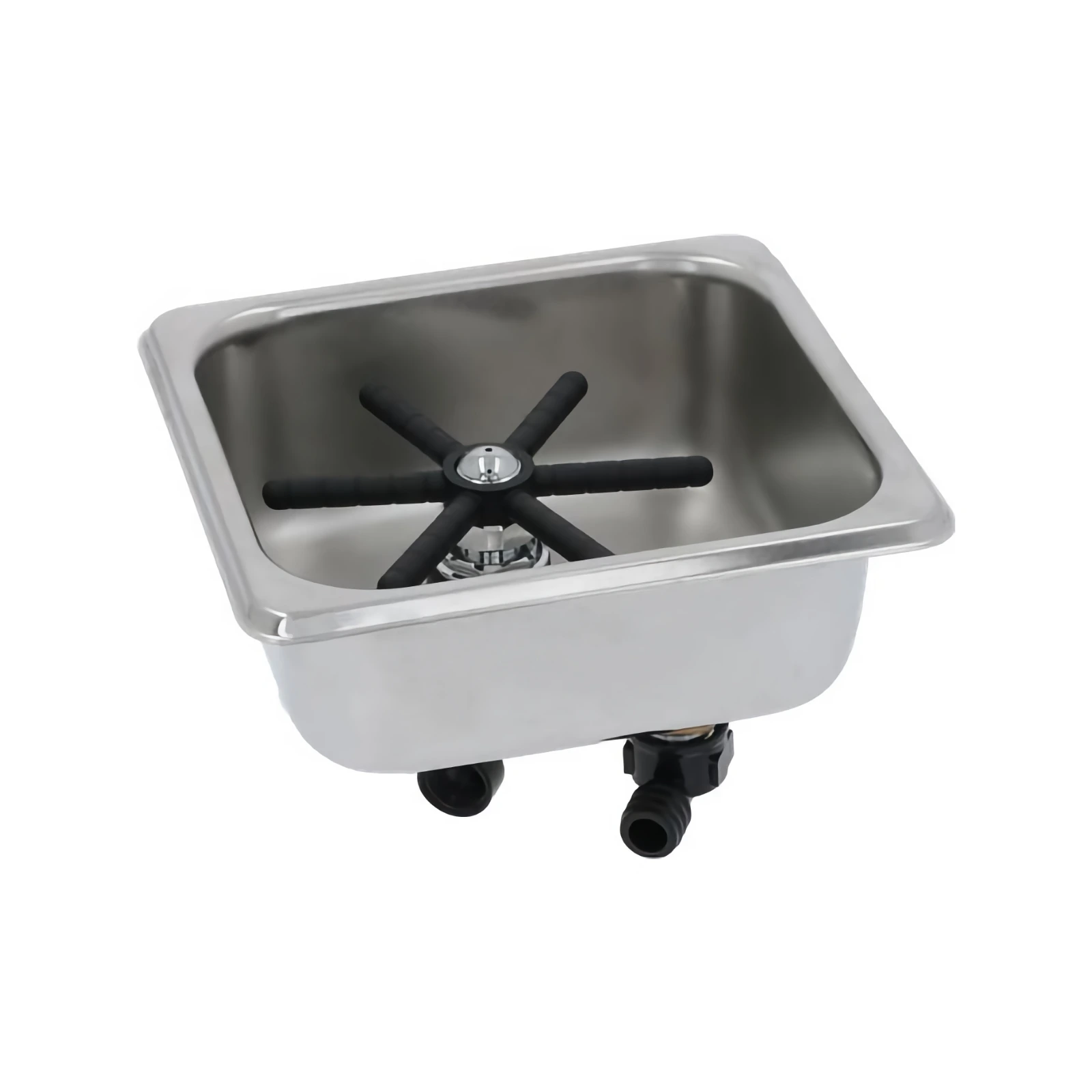

• Glass fountain — the rinse nozzle in the centre of the bowl, with a six-arm holder.

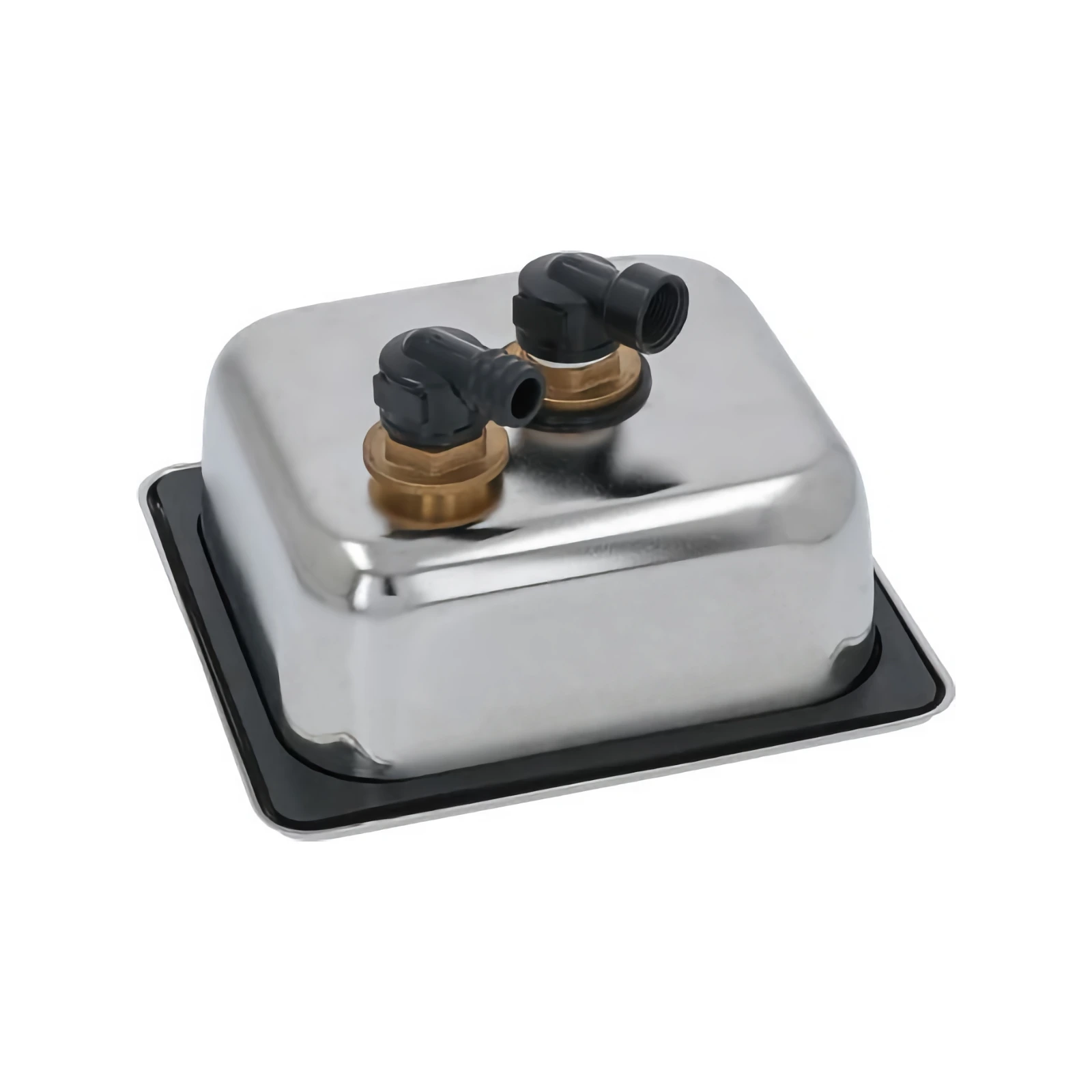

• Connections — under the bowl: cold water and drain.

Which rinser to choose

If you also need a drip tray with a grid around the glass fountain, choose the built-in „Celli“ 31578 or the countertop „Celli“ 62367.

Connection and installation

• Worktop: the bowl needs a 155 × 140 mm cut-out. The rinser is 115 mm high; leave room below the worktop for the bowl, connections and hoses.
• Water: cold water supply, 3/8″ John Guest fitting.
• Drain: 1/2″ connection to the waste pipe.

Technical specifications
