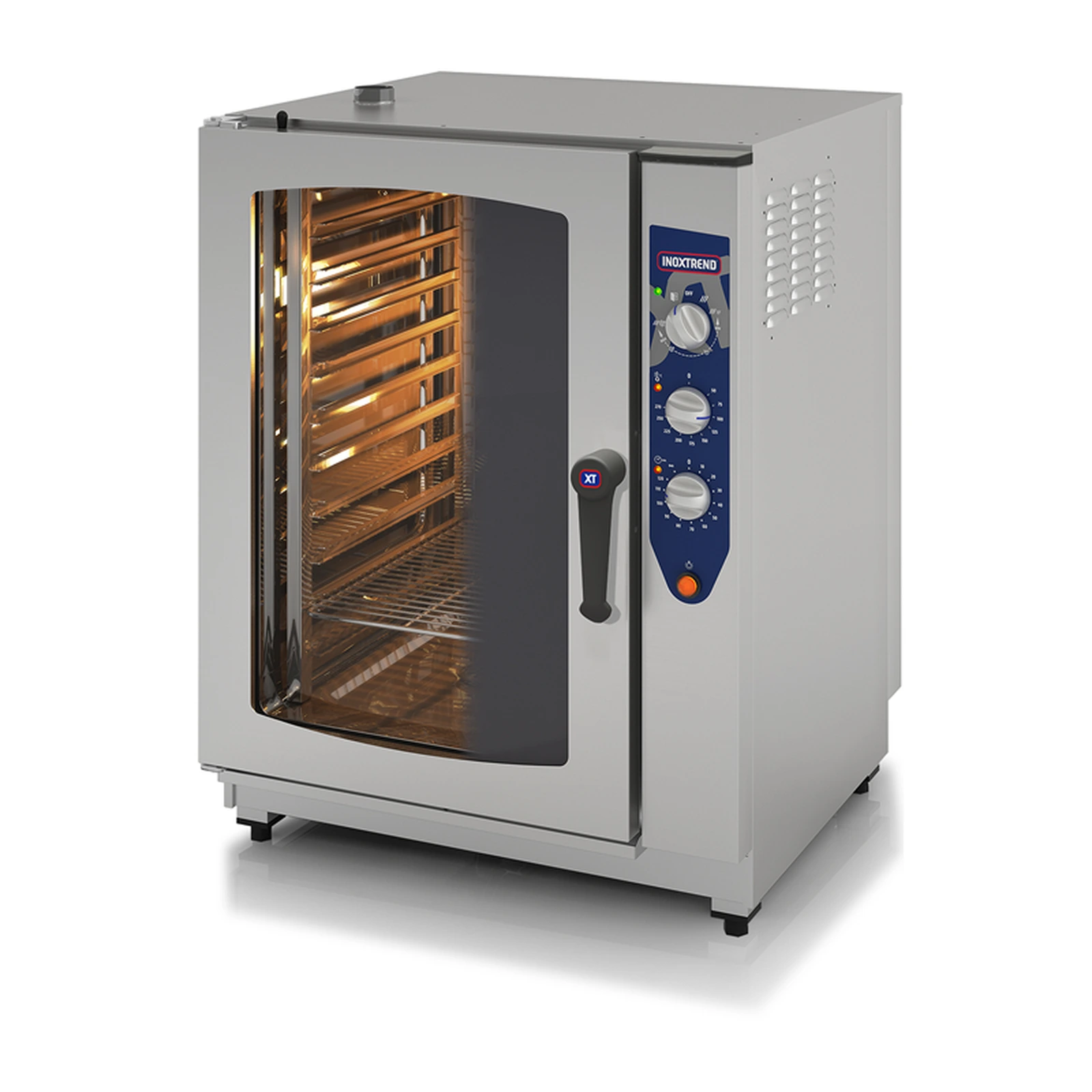

Convection oven "Inoxtrend" XT Compact CUA-111E (11xGN1/1)

Konvekcinė krosnis INOXTREND XT Compact CUA-111E
Talpa: 11x1/1GN (530x325mm) arba 22x1/2GN (265x325 mm)
Tarpas tarp kreipiančiųjų (kepimo skardų laikiklių): 67 mm
Patogiam plovimui išimamos kreipiančiosios
Galia: 16,4 kW/ 400 V (trifazė)
Išmatavimai: 800x800x1100 mm
Svoris: 145 kg
Rankinis elektromechaninis valdymas

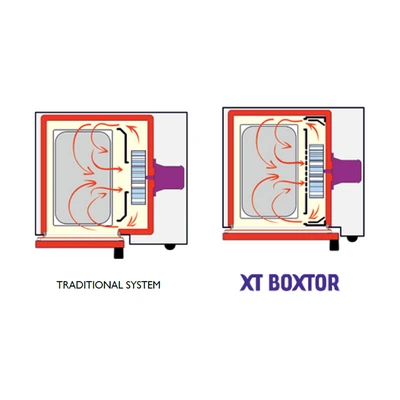

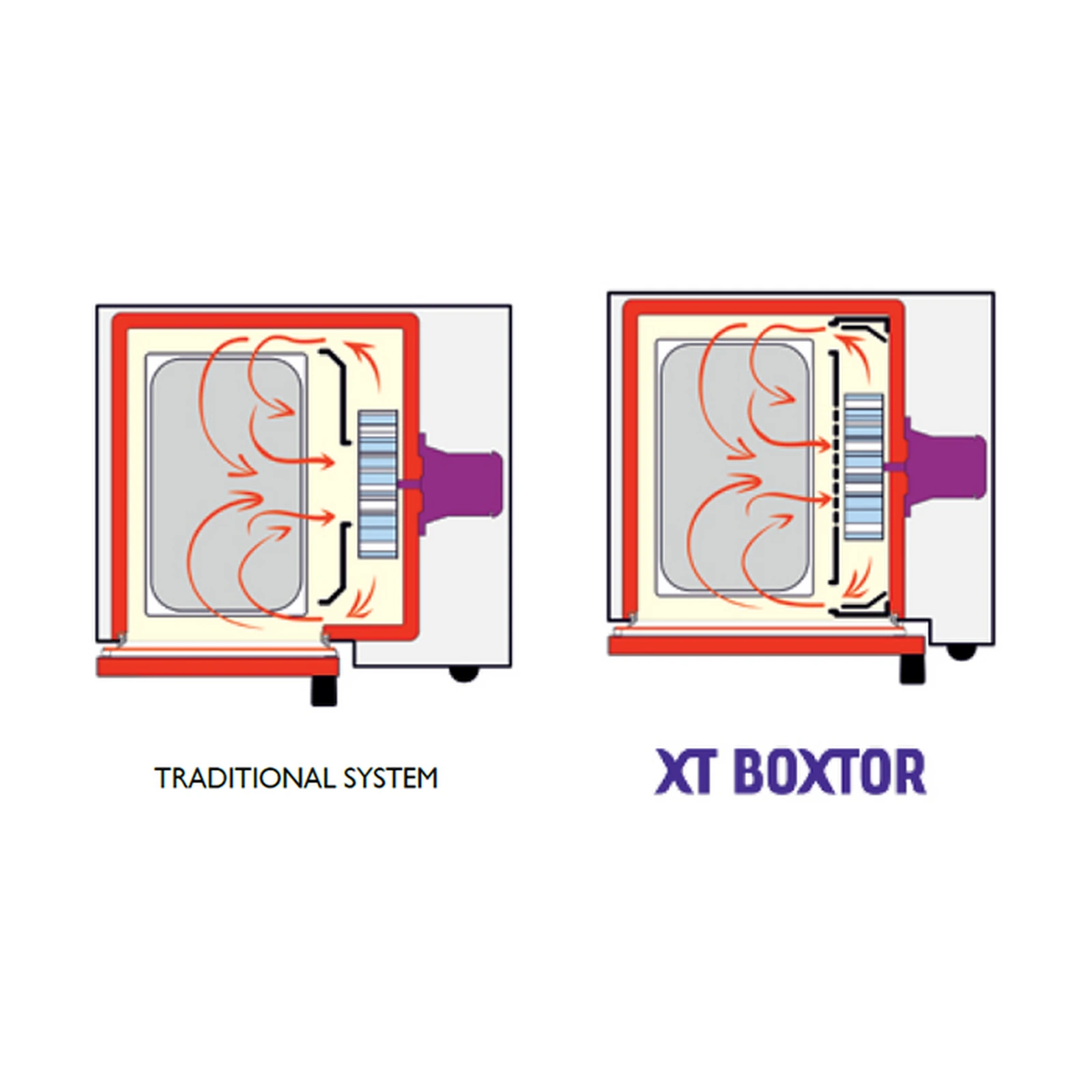

Patentuota kepimo sistema XT BOXTOR

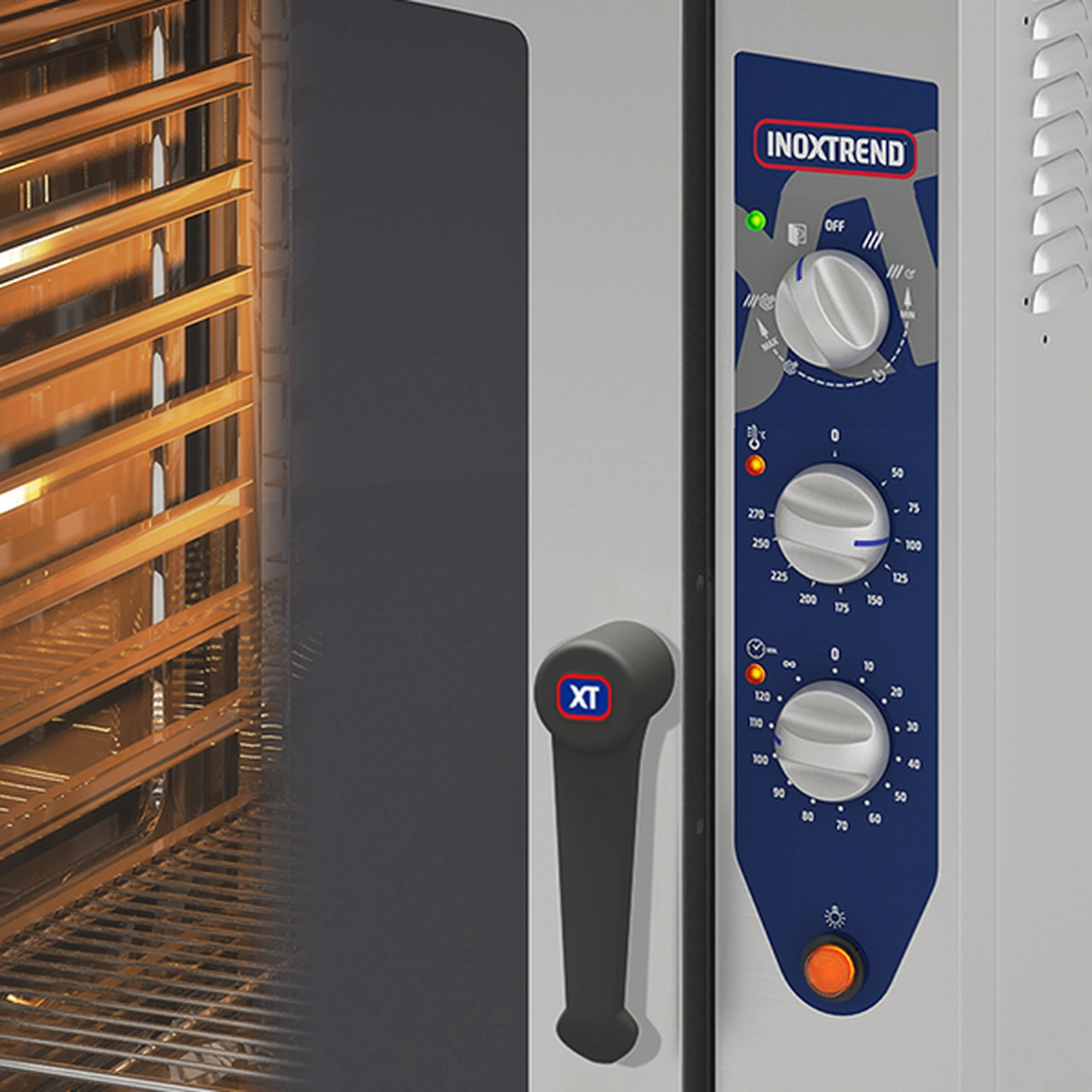

Valdymo panelė:Konvemcin
1 rankenėlė - kameros atvėsinimas, įjungimas, konvekcija (30-270 C),
kombinuotas kepimas: konvekcija + garas didėjančiai pagal nustatymą (30-270 C),
regeneracija, pasterizacija, lėtas kepimas
2 rankenėlė - kepimo temparatūros nustatymas (0-270 C)
3 rankenėlė - kepimo laiko nustatymas (0-120 min) + begalinis kepimas
4 mygtukas - apšvietimo įjungimas
Halogeninis apšvietimas
Automatinė saugi viršlėsgio iš kameros išleidimo sistema
Ventiliatoriaus sparnuotės pagamintos iš nerūdijančio plieno AISI 316 (medic. plienas)
Ventiliatoriaus variklis su autoreversu
Kaitinimo elementai specialiai dengti nerūdijančiu plienu INCOLOY 800
Kepimo kamera su užapvalintais kampais iš nerūdijančio plieno AISI 304
Apsauga nuo apsideginimo (dvigubas grudintas durų stiklas)
Signalizacija - baigus kepimo programą
Automatinis greitas kameros atvėsinimas atidarius krosnies duris
Versija su dujiniu kaitinimu naudoja originalias INOXTREND sistemas XT PREMIXER, XT FORCE
Italija.


specifikacija
