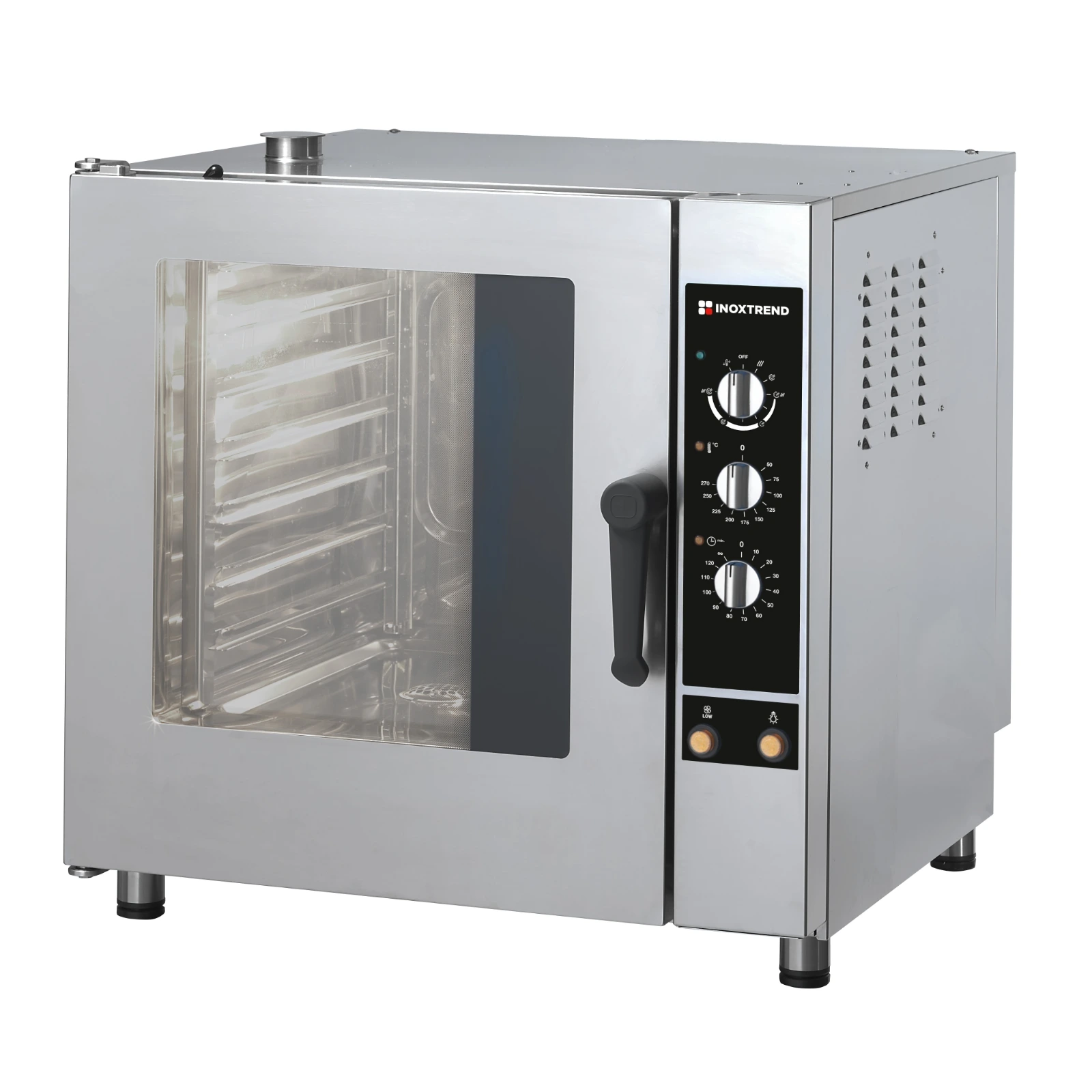

Convection oven „Inoxtrend“ Professional CDA-107E (7xGN1/1)

A combi oven for 7 GN 1/1 trays

The „Inoxtrend“ Professional CDA-107E is an electric combi oven: you bake with hot air, cook with steam or combine the two, setting the mode, temperature and time with three knobs.

The chamber takes 7 GN 1/1 (530 × 325 mm) or 14 GN 1/2 (265 × 325 mm) trays at 67 mm spacing; the oven is sized for about 80 meals.

Key features

  • Indicator lights show that the oven is on, the chamber is heating and the timer is running, and a buzzer sounds when the time is up, so every dish comes out right on time.
  • The fan has two speeds (button H selects the lower one) and reverses direction automatically, so food cooks evenly on every level.
  • Before the next dish, you cool the chamber down quickly with the door open, and the steam vent valve works manually or automatically.
  • The watertight chamber with rounded corners is easy to keep clean, and the U-shaped tray runners lift out easily.
  • The door with double tempered glass opens to 150°, and the ergonomic double-latch handle opens it from either side.
  • Button L switches on the chamber light, and an automatic safety system releases overpressure from the chamber.

Newer model

If you want a newer model, choose the „Inoxtrend“ ProEvo Plus PPDA 107E: from 1 January 2027 it replaces the CDA-107E. Capacity (7 × GN 1/1), power consumption (8.3 kW) and knob controls are the same, and the new oven adds easier-to-use knobs, a double-grip handle and LED lighting.

Installation requirements

  • Electricity: 380–415 V 3N~, 50 Hz, 8.3 kW (chamber heating 8.0 kW, fan motor 250 W), current draw 12 A, supply cable 5 × 2.5 mm².
  • Water: Ø ¾″ connection, pressure 1.5–2.5 bar; hardness 4–12 °fH, conductivity 50–2,000 µS/cm, chlorine (Cl₂) below 0.2 mg/l, chlorides below 150 mg/l. For harder water, fit an automatic „Aquaphor“ S550 or S800 softener or a „DVA“ LT12 softening filter between the mains and the oven.
  • Drain: chamber drain, outer diameter 40 mm.
  • Size and siting: 797 × 812 × 817 mm (W × D × H; depth including the handle), weight 110 kg.

Accessories

Available separately: the DLE hand shower, the FT 107C grease filter, the S 61C stand (70 cm high) and the CRGR 61C tray runners.

Technical specifications

Manufacturer„Inoxtrend“ (Italy)
SeriesProfessional
ModelCDA-107E
Capacity7 × GN 1/1 or 14 × GN 1/2
Tray loadinglengthwise
Shelf spacing67 mm
Steam generationdirect steam injection

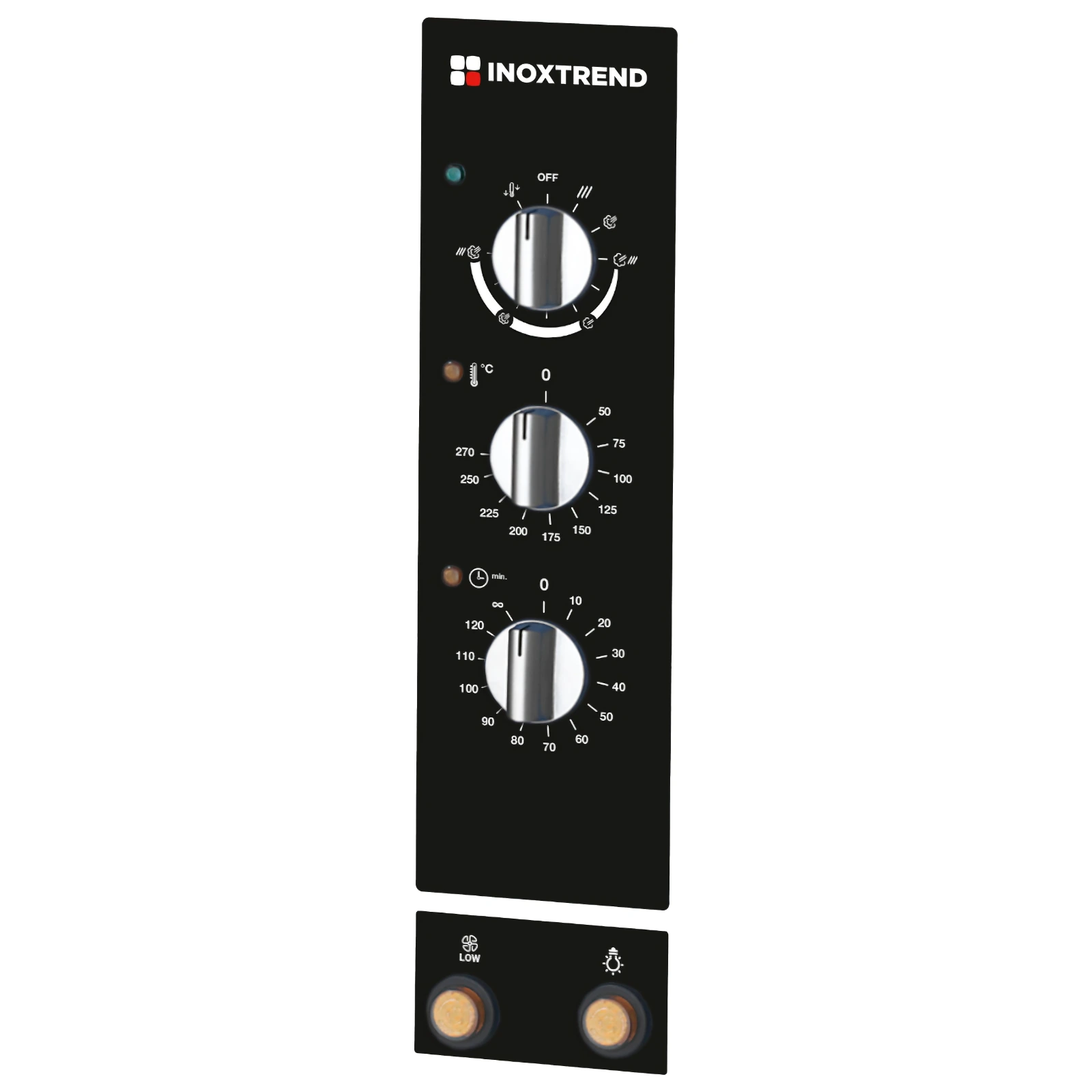

Control panelanalogue: knobs for mode, temperature and timer; chamber light (L) and reduced fan speed (H) buttons; power, heating and timer indicator lights
Modesconvection 50–270 °C, steam 50–100 °C, combi 50–270 °C
Timer1–120 min or continuous
Ventilation2 speeds with auto-reverse
Chamber and housingwatertight AISI 304 chamber with rounded corners, welded on the outside, ceramic-fibre insulation; AISI 430 outer panels and base
Heating elementsIncoloy 800 alloy, on the right side of the chamber
Fanstainless steel
Doordouble tempered glass; opens to 150°; AISI 304 hinges
Protection ratingIPX5
Power consumption8.3 kW
Power supply380–415 V 3N~, 50 Hz
Current12 A
Supply cable5 × 2.5 mm²
Water connectionØ ¾″, pressure 1.5–2.5 bar
Drainouter diameter 40 mm
Dimensions (W × D × H)797 × 812 × 817 mm (depth including the handle)
Weight110 kg
Number of mealsabout 80
Country of originItaly
Combi oven
Manufacturer „Inoxtrend“ (Italy)
Series Professional
Model CDA-107E
Capacity 7 × GN 1/1 or 14 × GN 1/2
Tray loading lengthwise
Shelf spacing 67 mm
Steam generation direct steam injection
Temperature convection 50–270 °C, steam 50–100 °C, combi 50–270 °C
Ventilation 2 speeds with auto-reverse
Control panel analogue: knobs for mode, temperature and timer; chamber light (L) and reduced fan speed (H) buttons; power, heating and timer indicator lights
Door double tempered glass; opens to 150°; AISI 304 hinges
Chamber and housing watertight AISI 304 chamber with rounded corners, welded on the outside, ceramic-fibre insulation; AISI 430 outer panels and base
Heating elements Incoloy 800 alloy, on the right side of the chamber
Power consumption 8.3 kW
Power supply 380–415 V 3N~, 50 Hz
Current draw 12 A
Supply cable 5 × 2.5 mm²
Water connection Ø ¾″, pressure 1.5–2.5 bar
Drain outer diameter 40 mm
Dimensions (W × D × H) 797 × 812 × 817 mm (depth including the handle)
Weight 110 kg
Indicative number of meals about 80
Country of origin Italy
