„Ascaso“ thermoblock gasket I.3096
Add to Cart
Ascaso
Spanish manufacturer • Since 1962
Barcelona's „Ascaso“ makes espresso machines and grinders for people who value quality and good design. The company started out in 1962 making spare parts for espresso machines, and today its hand-built machines are sold in more than 95 countries.
MB „Restoranų įranga“ is the official distributor of „Ascaso Factory“ S.L.U. in Lithuania.
„Ascaso“ thermoblock gasket I.3096

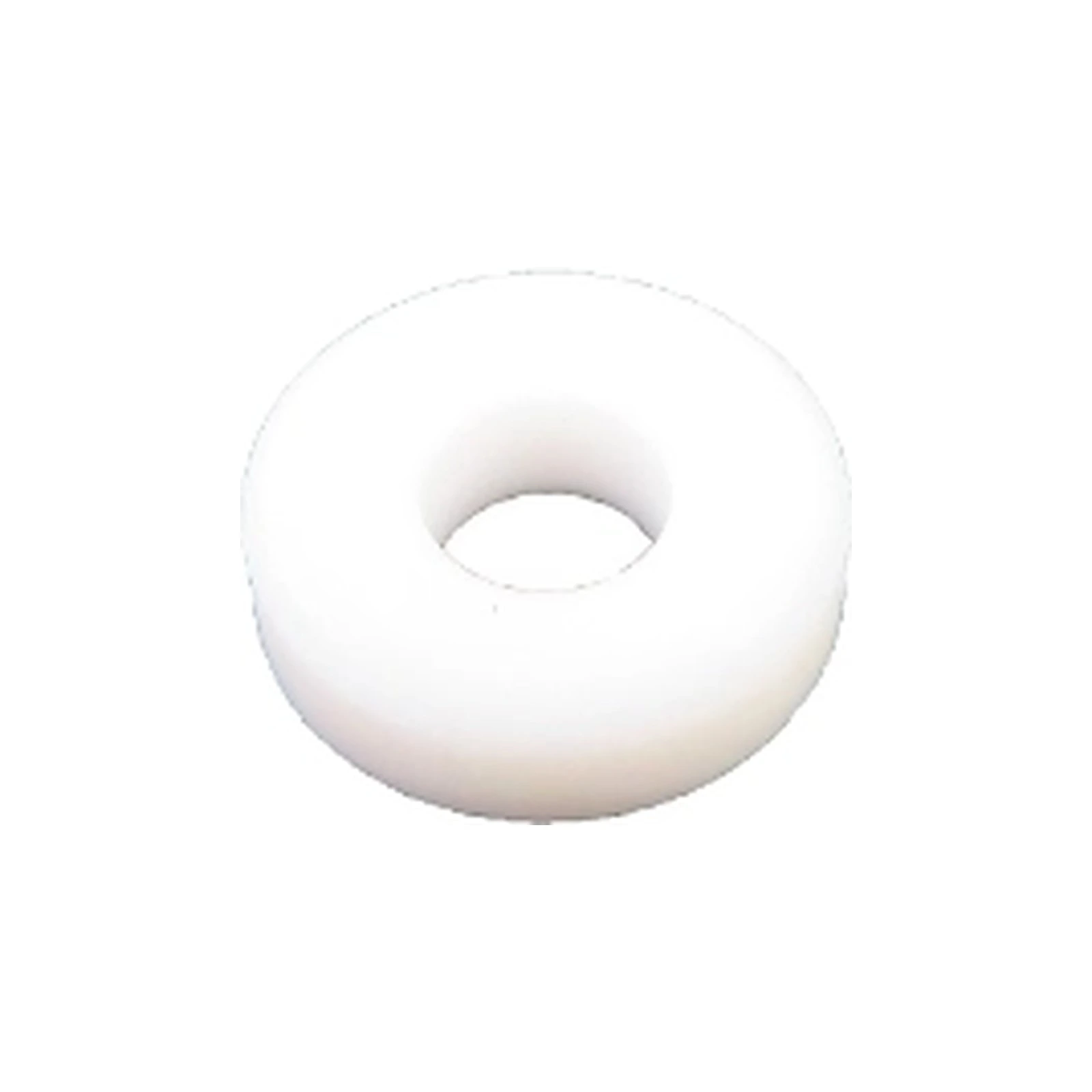

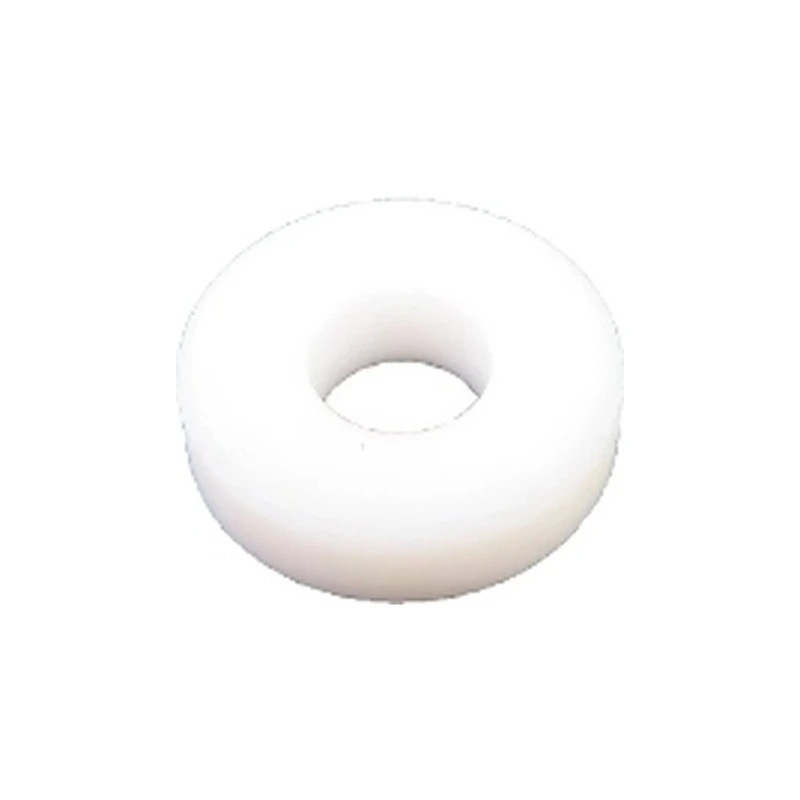

This is an original „Ascaso“ I.3096 thermoblock gasket — a white PTFE (Teflon) washer that seals a thermoblock water connection. The I.2237 and I.2238 thermoblocks each have two water connections, so each needs two gaskets. Gaskets are sold singly, with a minimum order of two.
Fit new gaskets whenever the thermoblock is replaced or its water connections are undone — they seal the connections tight from the start. Replace both gaskets together, as they wear together. The same gasket is also used at other water connections on some „Ascaso“ machines, for example on the pump, the over-pressure valve (OPV) or the boiler.
Technical specifications
| Manufacturer | „Ascaso“ |
|---|---|
| Manufacturer code | I.3096 |
| Type | Thermoblock water connection gasket (flat washer) |
| Dimensions | Ø 8.5 / 3.5 × 2.5 mm (outer / inner diameter × thickness) |
| Material | PTFE (Teflon) |
| Quantity per thermoblock | 2 pcs |
| Sold as | 1 pc (minimum order 2 pcs) |
Fits
| Thermoblocks | „Ascaso“ I.2237 (230 V, product code 41257681) and I.2238 (110 V) |
|---|---|
| Dream series | Dream, Dream ZERO, Dream ONE, Dream PID |
| Arc and Basic | Arc, Basic, Basic ONE |
| Steel series | Steel Uno, Steel Duo, Steel Trio (PROF, PID and Versatile versions) |
| Other models | Bar, Bar KAP, Baby T, Barista T, Big Dream T, Elipse |

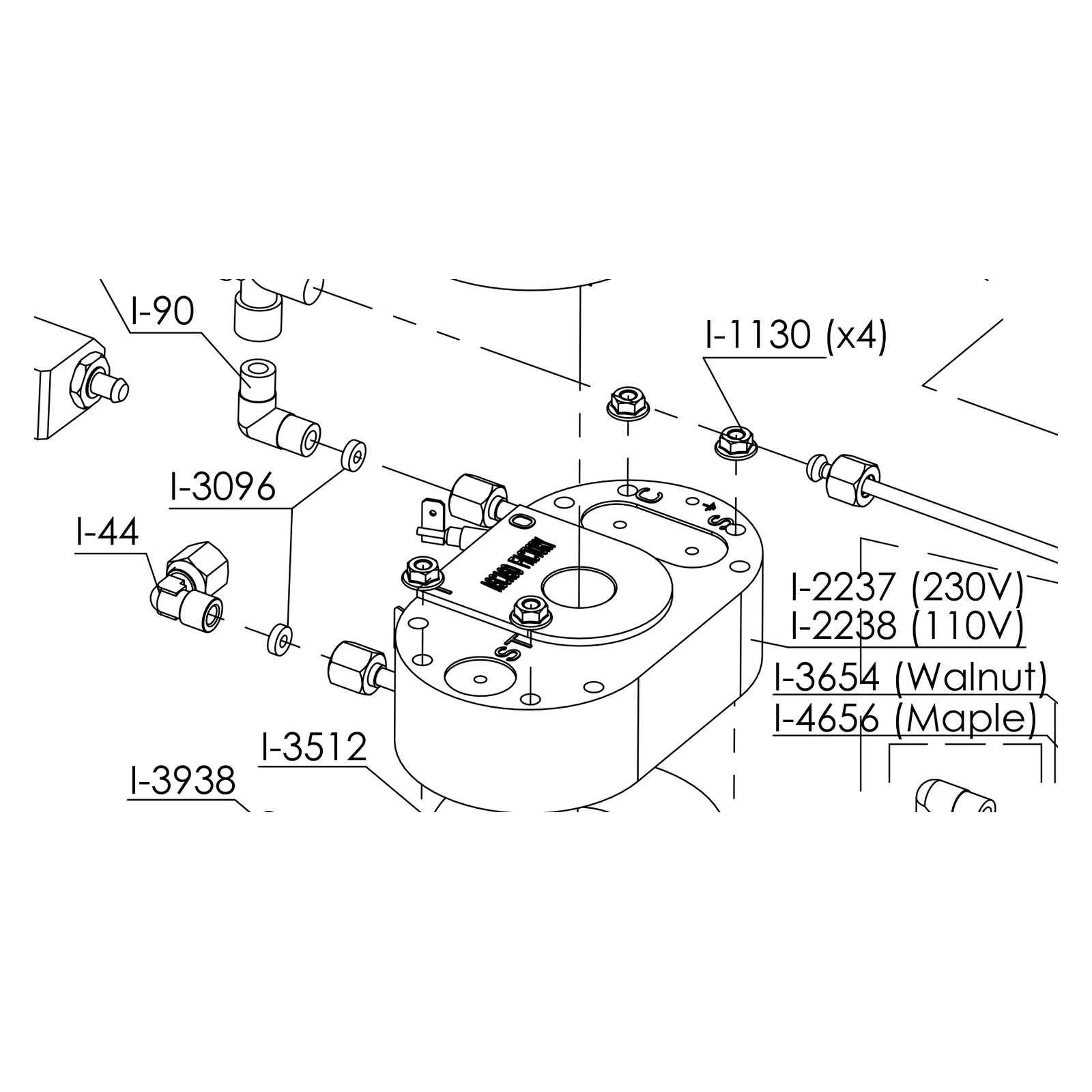

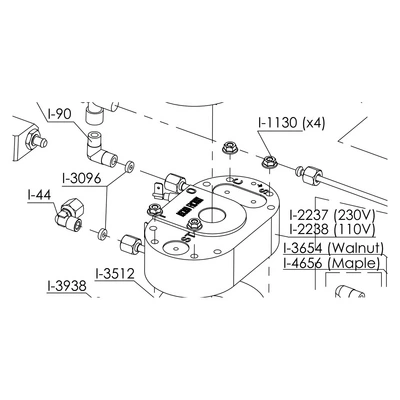

The second product image — an excerpt from the Dream PID parts diagram — shows where the gaskets go on the thermoblock; the full diagram is in the ‘Technical Data Sheet’ tab. The „Ascaso“ I.2237 thermoblock (230 V, product code 41257681) is sold separately.
| Gasket | |
| Manufacturer | „Ascaso“ |
| Manufacturer code | I.3096 |
| Type | Thermoblock water connection gasket (flat washer) |
| Dimensions | Ø 8.5 / 3.5 × 2.5 mm (outer / inner diameter × thickness) |
| Material | PTFE (Teflon) |
| Fits | „Ascaso“ I.2237 (230 V) and I.2238 (110 V) thermoblocks used in Dream, Arc, Basic, Steel, Bar, Baby T, Barista T, Big Dream T and other espresso machines (full list in the description) |
